270050

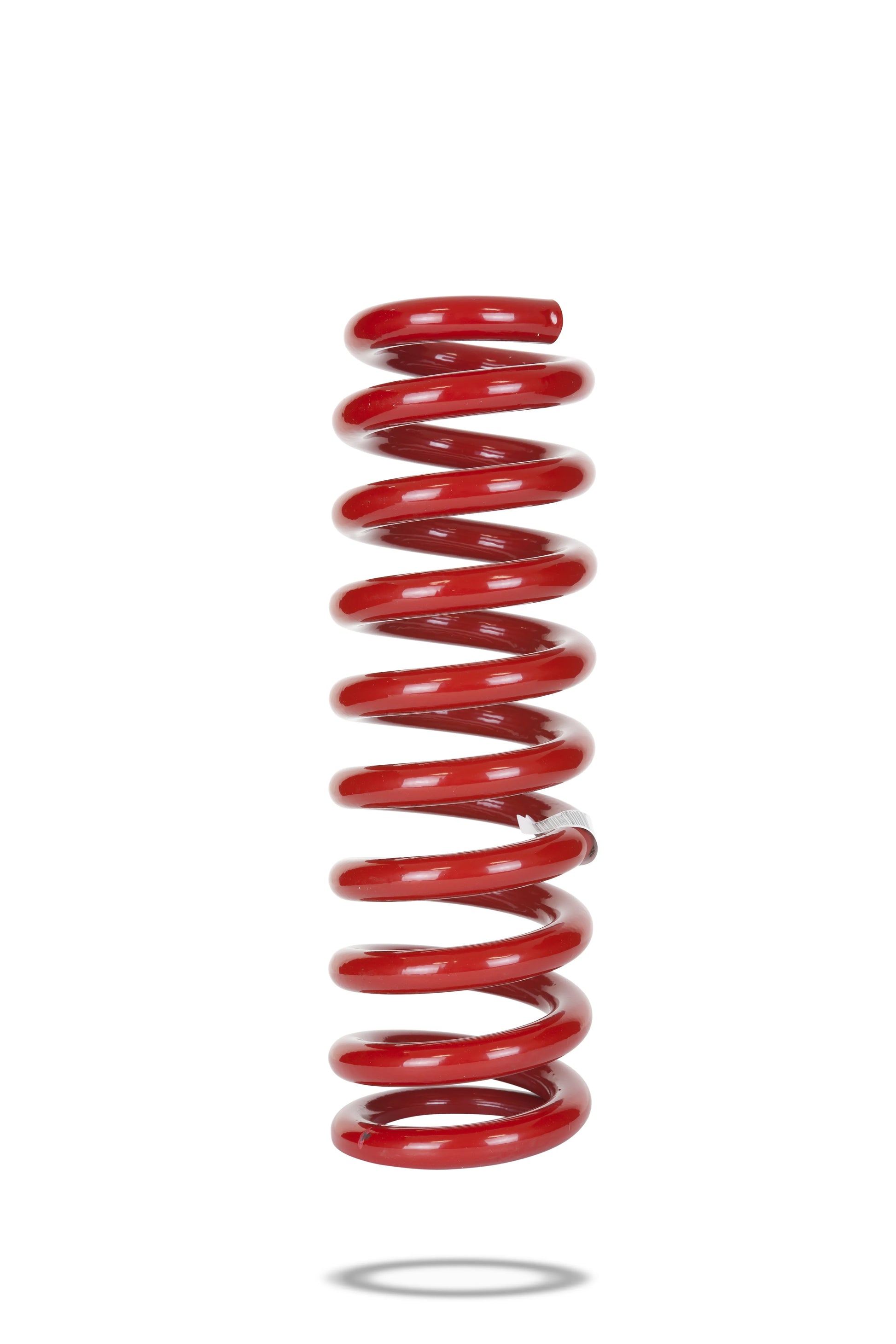

Pedders Coil Spring

Pedders Coil Springs are Pedder's premium range of Coil Springs for multiple applications. Built to ISO 9001 standards with tolerance of only +/-2mm at loaded height. Pedders Coil Springs are simply unrivaled in terms of handling, vehicle appearance and performance. Coil Spring design and manufacturing is a craft which requires strict adherence to a demanding series of procedures, all of which are critical to the performance of the final product.

The spring rate, or stiffness, must be matched to the weight of the vehicle resting on it and the weight of the other suspension components and the wheel. Spring rate also controls roll stiffness, or body roll. By reducing the amount of body roll, we reduce the amount of wheel camber change. Large camber change can drastically reduce the tyre’s contact with the road surface, severely limiting the handling potential during cornering.

The handling of most vehicles is substantially improved by increasing the original spring rate to an optimum rate which maximises tyre adhesion and reduces body roll for better handling. Increasing the spring rate beyond the optimum rate detracts from the handling potential as the tyres begin to skip over bumps, reducing grip and safety.

Features & Benefits

• Hot Coiling
• Oil Quenching
• Furnace Tempering
• Shot Peening
• Scragging
• Loaded Height and Rate Testing
• Powder Coating and Packaging

Tech Info

Ride height will be 800mm with 17 inch wheels. Click "detailed Information" to see diagram for explanation. Fits standard shocks or Pedders shock part number 144340. Does NOT fit Pedders shock 154340.

Compatibility
Chevrolet	Colorado 2WD	2012-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Heavy Duty Coil Spring
Isuzu	D Max	2WD Hi-Ride | 2012-2017	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Heavy Duty Coil Spring
Isuzu	D Max	4WD, 2.5TD | 2012-2017	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Heavy Duty Coil Spring
Isuzu	MU-X 2WD	3.0lt 4cyl TD | 2012-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Heavy Duty Coil Spring
Isuzu	MU-X 4WD	3.0lt 4cyl TD | 2012-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Heavy Duty Coil Spring
Toyota	Landcruiser	150 series, KDJ150R | 2009-2015	SPRINGS AND SHOCKS	Front Spring Standard	Pedders Heavy Duty Coil Spring
Toyota	Landcruiser	150 series, GRJ150R | 2009-2017	SPRINGS AND SHOCKS	Front Spring Standard	Pedders Heavy Duty Coil Spring
Toyota	Landcruiser	150 series, GDJ150R | 2015-Onward	SPRINGS AND SHOCKS	Front Spring Standard	Pedders Heavy Duty Coil Spring
Toyota	Prado VX Model	GDJ150R, 2.8lt 4cyl TD | 2015-Onward	SPRINGS AND SHOCKS	Front Spring Standard	Pedders Heavy Duty Coil Spring
