270067

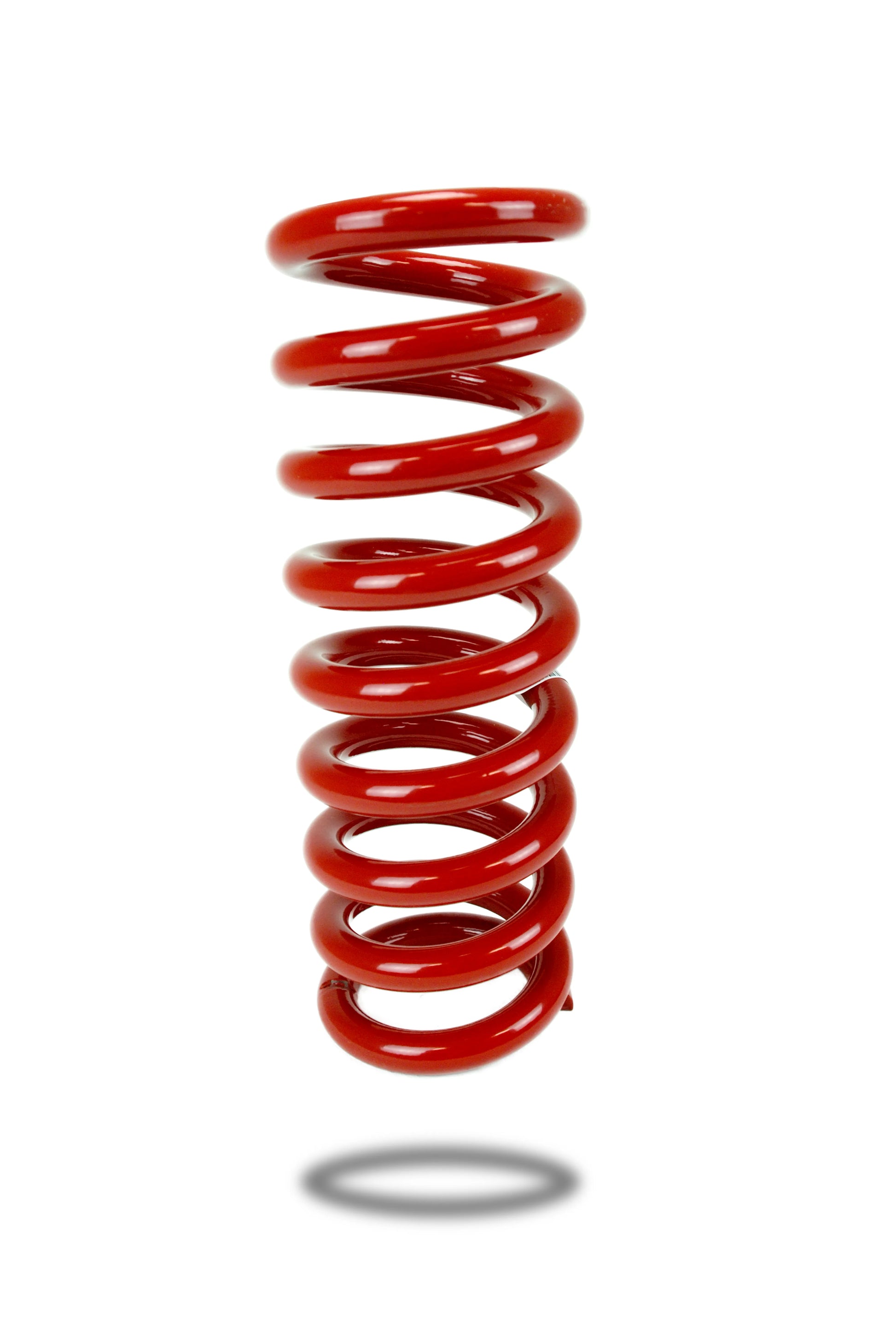

Pedders Coil Spring

Pedders Coil Springs are Pedder's premium range of Coil Springs for multiple applications. Built to ISO 9001 standards with tolerance of only +/-2mm at loaded height. Pedders Coil Springs are simply unrivaled in terms of handling, vehicle appearance and performance. Coil Spring design and manufacturing is a craft which requires strict adherence to a demanding series of procedures, all of which are critical to the performance of the final product.

The spring rate, or stiffness, must be matched to the weight of the vehicle resting on it and the weight of the other suspension components and the wheel. Spring rate also controls roll stiffness, or body roll. By reducing the amount of body roll, we reduce the amount of wheel camber change. Large camber change can drastically reduce the tyre’s contact with the road surface, severely limiting the handling potential during cornering.

The handling of most vehicles is substantially improved by increasing the original spring rate to an optimum rate which maximises tyre adhesion and reduces body roll for better handling. Increasing the spring rate beyond the optimum rate detracts from the handling potential as the tyres begin to skip over bumps, reducing grip and safety.

Features & Benefits

• Hot Coiling
• Oil Quenching
• Furnace Tempering
• Shot Peening
• Scragging
• Loaded Height and Rate Testing
• Powder Coating and Packaging

Tech Info

Standard height spring. ONE spring

Compatibility
Ford	Everest	UA, 3.2lt 5cyl TD	UA, 3.2lt 5cyl TD | 2015-2018	SPRINGS AND SHOCKS	Front Spring Standard	Pedders Heavy Duty Coil Spring
Ford	Ranger	PX, 2WD Hi-Ride	PX, 2WD Hi-Ride | 2011-2015	SPRINGS AND SHOCKS	Front Spring Standard	Pedders Heavy Duty Coil Spring
Ford	Ranger	PX MK2, 2WD Hi-Ride	PX MK2, 2WD Hi-Ride | 2015-2018	SPRINGS AND SHOCKS	Front Spring Standard	Pedders Heavy Duty Coil Spring
Ford	Ranger	PX MK3, 4WD 2.2L and 3.2L ONLY	PX MK3, 4WD 2.2L and 3.2L ONLY | 2018-2019	SPRINGS AND SHOCKS	Front Spring Standard	Pedders Heavy Duty Coil Spring
Ford	Ranger	PX, 4WD	PX, 4WD | 2011-2015	SPRINGS AND SHOCKS	Front Spring Standard	Pedders Heavy Duty Coil Spring
Ford	Ranger	PX MK2, 4WD	PX MK2, 4WD | 2015-2018	SPRINGS AND SHOCKS	Front Spring Standard	Pedders Heavy Duty Coil Spring
Mazda	BT50	UP, 2WD Hi-Ride	UP, 2WD Hi-Ride | 2011-2015	SPRINGS AND SHOCKS	Front Spring Standard	Pedders Heavy Duty Coil Spring
Mazda	BT50	UR, 2WD Hi-Ride	UR, 2WD Hi-Ride | 2015-Onward	SPRINGS AND SHOCKS	Front Spring Standard	Pedders Heavy Duty Coil Spring
Mazda	BT50	UP, 4WD	UP, 4WD | 2011-2015	SPRINGS AND SHOCKS	Front Spring Standard	Pedders Heavy Duty Coil Spring
Mazda	BT50	UR, 4WD	UR, 4WD | 2015-Onward	SPRINGS AND SHOCKS	Front Spring Standard	Pedders Heavy Duty Coil Spring
