280105

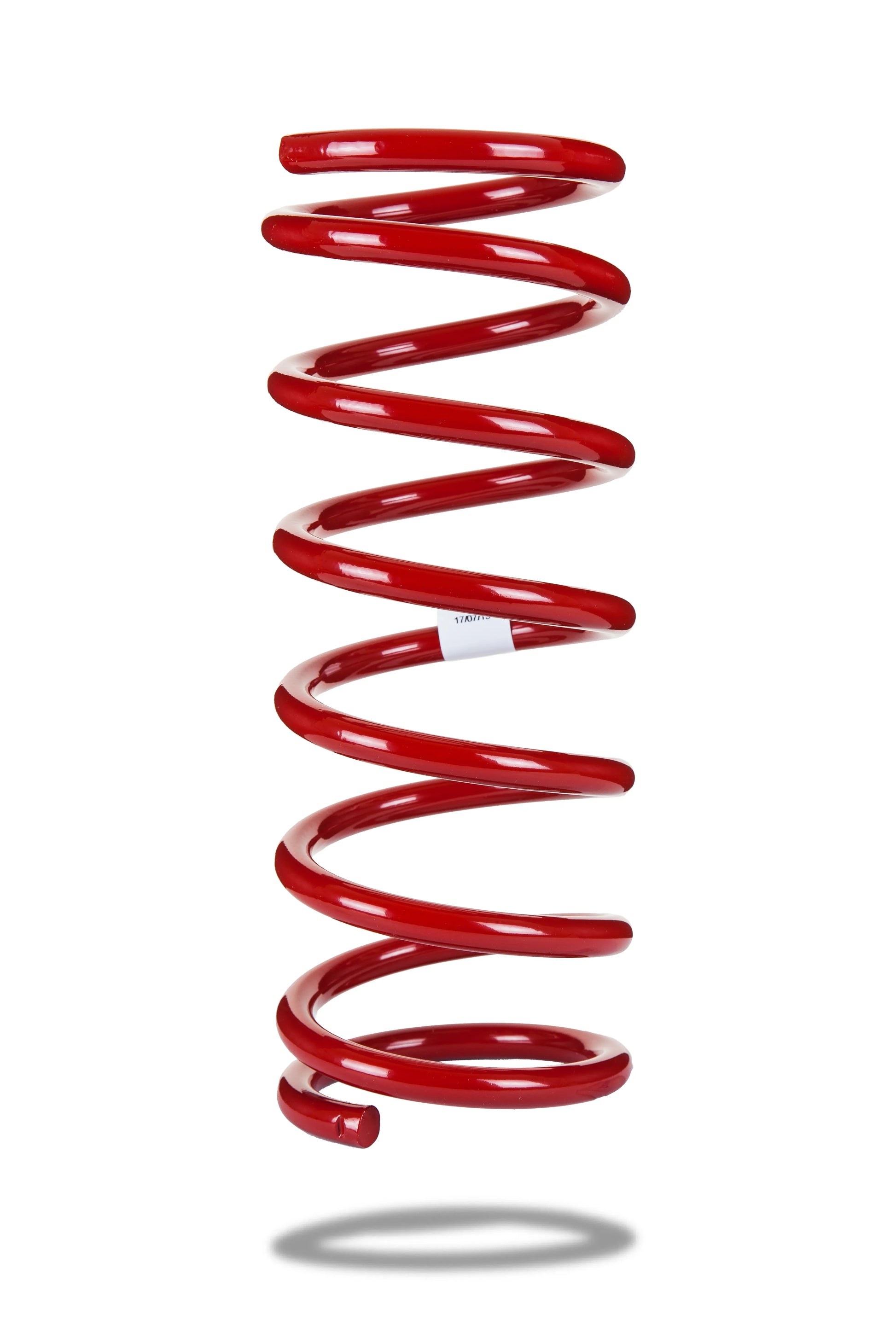

Pedders Coil Spring

Pedders Coil Springs are Pedder's premium range of Coil Springs for multiple applications. Built to ISO 9001 standards with tolerance of only +/-2mm at loaded height. Pedders Coil Springs are simply unrivaled in terms of handling, vehicle appearance and performance. Coil Spring design and manufacturing is a craft which requires strict adherence to a demanding series of procedures, all of which are critical to the performance of the final product.

The spring rate, or stiffness, must be matched to the weight of the vehicle resting on it and the weight of the other suspension components and the wheel. Spring rate also controls roll stiffness, or body roll. By reducing the amount of body roll, we reduce the amount of wheel camber change. Large camber change can drastically reduce the tyre’s contact with the road surface, severely limiting the handling potential during cornering.

The handling of most vehicles is substantially improved by increasing the original spring rate to an optimum rate which maximises tyre adhesion and reduces body roll for better handling. Increasing the spring rate beyond the optimum rate detracts from the handling potential as the tyres begin to skip over bumps, reducing grip and safety.

Features & Benefits

• Hot Coiling
• Oil Quenching
• Furnace Tempering
• Shot Peening
• Scragging
• Loaded Height and Rate Testing
• Powder Coating and Packaging

Spring rate [kgf/mm]	4,72
Load at Nominal Ride Height [kgs]	380
Height at Nominal Ride Height [mm]	240
Spring Rate [lbf/in]	263.33
Free Height [mm]	330

Compatibility
Nissan	X-Trail	T32 Series 1 AWD, 1.6 and 2.0 D 4cyl	T32 Series 1 AWD, 1.6 and 2.0 D 4cyl | 2014-2016	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised height spring. Ride height approx 735mm with 19 inch wheels. ONE spring
Nissan	X-Trail	T32 Series 1 FWD, 1.6 and 2.0 D 4cyl	T32 Series 1 FWD, 1.6 and 2.0 D 4cyl | 2014-2016	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised height spring. Ride height approx 735mm with 19 inch wheels. ONE spring
Nissan	X-Trail	T32 Series 2 AWD, 1.6 and 2.0 D 4cyl	T32 Series 2 AWD, 1.6 and 2.0 D 4cyl | 2016-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised height spring. Ride height approx 735mm with 19 inch wheels. ONE spring
Nissan	X-Trail	T32 Series 2 FWD, 1.6 and 2.0 D 4cyl	T32 Series 2 FWD, 1.6 and 2.0 D 4cyl | 2016-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised height spring. Ride height approx 735mm with 19 inch wheels. ONE spring
Renault	Koleos	HZG AWD, 2.5lt 4cyl ULP	HZG AWD, 2.5lt 4cyl ULP | 2016-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring
Renault	Koleos	HZG FWD, 2.5lt 4cyl ULP	HZG FWD, 2.5lt 4cyl ULP | 2016-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring
