290178

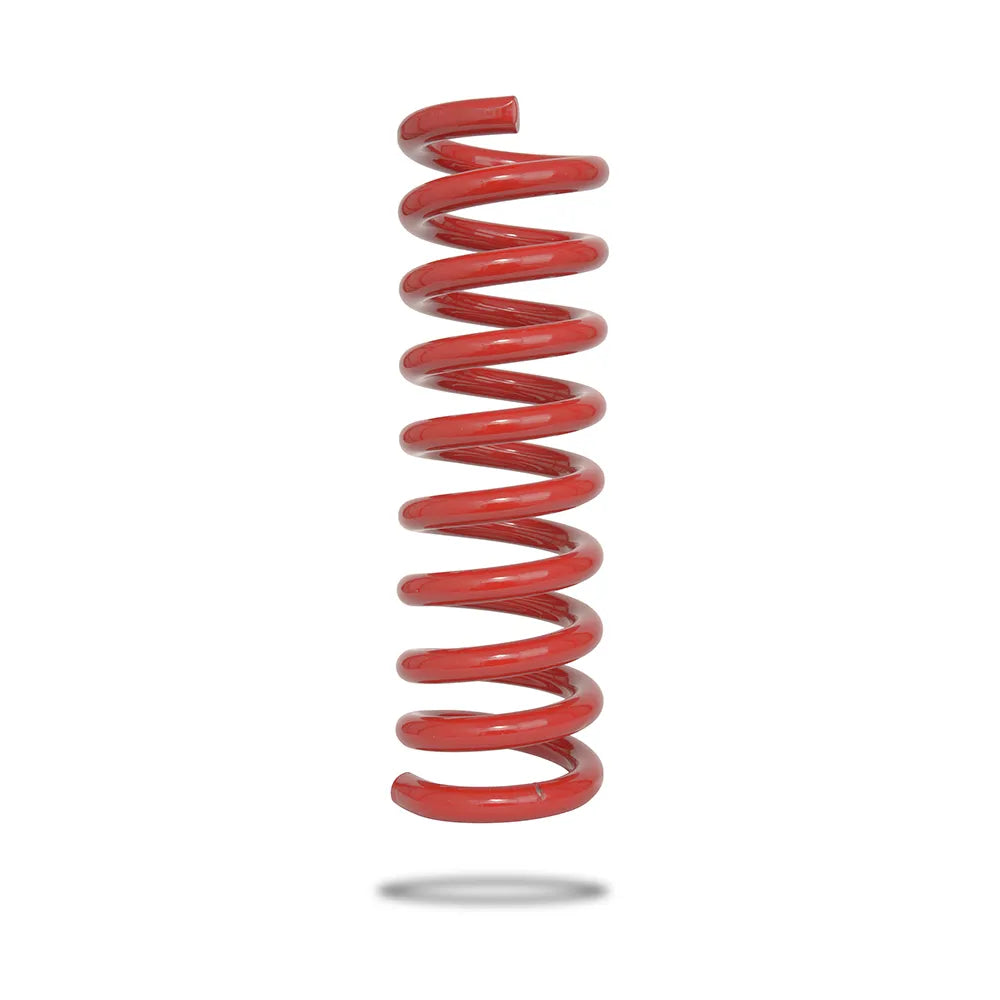

Pedders Coil Spring

Pedders Coil Springs are Pedder's premium range of Coil Springs for multiple applications. Built to ISO 9001 standards with tolerance of only +/-2mm at loaded height. Pedders Coil Springs are simply unrivaled in terms of handling, vehicle appearance and performance. Coil Spring design and manufacturing is a craft which requires strict adherence to a demanding series of procedures, all of which are critical to the performance of the final product.

The spring rate, or stiffness, must be matched to the weight of the vehicle resting on it and the weight of the other suspension components and the wheel. Spring rate also controls roll stiffness, or body roll. By reducing the amount of body roll, we reduce the amount of wheel camber change. Large camber change can drastically reduce the tyre’s contact with the road surface, severely limiting the handling potential during cornering.

The handling of most vehicles is substantially improved by increasing the original spring rate to an optimum rate which maximises tyre adhesion and reduces body roll for better handling. Increasing the spring rate beyond the optimum rate detracts from the handling potential as the tyres begin to skip over bumps, reducing grip and safety.

Features & Benefits

• Hot Coiling
• Oil Quenching
• Furnace Tempering
• Shot Peening
• Scragging
• Loaded Height and Rate Testing
• Powder Coating and Packaging

Spring rate [kgf/mm]	14,47
Load at Nominal Ride Height [kgs]	950
Height at Nominal Ride Height [mm]	290
Spring Rate [lbf/in]	808.03
Free Height [mm]	370

Compatibility
Ford	Ranger	PX MK3 (MY2019), 2WD Hi-Ride	PX MK3 (MY2019), 2WD Hi-Ride | 2018-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised heavy duty spring.Suitable for use on vehicles with additional equipment such as bull bar/winch/aftermarket bumper. Ride height 840mm with 17 inch wheels. Click ""detailed information"" to see diagram for explanation. Approx 35 to 40mm higher than standard. ONE spring
Ford	Ranger	PX MK3, 4WD 2.0 Model ONLY	PX MK3, 4WD 2.0 Model ONLY | 2019-2022	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised heavy duty spring.Suitable for use on vehicles with additional equipment such as bull bar/winch/aftermarket bumper. Ride height 840mm with 17 inch wheels. Click ""detailed information"" to see diagram for explanation. Approx 35 to 40mm higher than standard. ONE spring
Ford	Ranger	PX MK3, 4WD 3.2 Wildtrack Model ONLY	PX MK3, 4WD 3.2 Wildtrack Model ONLY | 2019-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised heavy duty spring.Suitable for use on vehicles with additional equipment such as bull bar/winch/aftermarket bumper. Ride height 840mm with 17 inch wheels. Click ""detailed information"" to see diagram for explanation. Approx 35 to 40mm higher than standard. ONE spring
