290196

Pedders Leaf Springs

For heavy duty load carrying and towing, leaf springs remain the best performing suspension design, but can become harsh, noisier and less effective in dampening bumps and vibrations. They are also prone to sagging and should be re-set or replaced when a change in ride height or ride quality is observed.Pedders offer full replacement leaf spring packs for car, light commercial and four wheel drive applications that feature metal eye sleeves to minimise binding and noise and are constructed from only the highest grade steels for absolute durability and performance.

Features & Benefits

• Improved Load Carrying Characteristics
• Varying Laminate Thickness
• High Grade Steel
• Tapered Cut Ends
• All backed by our 2 Year / 25,000 mile warranty

Spring rate [kgf/mm]	8,4
Load at Nominal Ride Height [kgs]	1085
Height at Nominal Ride Height [mm]	315
Spring Rate [lbf/in]	468.92
Shape - Inner Diameter (Bottom)	Eye 1/2
Free Height [mm]	500

Compatibility

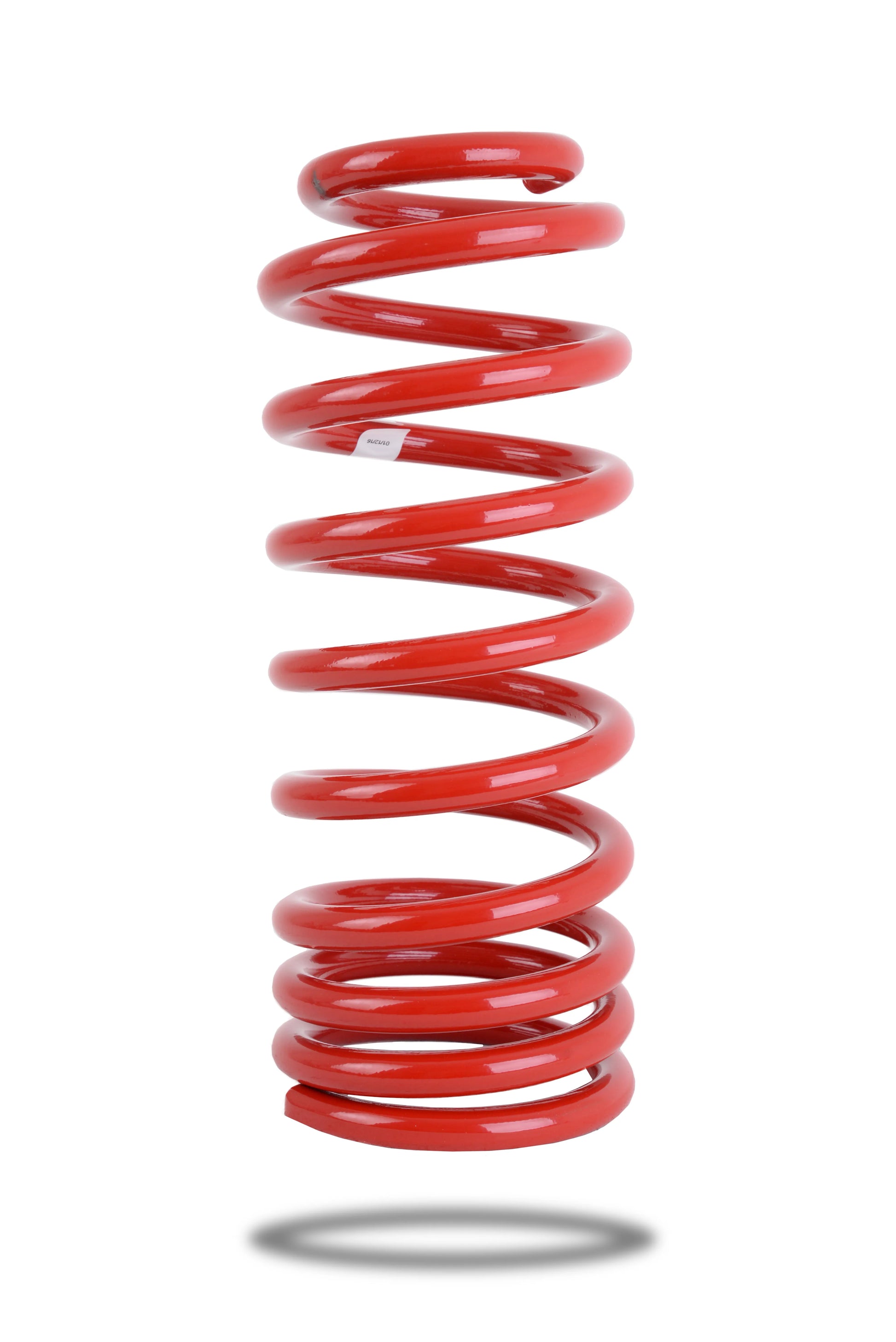

Toyota	Landcruiser	200 Series, Armoured Vehicles	200 Series, Armoured Vehicles | 2007-Onward	SPRINGS AND SHOCKS	Rear Spring Standard	Pedders Trakryder Coil Spring	Suitable as standard height on B6 level armoured vehicles. For use ONLY with Pedders shock 131502. ONE spring. REAR
