ACL

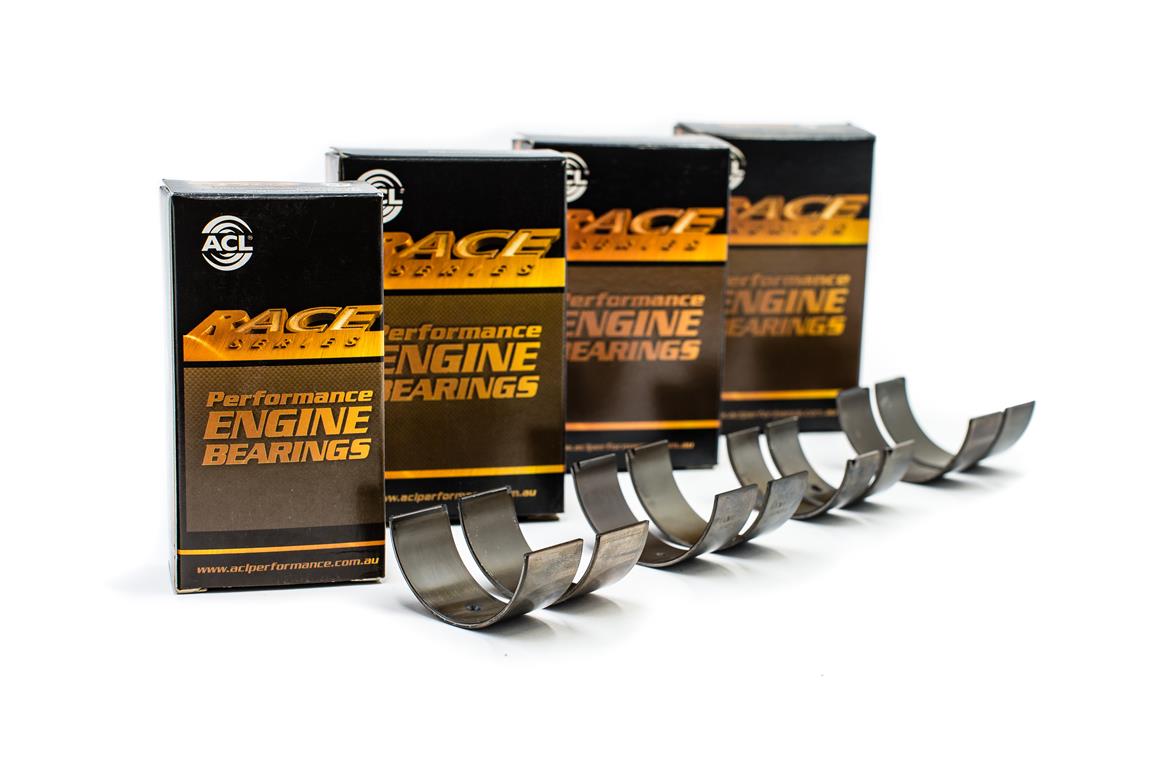

4B1146HX-STD
4B1146HX-STD
Regular price
€86,85 EUR
Regular price
Sale price
€86,85 EUR
Quantity
Couldn't load pickup availability
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Tunnel [mm] | 48.000 / 48.020 |
| Shaft [mm] | 44.991 / 45.000 |
| Max. Wall | 1.476 |
| Max. Length | 23.50 |
| Half type | Identical halves |
| Compatibility | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mitsubishi | Lancer III Station Wagon (C1_V, C3_V) | 1.8 D | 09.1985 - 09.1986 | 4D65 | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Lancer III Station Wagon (C1_V, C3_V) | 1.8 D | 09.1986 - 05.1992 | 4D65 | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Lancer IV Hatchback (C6_A, C7_A) | 1.8 D | 04.1988 - 05.1992 | 4D65 | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Lancer III Station Wagon (C1_V, C3_V) | 1.8 D | 10.1986 - 10.1988 | 4D65 | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Lancer III (C1_A, C6_A) | 1.8 D | 09.1986 - 04.1988 | 4D65 | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Lancer III (C1_A, C6_A) | 1.8 D | 01.1984 - 09.1986 | 4D65 | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Colt III (C5_A) | 1.8 D | 04.1988 - 05.1992 | 4D65 | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Colt II (C1_A) | 1.8 D | 09.1986 - 04.1988 | 4D65 | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Colt II (C1_A) | 1.8 D | 02.1984 - 09.1986 | 4D65 | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Lancer IV (C6_A, C7_A) | 1.8 D | 04.1988 - 05.1992 | 4D65 | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Space Wagon (D0_V/W) | 1.8 TD | 01.1988 - 04.1991 | 4D65-T | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 1.8 TD | 10.1991 - 12.1994 | 4D65-T | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Galant V (E1_A) | 1.8 TD | 06.1984 - 04.1990 | 4D65-T | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Galant VI (E3_A) | 1.8 TD | 11.1988 - 10.1992 | 4D65-T | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 1.8 TD | 01.1988 - 10.1992 | 4D65-T | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Mirage II Hatchback (C10) | 1.5 | 04.1986 - 01.1988 | G31B | 4 | 4B1146HX | 1499 cc | SOHC 8V | -STD | 23.5mm wide. | 74.5 | 86.0 |
| Mitsubishi | Mirage II Saloon (C10) | 1.5 | 04.1986 - 01.1988 | G31B | 4 | 4B1146HX | 1499 cc | SOHC 8V | -STD | 23.5mm wide. | 74.5 | 86.0 |
| Mitsubishi | Mirage III Station Wagon | 1.5 | 04.1986 - 01.1988 | G31B | 4 | 4B1146HX | 1499 cc | SOHC 8V | -STD | 23.5mm wide. | 74.5 | 86.0 |
| Mitsubishi | Delica | 1.4 | 04.1986 - 04.1994 | G33B | 4 | 4B1146HX | 1439 cc | SOHC 8V | -STD | 23.5mm wide. | 73.0 | 86.0 |
| Mitsubishi | Chariot | 1.8 | 02.1983 - 05.1991 | G37B | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Eclipse I (D2_A) | 1.8 | 01.1990 - 1992 | G37B | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Eterna | 1.8 | 1983 - 09.1992 | G37B | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Lancer III Station Wagon (C1_V, C3_V) | 1.8 4WD | 01.1987 - 08.1989 | G37B | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Mirage III Station Wagon | 1.8 4WD | 02.1986 - 01.1988 | G37B | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Sapporo II (A16_A) | 1.8 | 01.1983 - | G37B | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Sigma | 1.8 | 09.1983 - 10.1990 | G37B | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Space Wagon (D0_V/W) | 1.8 | 09.1988 - 04.1991 | G37B | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Galant | 1.3 | 01.1969 - 1971 | 4G30 | 4 | 4B1146HX | 1289 cc | SOHC 8V | -STD | 23.5mm wide. | 73.0 | 77.0 |
| Mitsubishi | Galant | 1.5 | 11.1969 - 1974 | 4G31 | 4 | 4B1146HX | 1499 cc | SOHC 8V | -STD | 23.5mm wide. | 74.5 | 86.0 |
| Mitsubishi | Celeste | 1.4 | 10.1975 - 1984 | 4G33 | 4 | 4B1146HX | 1439 cc | SOHC 8V | -STD | 23.5mm wide. | 73.0 | 86.0 |
| Mitsubishi | Colt II (C1_A) | 1.4 | 10.1982 - 09.1986 | 4G33 | 4 | 4B1146HX | 1439 cc | SOHC 8V | -STD | 23.5mm wide. | 73.0 | 86.0 |
| Mitsubishi | Colt III (C5_A) | 1.4 | 10.1986 - 06.1990 | 4G33 | 4 | 4B1146HX | 1439 cc | SOHC 8V | -STD | 23.5mm wide. | 73.0 | 86.0 |
| Mitsubishi | Delica | 1.4 | 09.1981 - 1984 | 4G33 | 4 | 4B1146HX | 1439 cc | SOHC 8V | -STD | 23.5mm wide. | 73.0 | 86.0 |
| Mitsubishi | Galant | 1.4 | 01.1972 - 07.1977 | 4G33 | 4 | 4B1146HX | 1439 cc | SOHC 8V | -STD | 23.5mm wide. | 73.0 | 86.0 |
| Mitsubishi | Lancer F (A15_) | 1.4 | 04.1984 - 09.1986 | 4G33 | 4 | 4B1146HX | 1439 cc | SOHC 8V | -STD | 23.5mm wide. | 73.0 | 86.0 |
| Mitsubishi | Lancer I (A7_) | 1.4 | 01.1978 - 09.1979 | 4G33 | 4 | 4B1146HX | 1439 cc | SOHC 8V | -STD | 23.5mm wide. | 73.0 | 86.0 |
| Mitsubishi | Lancer I Station Wagon (A7_V) | 1.4 | 01.1978 - 09.1979 | 4G33 | 4 | 4B1146HX | 1439 cc | SOHC 8V | -STD | 23.5mm wide. | 73.0 | 86.0 |
| Mitsubishi | Lancer III (C1_A, C6_A) | 1.4 | 10.1986 - 06.1990 | 4G33 | 4 | 4B1146HX | 1439 cc | SOHC 8V | -STD | 23.5mm wide. | 73.0 | 86.0 |
| Mitsubishi | L 300 | 1.4 | 10.1978 - 1984 | 4G33 | 4 | 4B1146HX | 1439 cc | SOHC 8V | -STD | 23.5mm wide. | 73.0 | 86.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 1.4 | 04.1990 - 05.1994 | 4G33 | 4 | 4B1146HX | 1439 cc | SOHC 8V | -STD | 23.5mm wide. | 73.0 | 86.0 |
| Mitsubishi | Lancer | 1.7 | 02.1972 - 05.1977 | 4G35 | 4 | 4B1146HX | 1686 cc | SOHC 8V | -STD | 23.5mm wide. | 79.0 | 86.0 |
| Mitsubishi | Celeste | 1.2 | 11.1975 - 02.1979 | 4G36 | 4 | 4B1146HX | 1238 cc | SOHC 8V | -STD | 23.5mm wide. | 73.0 | 74.0 |
| Mitsubishi | Lancer I (A7_) | 1.2 | 11.1975 - 09.1979 | 4G36 | 4 | 4B1146HX | 1238 cc | SOHC 8V | -STD | 23.5mm wide. | 73.0 | 74.0 |
| Mitsubishi | Cordia (A21_A, AB, AC) | 1.8 | 11.1984 - 07.1989 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Eclipse Convertible | 1.8 | 12.1989 - 03.1994 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Eclipse I (D2_A) | 1.8 | 12.1989 - 03.1994 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Galant | 1.8 | 11.1987 - 10.1992 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Eterna | 1.8 | 07.1988 - 09.1992 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Galant V (E1_A) | 1.8 | 09.1984 - 12.1990 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Galant VI (E3_A) | 1.8 | 11.1988 - 10.1992 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 1.8 | 11.1987 - 10.1992 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Lancer III Station Wagon (C1_V, C3_V) | 1.8 | 01.1987 - 06.1992 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Lancer IV Hatchback (C6_A, C7_A) | 1.8 | 06.1992 - 07.1993 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Lancer IV Hatchback (C6_A, C7_A) | 1.8 AWD | 09.1989 - 06.1992 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | 1.8 | 06.1992 - 07.1993 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Space Wagon (D0_V/W) | 1.8 AWD | 10.1987 - 12.1987 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Space Wagon (D0_V/W) | 1.8 | 01.1984 - 12.1987 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Tredia (A21_) | 1.8 | 08.1984 - 07.1986 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Tredia (A21_) | 1.8 AWD | 04.1985 - 07.1986 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Space Wagon VAN (D0_V/W) | 1.8 | 10.1983 - 12.1988 | 4G37 | 4 | 4B1146HX | 1755 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 86.0 |
| Mitsubishi | Colt III (C5_A) | 1.6 GTi | 04.1988 - 05.1990 | 4G61 | 4 | 4B1146HX | 1596 cc | DOHC 16V | -STD | 23.5mm wide. | 82.0 | 75.0 |
| Mitsubishi | Lancer IV Hatchback (C6_A, C7_A) | 1.6 GTi | 05.1988 - 08.1992 | 4G61 | 4 | 4B1146HX | 1596 cc | DOHC 16V | -STD | 23.5mm wide. | 82.0 | 75.0 |
| Mitsubishi | Mirage III Hatchback (C5_-C8_) | 1.6 GTi | 05.1988 - 11.1991 | 4G61 | 4 | 4B1146HX | 1596 cc | DOHC 16V | -STD | 23.5mm wide. | 82.0 | 75.0 |
| Mitsubishi | Mirage III Hatchback (C5_-C8_) | 1.6 Turbo | 05.1988 - 11.1991 | 4G61-T | 4 | 4B1146HX | 1596 cc | DOHC 16V | -STD | 23.5mm wide. | 82.0 | 75.0 |
| Mitsubishi | Colt II (C1_A) | 1.6 | 10.1982 - 09.1986 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Colt III (C5_A) | 1.6 | 10.1986 - 06.1990 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Cordia (A21_A, AB, AC) | 1.6 | 10.1982 - 12.1986 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Galant III (A12_) | 1.6 | 01.1977 - 08.1980 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Galant III Station Wagon (A12_V) | 1.6 | 01.1979 - 08.1980 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Galant IV (A16_) | 1.6 | 09.1980 - 05.1984 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Galant IV Station Wagon (A16_V) | 1.6 | 09.1980 - 05.1984 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Galant V (E1_A) | 1.6 | 06.1984 - 04.1990 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 1.6 | 01.1988 - 10.1992 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Lancer CELESTE Coupe (A7_) | 1.6 | 01.1977 - 06.1981 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Lancer F (A15_) | 1.6 | 04.1984 - 09.1986 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Lancer III (C1_A, C6_A) | 1.6 | 10.1986 - 06.1990 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | L200 | 1.6 | 03.1980 - 10.1986 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 1.6 | 04.1987 - 10.1996 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Sapporo I (A12_) | 1.6 | 04.1978 - 07.1980 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Sapporo II (A16_A) | 1.6 | 08.1980 - 09.1984 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Sigma Estate (GJ, GK, GN) | 1.6 | 03.1982 - 09.1985 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Sigma (GE) | 1.6 | 10.1977 - 05.1980 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Sigma (GJ, GK, GN) | 1.6 | 03.1982 - 09.1985 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Tredia (A21_) | 1.6 | 09.1982 - 10.1987 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | L 300 / Delica II Bus (L03_P/G, L0_2P) | 1.6 | 05.1980 - 02.1987 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | L 300 / Delica II Platform/Chassis (L03_P) | 1.6 | 01.1986 - 12.1993 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | L 300 / Delica II Van (L03_P) | 1.6 | 05.1980 - 10.1986 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 1.6 | 11.1986 - 12.1993 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 1.6 | 11.1990 - 12.1993 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | L400 Van (PD_W, PC_W, PB_V, PA_W, PA_V) | 1.6 | 06.1996 - 10.2002 | 4G32 | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 2.0 | 11.1986 - 12.1988 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 16V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.0 | 11.1986 - 12.1988 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 16V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.0 | 11.1986 - 07.1988 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 16V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 2.0 | 11.1986 - 07.1988 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 16V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | Galant V (E1_A) | 2.0 | 06.1986 - 12.1987 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 16V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | Space Wagon (D0_V/W) | 2.0 | 06.1986 - 05.1988 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 16V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | Space Wagon (D0_V/W) | 2.0 | 06.1986 - 05.1988 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 16V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | Space Wagon | 2.0 | 03.1985 - 04.1991 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 16V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | Pajero I (L04_G, L14_G) | 2.0 4WD | 01.1983 - 02.1991 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 16V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | Tredia (A21_) | 2.0 | 09.1983 - 03.1988 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 16V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 2.4 | 11.1986 - 08.1997 | G64B | 4 | 4B1146HX | 2351 cc | SOHC 8V | -STD | 23.5mm wide. | 96.5 | 100.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 2.4 4WD | 11.1986 - 08.1997 | G64B | 4 | 4B1146HX | 2351 cc | SOHC 8V | -STD | 23.5mm wide. | 96.5 | 100.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.4 4WD | 11.1986 - 02.1990 | G64B | 4 | 4B1146HX | 2351 cc | SOHC 8V | -STD | 23.5mm wide. | 96.5 | 100.0 |
| Mitsubishi | Galant V (E1_A) | 2.4 | 02.1986 - 12.1987 | G64B | 4 | 4B1146HX | 2351 cc | SOHC 8V | -STD | 23.5mm wide. | 96.5 | 100.0 |
| Hyundai | Stellar (F31_, SF_2) | 1.6 | 10.1983 - 12.1991 | G32B | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Chariot | 1.6 | 01.1983 - | G32B | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Colt I (A15_A) | 1.6 | 09.1981 - 09.1984 | G32B | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | Mirage I Saloon (A15_) | 1.6 | 03.1979 - 09.1983 | G32B | 4 | 4B1146HX | 1597 cc | SOHC 8V | -STD | 23.5mm wide. | 77.0 | 86.0 |
| Mitsubishi | L 300 / Delica II Platform/Chassis (L03_P) | 1.8 | 03.1983 - 10.1986 | 4G62 | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | L 300 / Delica II Bus (L03_P/G, L0_2P) | 1.8 | 03.1983 - 12.1985 | 4G62 | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | L 300 / Delica II Bus (L03_P/G, L0_2P) | 1.8 4WD | 03.1983 - 12.1985 | 4G62 | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | L 300 / Delica II Van (L03_P) | 1.8 | 03.1983 - 12.1985 | 4G62 | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Galant V (E1_A) | 2.0 Turbo ECi | 06.1984 - 04.1990 | 4G63-T (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | Lancer II (A17_) | 2.0 Turbo ECi | 03.1981 - 02.1983 | 4G63-T (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | Pajero I (L04_G, L14_G) | 2.0 Turbo 4WD | 10.1984 - 02.1991 | 4G63-T (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Hyundai | Marcia | 1.8 | 05.1993 - 05.1996 | G62B | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Galant | 1.8 | 05.1979 - 02.1988 | G62B | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | Tredia (A21_) | 1.8 Turbo | 08.1984 - 07.1986 | G62B-T | 4 | 4B1146HX | 1795 cc | SOHC 8V | -STD | 23.5mm wide. | 80.6 | 88.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 2.0 | 11.1986 - 12.1988 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.0 | 11.1986 - 07.1988 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.0 | 11.1986 - 12.1988 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 2.0 | 11.1986 - 07.1988 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | Galant V (E1_A) | 2.0 | 06.1986 - 12.1987 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | Space Wagon (D0_V/W) | 2.0 | 06.1986 - 05.1988 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | Space Wagon (D0_V/W) | 2.0 4WD | 06.1986 - 05.1988 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | Space Wagon | 2.0 | 03.1985 - 04.1991 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | Pajero I (L04_G, L14_G) | 2.0 4WD | 01.1983 - 02.1991 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | Tredia (A21_) | 2.0 | 09.1983 - 03.1988 | G63B | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | all | 2.0 Turbo | 01.1980 - 04.1992 | G63B-T | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. | 85.0 | 88.0 |
| Mitsubishi | Sapporo III (E16A) | 2.4 | 06.1987 - 08.1990 | 4G64 (SOHC 8V) | 4 | 4B1146HX | 2351 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 86.5 | 100.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.4 | 11.1990 - 05.2004 | 4G64 (SOHC 8V) | 4 | 4B1146HX | 2351 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 86.5 | 100.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 2.4 | 11.1986 - 08.1997 | 4G64 (SOHC 8V) | 4 | 4B1146HX | 2351 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 86.5 | 100.0 |
| Mitsubishi | Pajero II Canvas Top (V2_C, V4_C) | 2.4 | 04.1991 - 04.2000 | 4G64 (SOHC 8V) | 4 | 4B1146HX | 2351 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 86.5 | 100.0 |
| Mitsubishi | Pajero II (V3_W, V2_W, V4_W, V5_W) | 2.4 | 04.1991 - 10.1999 | 4G64 (SOHC 8V) | 4 | 4B1146HX | 2351 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 86.5 | 100.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 2.4 4WD | 11.1986 - 08.1997 | 4G64 (SOHC 8V) | 4 | 4B1146HX | 2351 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 86.5 | 100.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.4 4WD | 08.1986 - 05.2004 | 4G64 (SOHC 8V) | 4 | 4B1146HX | 2351 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 86.5 | 100.0 |
| Mitsubishi | Galant V (E1_A) | 2.4 | 06.1985 - 04.1990 | 4G64 (SOHC 8V) | 4 | 4B1146HX | 2351 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 86.5 | 100.0 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 2.4 | 09.1989 - 10.1996 | 4G64 (SOHC 8V) | 4 | 4B1146HX | 2351 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 86.5 | 100.0 |
| Mitsubishi | Space Wagon (D0_V/W) | 2.0 8V | 09.1987 - 01.1992 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Galant VI (E3_A) | 2.0 8V | 04.1989 - 10.1992 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 2.0 8V | 11.1987 - 10.1992 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.0 8V | 11.1986 - 05.2004 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 2.0 8V | 06.1994 - 05.1996 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 2.0 8V 4WD | 02.1987 - 05.1994 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Space Wagon (D0_V/W) | 2.0 8V 4WD | 03.1985 - 04.1991 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Galant VI (E3_A) | 2.0 8V 4WD | 04.1989 - 10.1992 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 2.0 8V 4WD | 12.1988 - 10.1992 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | L 300 / Delica II Bus (L03_P/G, L0_2P) | 2.0 8V 4WD | 11.1986 - 02.1987 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | L 300 III Bus (P0_W, P1_W, P2_W, P3_W) | 2.0 8V 4WD | 12.1986 - 05.2004 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | L 300 III Van (P0_V, P1_V, P2_V) | 2.0 8V 4WD | 08.1988 - 05.1994 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Galant IV (A16_) | 2.0 8V | 09.1980 - 05.1984 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Galant V (E1_A) | 2.0 8V | 06.1984 - 04.1990 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Galant IV Station Wagon (A16_V) | 2.0 8V | 09.1980 - 06.1983 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Tredia (A21_) | 2.0 8V 4WD | 10.1986 - 03.1988 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Space Wagon (D0_V/W) | 2.0 8V 4WD | 06.1988 - 04.1991 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Sapporo II (A16_A) | 2.0 8V | 08.1980 - 08.1983 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Sapporo II (A16_A) | 2.0 8V | 08.1980 - 09.1984 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Hyundai | Stellar (F31_, SF_2) | 2.0 8V | 05.1984 - 12.1989 | 4G63 (SOHC 8V) | 4 | 4B1146HX | 1997 cc | SOHC 8V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 2.0 16V | 12.2003 - 12.2013 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Lancer CARGO Estate Van (CS_W) | 2.0 16V | 09.2003 - 06.2008 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Lancer VII Estate (CS_W, CT_W) | 2.0 16V | 09.2003 - 12.2007 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Outlander I (CU_W) | 2.0 16V | 05.2003 - 10.2006 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Santamo (UG) | 2.0 16V | 05.1999 - 12.2004 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Space Runner MPV (N1_W, N2_W) | 2.0 16V | 06.1997 - 08.1999 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Santamo (UG) | 2.0 16V 4WD | 05.1999 - 12.2004 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Outlander I (CU_W) | 2.0 16V 4WD | 05.2003 - 10.2006 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Galant VI (E3_A) | 2.0 GTI 16V | 11.1988 - 10.1992 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Galant VI (E3_A) | 2.0 GTi 16V 4WD | 07.1989 - 12.1992 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 2.0 GTi 16V 4WD | 09.1991 - 10.1992 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 2.0 GTI 16V | 09.1988 - 10.1992 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Galant VI (E3_A) | 2.0 GTi 16V 4WD | 11.1988 - 10.1992 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 2.0 GTi 16V 4WD | 09.1988 - 10.1992 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Eclipse I (D2_A) | 2.0 16V | 04.1991 - 11.1995 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Eclipse I (D2_A) | 2.0 16V | 04.1991 - 11.1995 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Eclipse II (D3_A) | 2.0 16V | 12.1995 - 04.1999 | 4G63 (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Eclipse Convertible | 2.0 Turbo | 09.1995 - 04.1999 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Eclipse I (D2_A) | 2.0 Turbo | 12.1989 - 03.1994 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Eclipse I (D2_A) | 2.0 Turbo 4WD | 12.1989 - 03.1994 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Eclipse II (D3_A) | 2.0 Turbo | 04.1994 - 04.1999 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Eclipse II (D3_A) | 2.0 Turbo 4WD | 04.1994 - 04.1999 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 2.0 VR4 Turbo 4WD | 10.1990 - 03.1993 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Outlander I (CU_W) | 2.0 Turbo 4WD | 04.2004 - 10.2006 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Carisma Saloon (DA_) | 2.0 16V GT EVO VI/VII | 11.1999 - 06.2006 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 2.0 Turbo | 09.1988 - 12.1992 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Galant VI Saloon (E3_A) | 2.0 Turbo 4WD | 09.1988 - 12.1992 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Lancer IV (C6_A, C7_A) | EVO IV | 08.1996 - 12.1997 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | EVO I | 10.1992 - 12.1993 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | EVO II | 01.1994 - 07.1995 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | EVO III | 08.1995 - 07.1996 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Lancer VI (CJ_, CP_) | EVO V | 01.1998 - 12.1998 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Lancer VI (CJ_, CP_) | EVO VI | 01.1999 - 02.2001 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | EVO VII | 01.2001 - 01.2003 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | EVO VIII | 04.2003 - 08.2006 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | EVO IX | 01.2005 - 10.2008 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Mitsubishi | Lancer VII Estate (CS_W, CT_W) | EVO IX | 09.2005 - 03.2007 | 4G63-T (DOHC 16V) | 4 | 4B1146HX | 1997 cc | DOHC 16V | -STD | 23.5mm wide. Suits early models manufactured until 12.1991 | 85.0 | 88.0 |
| Hyundai | Lantra I (J-1) | 1.8 16V | 10.1990 - 11.1995 | G4CN | 4 | 4B1146HX | 1836 cc | DOHC 16V | -STD | 23.5mm wide. | 81.5 | 88.0 |
| Hyundai | Lantra I (J-1) | 1.6 16V | 10.1990 - 11.1995 | G4CR | 4 | 4B1146HX | 1596 cc | DOHC 16V | -STD | 23.5mm wide. | 82.3 | 75.0 |
| Hyundai | Sonata II (Y-2) | 2.4 8V | 09.1988 - 08.1991 | G4CS | 4 | 4B1146HX | 2350 cc | SOHC 8V | -STD | 23.5mm wide. | 86.5 | 100.0 |
