ACL

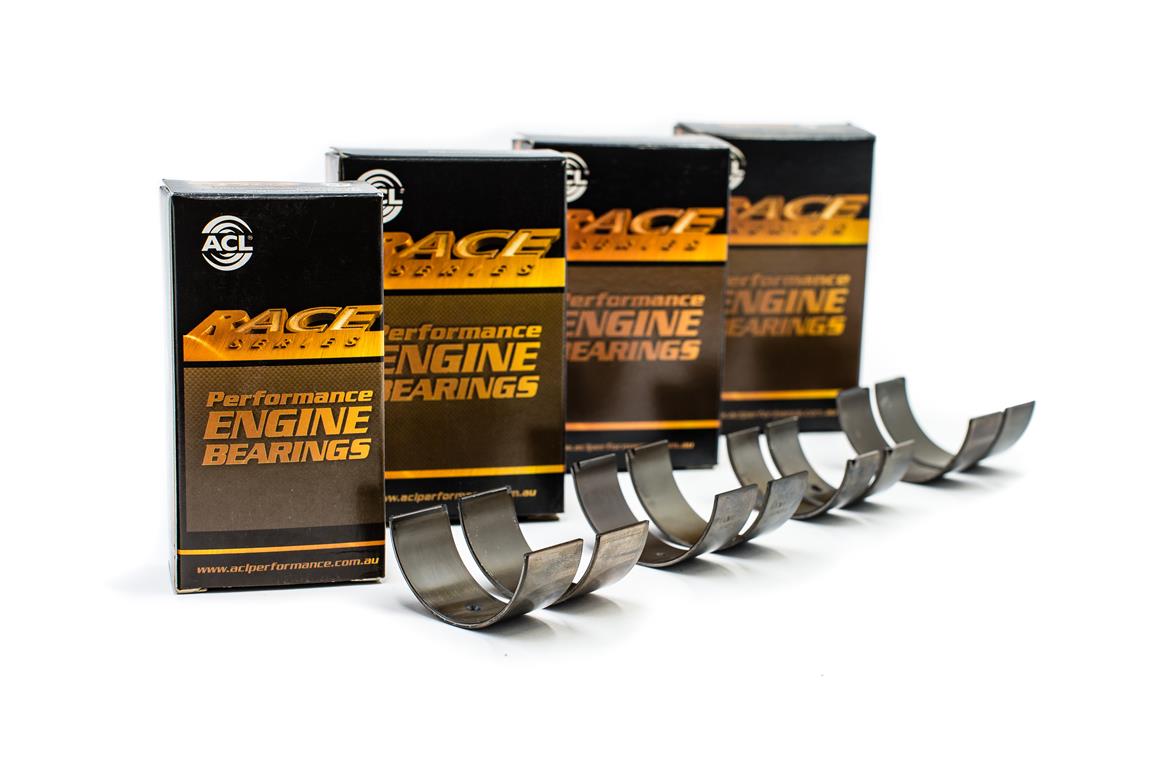

4B1201H-.025
4B1201H-.025
Regular price
€75,13 EUR
Regular price
Sale price
€75,13 EUR
Quantity
Couldn't load pickup availability
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Half type | Identical halves |
| Compatibility | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hyundai | ACCENT II | SOHC/OHC 12v | 01.2000 - 11.2005 | G4EA | 4 | 4B1201H | 1341 cc | SOHC/OHC v12 | -.025 | 71.5 | 83.5 |
| Hyundai | ACCENT II | SOHC/OHC 12v | 08.2002 - 11.2005 | G4EA | 4 | 4B1201H | 1341 cc | SOHC/OHC v12 | -.025 | 71.5 | 83.5 |
| Hyundai | HYUNDAI GETZ | SOHC/OHC 12v | 09.2003 - 09.2005 | G4EA | 4 | 4B1201H | 1341 cc | SOHC/OHC v12 | -.025 | 71.5 | 83.5 |
| Hyundai | HYUNDAI GETZ | SOHC/OHC 12v | 09.2004 - 06.2009 | G4EA | 4 | 4B1201H | 1341 cc | SOHC/OHC v12 | -.025 | 71.5 | 83.5 |
| Hyundai | HYUNDAI GETZ | SOHC/OHC 12v | 09.2002 - 03.2004 | G4EA | 4 | 4B1201H | 1341 cc | SOHC/OHC v12 | -.025 | 71.5 | 83.5 |
| Hyundai | ACCENT II | SOHC/OHC 12v | 01.2000 - 11.2005 | G4EB | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | ELANTRA III 1.5 | DOHC 16v | 01.2001 - 12.2003 | G4EC | 4 | 4B1201H | 1495 cc | DOHC v16 | -.025 | 75.5 | 83.5 |
| Hyundai | ELANTRA III 1.5 | DOHC 16v | 01.2003 - 12.2005 | G4EC | 4 | 4B1201H | 1495 cc | DOHC v16 | -.025 | 75.5 | 83.5 |
| Hyundai | ELANTRA III 1.5 | DOHC 16v | 01.2000 - 12.2003 | G4EC | 4 | 4B1201H | 1495 cc | DOHC v16 | -.025 | 75.5 | 83.5 |
| Hyundai | GETZ 1.5 | DOHC 16v | 03.2003 - 09.2005 | G4EC | 4 | 4B1201H | 1495 cc | DOHC v16 | -.025 | 75.5 | 83.5 |
| Hyundai | MATRIX 1.5 | DOHC 16v | 01.2002 - 08.2010 | G4EC | 4 | 4B1201H | 1495 cc | DOHC v16 | -.025 | 75.5 | 83.5 |
| Hyundai | ACCENT 1.6 | DOHC 16v | 02.2006 - 12.2010 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | ELANTRA 1.6 | DOHC 16v | 04.2008 - 12.2009 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | YUEDONG 1.6 | DOHC 16v | 04.2008 - 12.2009 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | ELANTRA 1.6 | DOHC 16v | 01.2006 - 12.2010 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | ELANTRA 1.6 | DOHC 16v | 04.2004 - 12.2014 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | ACCENT II 1.6 | DOHC 16v | 12.2002 - 11.2005 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | ACCENT II 1.6 | DOHC 16v | 01.2000 - 11.2005 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | ACCENT III 1.6 GLS | DOHC 16v | 11.2005 - 11.2010 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | COUPE I 1.6 | DOHC 16v | 08.2000 - 01.2002 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | COUPE II 1.6 | DOHC 16v | 03.2002 - 08.2009 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | ELANTRA III 1.6 | DOHC 16v | 06.2000 - 07.2006 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | ELANTRA III 1.6 | DOHC 16v | 05.2003 - 07.2006 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | ELANTRA III 1.6 | DOHC 16v | 05.2003 - 05.2006 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | ELANTRA III 1.6 | DOHC 16v | 01.2005 - 09.2006 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | GETZ 1.6 | DOHC 16v | 09.2002 - 09.2005 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | GETZ 1.6 | DOHC 16v | 06.2005 - 06.2009 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | MATRIX 1.6 | DOHC 16v | 06.2001 - 08.2010 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | MATRIX 1.6 | DOHC 16v | 01.2002 - 12.2005 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | TIBURON 1.6 | DOHC 16v | 10.2006 - 12.2008 | G4ED | 4 | 4B1201H | 1599 cc | DOHC v16 | -.025 | 76.5 | 87.0 |
| Hyundai | ACCENT 1.4 | DOHC 16v | 02.2006 - 12.2013 | G4EE | 4 | 4B1201H | 1399 cc | DOHC v16 | -.025 | 75.5 | 78.1 |
| Hyundai | ACCENT III 1.4 | DOHC 16v | 11.2005 - 11.2010 | G4EE | 4 | 4B1201H | 1399 cc | DOHC v16 | -.025 | 75.5 | 78.1 |
| Hyundai | GETZ 1.4 | DOHC 16v | 08.2005 - 12.2010 | G4EE | 4 | 4B1201H | 1399 cc | DOHC v16 | -.025 | 75.5 | 78.1 |
| Hyundai | ACCENT I 1.3 | SOHC/OHC 12v | 10.1994 - 01.2000 | G4EH | 4 | 4B1201H | 1341 cc | SOHC/OHC v12 | -.025 | 71.5 | 83.5 |
| Hyundai | ACCENT II 1.3 | SOHC/OHC 12v | 05.2003 - 05.2006 | G4EH | 4 | 4B1201H | 1341 cc | SOHC/OHC v12 | -.025 | 71.5 | 83.5 |
| Hyundai | ACCENT I 1.5 | SOHC/OHC 12v | 10.1994 - 12.1997 | G4EK | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | ACCENT I 1.5 | SOHC/OHC 12v | 01.1998 - 12.2002 | G4EK | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | ACCENT I 1.5 | SOHC/OHC 12v | 10.1994 - 01.2000 | G4EK | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | ACCENT II 1.5 | SOHC/OHC 12v | 09.1999 - 10.2002 | G4EK | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | ACCENT II 1.5 | SOHC/OHC 12v | 01.2000 - 10.2002 | G4EK | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | ACCENT II 1.5 | SOHC/OHC 12v | 05.2002 - 05.2006 | G4EK | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | ACCENT II 1.5 | SOHC/OHC 12v | 01.2000 - 12.2006 | G4EK | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | ACCENT III 1.5 | SOHC/OHC 12v | 01.2008 - 11.2010 | G4EK | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | ACCENT 1.5 | SOHC/OHC 12v | 10.1994 - 12.1999 | G4EK | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | ACCENT 1.5 | SOHC/OHC 12v | 10.1994 - 01.2000 | G4EK | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | GETZ 1.5 | SOHC/OHC 12v | 06.2001 - 01.2004 | G4EK | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | LANTRA II 1.5 | SOHC/OHC 12v | 12.1996 - 09.2000 | G4EK | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | LANTRA II 1.5 | SOHC/OHC 12v | 04.1997 - 10.2000 | G4EK | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | S COUPE 1.5 | SOHC/OHC 12v | 09.1992 - 12.1995 | G4EK | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | S COUPE 1.5 | SOHC/OHC 12v | 01.1991 - 12.1995 | G4EK | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | S COUPE 1.5 | SOHC/OHC 12v | 04.1992 - 05.1996 | G4EK | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | S COUPE Turbo 1.5 | SOHC/OHC 12v | 04.1991 - 05.1996 | G4EKT | 4 | 4B1201H | 1495 cc | SOHC/OHC v12 | -.025 | 75.5 | 83.5 |
| Hyundai | ACCENT I 1.5 | DOHC 16v | 01.1997 - 12.2001 | G4FK | 4 | 4B1201H | 1495 cc | DOHC v16 | -.025 | 75.5 | 83.5 |
| Hyundai | ACCENT I 1.5 | DOHC 16v | 12.1995 - 01.2000 | G4FK | 4 | 4B1201H | 1495 cc | DOHC v16 | -.025 | 75.5 | 83.5 |
| Hyundai | ACCENT II 1.5 | DOHC 16v | 09.1999 - 10.2002 | G4FK | 4 | 4B1201H | 1495 cc | DOHC v16 | -.025 | 75.5 | 83.5 |
| Hyundai | ACCENT 1.5 | DOHC 16v | 04.1994 - 01.2000 | G4FK | 4 | 4B1201H | 1495 cc | DOHC v16 | -.025 | 75.5 | 83.5 |
| Hyundai | ACCENT 1.5 | DOHC 16v | 10.1995 - 01.2000 | G4FK | 4 | 4B1201H | 1495 cc | DOHC v16 | -.025 | 75.5 | 83.5 |
| Hyundai | LANTRA II 1.5 | DOHC 16v | 01.1995 - 12.2002 | G4FK | 4 | 4B1201H | 1495 cc | DOHC v16 | -.025 | 75.5 | 83.5 |
| Hyundai | LANTRA II 1.5 | DOHC 16v | 06.1997 - 12.2000 | G4FK | 4 | 4B1201H | 1495 cc | DOHC v16 | -.025 | 75.5 | 83.5 |
| Hyundai | LANTRA II 1.5 | DOHC 16v | 06.1995 - 10.2000 | G4FK | 4 | 4B1201H | 1495 cc | DOHC v16 | -.025 | 75.5 | 83.5 |
