ACL
4B7736HX-STD
4B7736HX-STD
Regular price
€155,75 EUR
Regular price
Sale price
€155,75 EUR
Quantity
Couldn't load pickup availability

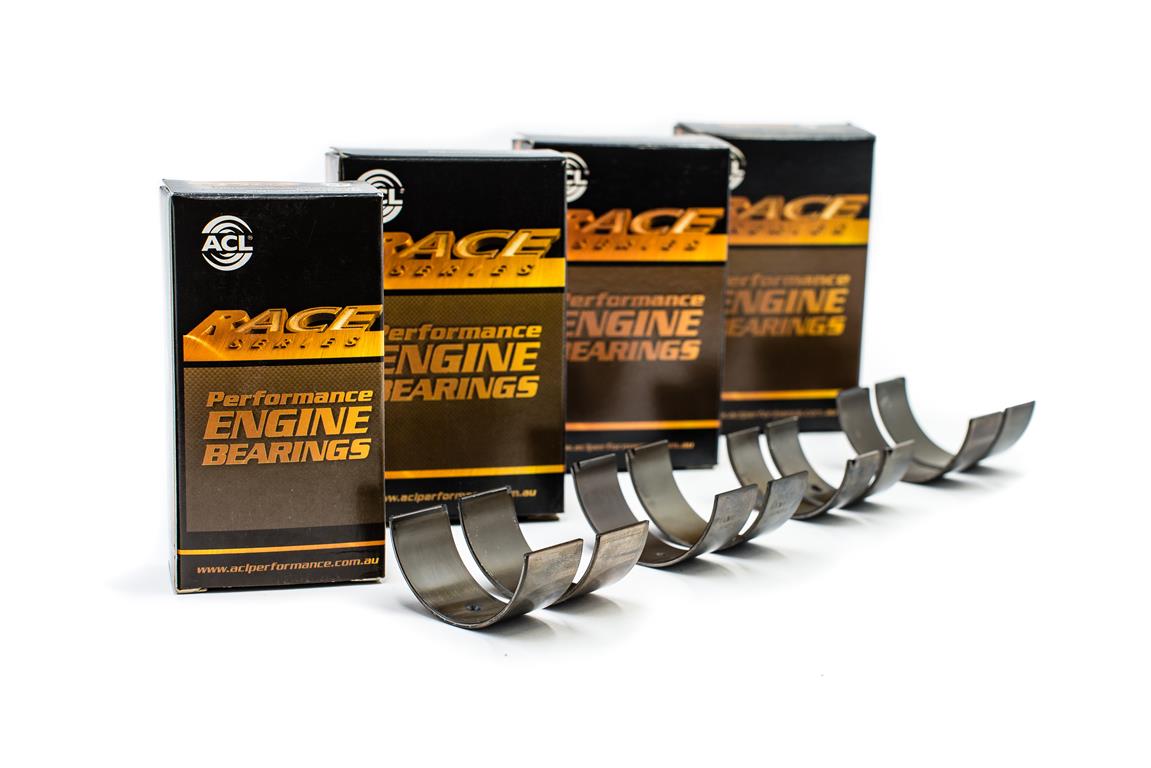

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Tunnel [mm] | 48.655 / 48.671 |
| Shaft [mm] | 44.975 / 44.991 |
| Max. Wall | 1.808 |
| Max. Length | 22.50 |
| Half type | Identical halves |
| Compatibility | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Citroën | Xsara (N1) | 1.8 | 05.1997 - | LFX (XU7JB) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | Xantia (X1_, X2_) | 1.8 | 05.1997 - | LFX (XU7JB) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | Berlingo / Berlingo FIRST Furgon/minivan (M_) | 1.8 | 05.1998 - 10.2002 | LFX (XU7JB) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | Xsara coupe (N0) | 1.8 | 02.1998 - 09.2000 | LFX (XU7JB) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | Xsara Break (N2) | 1.8 | 10.1997 - 09.2000 | LFX (XU7JB) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | Xantia Break (X1_, X2_) | 1.8 | 05.1997 - | LFX (XU7JB) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | Berlingo / Berlingo FIRST (MPV) | 1.8 | 05.1997 - | LFX (XU7JB) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | Berlingo / Berlingo FIRST (MPV) | 1.8 4WD | 05.1997 - | LFX (XU7JB) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 406 Break (8E/F) | 1.8 | 05.1997 - 10.2004 | LFX (XU7JB) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | Partner Furgon/minivan (5_, G_) | 1.8 | 03.1997 - 08.2000 | LFX (XU7JB) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 406 (8B) | 1.8 | 05.1997 - 05.2004 | LFX (XU7JB) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | Partner Platform / chassis (5_, G_) | 1.8 | 03.1997 - 08.2000 | LFX (XU7JB) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | Partner (MPV) (5_, G_) | 1.8 | 05.1997 - 12.2002 | LFX (XU7JB) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 806 (221) | 1.8 | 07.1995 - 08.2002 | LFW (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | Evasion (MPV) (22, U6) | 1.8 | 02.1996 - 12.1996 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | ZX (N2) | 1.8 | 03.1991 - 10.1997 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | Evasion (MPV) (22, U6) | 1.8 | 05.1997 - 07.2002 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | ZX (N2) | 1.8 | 07.1992 - 06.1997 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | Xantia (X1_, X2_) | 1.8 | 03.1993 - 01.1998 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | ZX Break (N2) | 1.8 | 10.1993 - 10.1997 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | Xantia Break (X1_, X2_) | 1.8 | 06.1995 - 01.1998 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | Xsara coupe (N0) | 1.8 | 02.1998 - 09.2000 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | Xsara Break (N2) | 1.8 Aut. | 10.1997 - 09.2000 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | Xsara (N1) | 1.8 Aut. | 04.1997 - 09.2000 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | Expert (224_) | 1.8 | 10.1996 - 09.2000 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 306 Break (7E, N3, N5) | 1.8 | 03.1997 - 04.2002 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 406 Break (8E/F) | 1.8 | 10.1996 - 03.1999 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 405 II (4B) | 1.8 | 08.1992 - 10.1995 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | Expert Furgon (222) | 1.8 | 10.1996 - 09.2000 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 306 (7B, N3, N5) | 1.8 | 06.1994 - 05.2001 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 306 Convertible (7D, N3, N5) | 1.8 | 05.1997 - 04.1999 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 306 liftback (7A, 7C, N3, N5) | 1.8 | 05.1993 - 05.2001 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 405 II (4B) | 1.8 | 08.1996 - 11.1999 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 306 liftback (7A, 7C, N3, N5) | 1.8 | 01.1993 - 08.1999 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 405 II Break (4E) | 1.8 | 08.1992 - 10.1996 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 306 Convertible (7D, N3, N5) | 1.8 | 03.1994 - 04.2002 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 406 (8B) | 1.8 | 10.1996 - 03.1999 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 306 (7B, N3, N5) | 1.8 | 01.1994 - 08.1999 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 306 liftback (7A, 7C, N3, N5) | 1.8 | 02.1993 - 09.1999 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 306 (7B, N3, N5) | 1.8 | 01.1998 - 09.1999 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Peugeot | 306 (7B, N3, N5) | 1.8 ST | 06.1994 - 05.2001 | LFZ (XU7JP) | 4 | 4B7736HX | 1761 cc | SOHC 8V | -STD | 83.0 | 81.4 |
| Citroën | ZX (N2) | 1.8 | 04.1996 - 10.1997 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Citroën | Xsara (N1) | 1.8 | 07.1997 - 08.2000 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Citroën | Xsara Break (N2) | 1.8 | 05.1998 - 08.2000 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Citroën | Xsara coupe (N0) | 1.8 | 01.1998 - 08.2000 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Citroën | Xsara Picasso (N68) | 1.8 SX | 06.2000 - 08.2005 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Citroën | Xsara (N1) | 1.8 | 04.1997 - 09.2000 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Citroën | Xantia (X1_, X2_) | 1.8 | 06.1995 - 12.2001 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Citroën | Xsara Break (N2) | 1.8 | 10.1997 - 09.2000 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Citroën | Xantia Break (X1_, X2_) | 1.8 | 06.1995 - 04.2003 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Citroën | Xsara coupe (N0) | 1.8 | 02.1998 - 09.2000 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Citroën | ZX (N2) | 1.8 | 01.1996 - 06.1997 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Citroën | ZX Break (N2) | 1.8 | 01.1996 - 02.1998 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Peugeot | 306 (7B, N3, N5) | 1.8 | 09.1997 - 12.2002 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Peugeot | 406 coupe (8C) | 1.8 | 10.1997 - 03.1999 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Peugeot | 306 Convertible (7D, N3, N5) | 1.8 | 05.1997 - 04.2002 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Peugeot | 406 Break (8E/F) | 1.8 | 10.1996 - 10.2000 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Peugeot | 306 liftback (7A, 7C, N3, N5) | 1.8 | 03.1997 - 10.2003 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Peugeot | 406 (8B) | 1.8 | 11.1995 - 10.2000 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Peugeot | 306 Break (7E, N3, N5) | 1.8 | 03.1997 - 07.2001 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Peugeot | 306 (7B, N3, N5) | 1.8 | 03.1997 - 07.2001 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Peugeot | 306 Break (7E, N3, N5) | 1.8 | 03.1997 - 04.2002 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Peugeot | 306 liftback (7A, 7C, N3, N5) | 1.8 | 07.1997 - 10.2000 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Peugeot | 306 (7B, N3, N5) | 1.8 | 07.1997 - 08.1999 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Peugeot | 306 (7B, N3, N5) | 1.8 | 03.1997 - 05.2001 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Peugeot | 306 (7B, N3, N5) | 1.8 | 10.1999 - 10.2003 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Peugeot | 306 liftback (7A, 7C, N3, N5) | 1.8 | 03.1997 - 05.2001 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Peugeot | 406 (8B) | 1.8 | 04.1999 - 05.2003 | LFY (XU7JP4) | 4 | 4B7736HX | 1761 cc | DOHC 16V | -STD | 83.0 | 81.4 |
| Peugeot | 406 Break (8E/F) | 2.0 16V | 01.1999 - 10.2000 | RFR (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 406 Coupe (8C) | 2.0 16V | 01.1999 - 10.2000 | RFR (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 406 (8B) | 2.0 16V | 01.1999 - 08.2000 | RFR (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 206 Hatchback (2A/C) | 2.0 S16 | 04.1999 - 10.2000 | RFR (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | Jumpy II (VF7) | 2.0 | 01.2007 - 03.2016 | RFH (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | Jumpy II Van | 2.0 | 01.2007 - 03.2016 | RFH (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | Expert Tepee (VF3X_) | 2.0 | 01.2007 - 03.2016 | RFH (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | Expert Van (VF3A_, VF3U_, VF3X_) | 2.0 | 01.2007 - 03.2016 | RFH (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C8 Van (EA_, EB_) | 2.0 16V | 06.2004 - 12.2011 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C5 III Break (RW_) | 2.0 16V | 04.2008 - 12.2012 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 II Saloon (NC_) | 2.0 16V | 09.2013 - | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 I Saloon | 2.0 16V | 07.2006 - 07.2011 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 I (LC_) | 2.0 16V | 11.2004 - 07.2011 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C5 II (RC_) | 2.0 16V | 03.2005 - 11.2007 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 I (LC_) | 2.0 16V | 09.2006 - 07.2009 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C8 (EA_, EB_) | 2.0 16V | 09.2005 - | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C5 II (RC_) | 2.0 16V | 09.2004 - 08.2008 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C5 III (RD_) | 2.0 16V | 02.2008 - 10.2014 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C5 III (RD_) | 2.0 16V | 04.2008 - 12.2012 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C5 II Estate Van (RE_) | 2.0 16V | 11.2004 - 01.2008 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C5 II Break (RE_) | 2.0 16V | 09.2004 - 01.2008 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C5 III Break (RW_) | 2.0 16V | 02.2008 - 06.2010 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C5 III (RD_) | 2.0 16V | 02.2008 - 12.2012 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 I Saloon | 2.0 16V | 07.2007 - 11.2014 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 II Saloon (NC_) | 2.0 16V | 09.2013 - 12.2016 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 II (NC_) | 2.0 16V | 02.2009 - 07.2013 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 II (NC_) | 2.0 16V | 01.2012 - 12.2015 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 I Saloon | 2.0 16V | 10.2008 - 07.2013 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 I Saloon | 2.0 16V | 10.2008 - 07.2013 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 Coupe (LA_) | 2.0 VTR | 10.2006 - 12.2007 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | Jumpy II (VF7) | 2.0 16V | 01.2007 - 03.2016 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 Picasso I MPV (UD_) | 2.0 16V | 09.2007 - 08.2013 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 Grand Picasso I (UA_) | 2.0 16V | 10.2006 - 08.2013 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 Grand Picasso I (UA_) | 2.0 16V | 05.2008 - 12.2013 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C5 III Break (RW_) | 2.0 16V | 02.2008 - 10.2014 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 307 Saloon | 2.0 16V | 03.2004 - 04.2009 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 308 I (4A_, 4C_) | 2.0 16V | 12.2011 - 12.2014 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 408 | 2.0 16V | 12.2014 - | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 308 SW I (4E_, 4H_) | 2.0 16V | 01.2008 - 12.2011 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 408 | 2.0 16V | 03.2011 - | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 307 (3A/C) | 2.0 16V | 08.2008 - 12.2011 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 307 Break (3E) | 2.0 16V | 03.2005 - 04.2008 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 307 CC (3B) | 2.0 16V | 10.2005 - 04.2009 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 407 SW (6E_, 6D_) | 2.0 16V | 08.2005 - 12.2010 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 307 SW (3H) | 2.0 16V | 03.2005 - 04.2008 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 307 CC (3B) | 2.0 16V | 12.2004 - 04.2009 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | Expert Van (VF3A_, VF3U_, VF3X_) | 2.0 16V | 01.2007 - | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 307 (3A/C) | 2.0 16V | 03.2005 - 11.2007 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 807 (EB_) | 2.0 16V | 09.2005 - | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 307 SW (3H) | 2.0 16V | 10.2005 - 12.2009 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | Expert Tepee (VF3X_) | 2.0 16V | 01.2007 - 03.2016 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 407 (6D_) | 2.0 16V | 09.2005 - 12.2010 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 407 SW (6E_, 6D_) | 2.0 16V | 01.2008 - 12.2010 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 308 I (4A_, 4C_) | 2.0 16V | 01.2008 - 12.2012 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 308 SW I (4E_, 4H_) | 2.0 16V | 01.2008 - 12.2011 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 308 I (4A_, 4C_) | 2.0 16V | 02.2012 - 12.2015 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 407 (6D_) | 2.0 16V | 09.2007 - 02.2011 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 308 CC (4B_) | 2.0 16V | 07.2009 - 12.2014 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 408 | 2.0 16V | 03.2011 - 12.2016 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 407 SW (6E_, 6D_) | 2.0 16V | 10.2005 - 02.2011 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 307 Saloon | 2.0 16V | 08.2008 - 04.2009 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 407 (6D_) | 2.0 16V | 10.2005 - 02.2011 | RFJ (EW10A) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C5 I (DC_) | 2.0 HPi 16V | 03.2001 - 08.2004 | RLZ (EW10D) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C5 I Break (DE_) | 2.0 HPi 16V | 06.2001 - 08.2004 | RLZ (EW10D) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 406 (8B) | 2.0 HPi 16V | 05.2001 - 05.2004 | RLZ (EW10D) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 406 Break (8E/F) | 2.0 HPi 16V | 05.2001 - 10.2004 | RLZ (EW10D) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 206 Hatchback (2A/C) | 2.0 HPi 16V | 10.2000 - | RLZ (EW10D) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | Jumpy I Platform/Chassis (BU_, BV_, BW_, BX_) | 2.0 16V | 12.2003 - 10.2006 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | Jumpy I Van (BS_, BT_, BY_, BZ_) | 2.0 16V | 04.2000 - 10.2006 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | Xsara Picasso (N68) | 2.0 16V | 02.2004 - 10.2004 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | Jumpy I (U6U_) | 2.0 16V | 04.2000 - 12.2006 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C8 (EA_, EB_) | 2.0 16V | 07.2002 - | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C8 Van (EA_, EB_) | 2.0 16V | 11.2003 - 11.2004 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 I (LC_) | 2.0 16V | 01.2007 - 11.2014 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 I Saloon | 2.0 16V | 06.2007 - 11.2014 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 I (LC_) | 2.0 16V | 11.2004 - 07.2007 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | Xsara (N1) | 2.0 16V | 09.2000 - 03.2005 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | Xsara Break (N2) | 2.0 16V | 09.2000 - 08.2005 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | Xsara Coupe (N0) | 2.0 16V | 09.2000 - 03.2005 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | Evasion MPV (22, U6) | 2.0 16V | 05.2000 - 07.2002 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | Xsara Picasso (N68) | 2.0 16V | 01.2003 - 06.2012 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 Coupe (LA_) | 2.0 16V | 11.2004 - 07.2007 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | Xsara Picasso (N68) | 2.0 16V | 12.1999 - 11.2011 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C5 I (DC_) | 2.0 16V | 03.2001 - 08.2004 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C5 I Break (DE_) | 2.0 16V | 06.2001 - 08.2004 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | Jumpy I (U6U_) | 2.0 16V | 03.2000 - 10.2006 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | Jumpy I Van (BS_, BT_, BY_, BZ_) | 2.0 16V | 03.2000 - 10.2006 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 Picasso I MPV (UD_) | 2.0 16V | 05.2008 - 05.2013 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | Expert (224_) | 2.0 16V | 07.2000 - 12.2006 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 807 (EB_) | 2.0 16V | 06.2002 - | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 307 Break (3E) | 2.0 16V | 03.2002 - 06.2005 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 407 SW (6E_, 6D_) | 2.0 16V | 05.2004 - 07.2005 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 607 (9D, 9U) | 2.0 16V | 02.2000 - 08.2005 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 307 (3A/C) | 2.0 16V | 08.2008 - 12.2011 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | Expert Van (222) | 2.0 16V | 09.2002 - 12.2006 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 407 (6D_) | 2.0 16V | 03.2004 - 07.2005 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 806 Van (AF_) | 2.0 16V | 05.2000 - 02.2003 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 307 SW (3H) | 2.0 16V | 03.2002 - 06.2005 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 406 (8B) | 2.0 16V | 08.2000 - 06.2004 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 406 Break (8E/F) | 2.0 16V | 10.2000 - 10.2004 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 406 Coupe (8C) | 2.0 16V | 10.2000 - 12.2004 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 806 (221) | 2.0 16V | 09.2000 - 08.2002 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 206 SW (2E/K) | 2.0 16V | 07.2002 - 02.2007 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 307 CC (3B) | 2.0 16V | 10.2003 - 06.2005 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 307 (3A/C) | 2.0 16V | 08.2000 - 06.2005 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 206 CC (2D) | 2.0 S16 | 09.2000 - 12.2007 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 206 Hatchback (2A/C) | 2.0 S16 | 06.1999 - 12.2007 | RFN (EW10J4) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 Coupe (LA_) | 2.0 16V | 11.2004 - 12.2010 | RFK (EW10J4S) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C4 I (LC_) | 2.0 16V | 11.2004 - 07.2008 | RFK (EW10J4S) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 307 (3A/C) | 2.0 16V | 06.2005 - 11.2007 | RFK (EW10J4S) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 307 CC (3B) | 2.0 16V | 10.2003 - 04.2009 | RFK (EW10J4S) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Peugeot | 206 Hatchback (2A/C) | 2.0 RC | 07.2003 - 12.2007 | RFK (EW10J4S) | 4 | 4B7736HX | 1997 cc | DOHC 16V | -STD | 85.0 | 88.0 |
| Citroën | C5 II (RC_) | 1.8 16V | 09.2005 - 01.2008 | 6FY (EW7A) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Citroën | C5 III (RD_) | 1.8 16V | 02.2008 - 10.2010 | 6FY (EW7A) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Citroën | C5 II Break (RE_) | 1.8 16V | 09.2005 - 01.2008 | 6FY (EW7A) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Citroën | C4 Picasso I MPV (UD_) | 1.8 16V | 01.2009 - 10.2012 | 6FY (EW7A) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Citroën | C4 Picasso I MPV (UD_) | 1.8 16V | 02.2007 - 12.2011 | 6FY (EW7A) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Citroën | C4 Grand Picasso I (UA_) | 1.8 16V | 10.2006 - 12.2010 | 6FY (EW7A) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Citroën | C5 III Break (RW_) | 1.8 16V | 02.2008 - 10.2010 | 6FY (EW7A) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Citroën | C4 Grand Picasso I (UA_) | 1.8 16V | 06.2009 - 01.2013 | 6FY (EW7A) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Peugeot | 407 SW (6E_, 6D_) | 1.8 16V | 08.2005 - 12.2010 | 6FY (EW7A) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Peugeot | 407 (6D_) | 1.8 16V | 08.2005 - 12.2010 | 6FY (EW7A) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Citroën | Xsara Coupe (N0) | 1.8 16V | 09.2000 - 10.2004 | 6FZ (EW7J4) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Citroën | Xsara Picasso (N68) | 1.8 16V | 02.2000 - 08.2005 | 6FZ (EW7J4) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Citroën | C5 I (DC_) | 1.8 16V | 03.2001 - 08.2004 | 6FZ (EW7J4) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Citroën | C5 I Break (DE_) | 1.8 16V | 06.2001 - 08.2004 | 6FZ (EW7J4) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Citroën | C5 II (RC_) | 1.8 16V | 09.2004 - 08.2005 | 6FZ (EW7J4) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Citroën | C5 II Estate Van (RE_) | 1.8 16V | 09.2004 - 08.2005 | 6FZ (EW7J4) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Citroën | C5 II Break (RE_) | 1.8 16V | 09.2004 - 08.2005 | 6FZ (EW7J4) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Citroën | Xsara (N1) | 1.8 VTS | 08.1998 - 10.2004 | 6FZ (EW7J4) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Peugeot | 407 SW (6E_, 6D_) | 1.8 16V | 05.2004 - 07.2005 | 6FZ (EW7J4) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Peugeot | 407 (6D_) | 1.8 16V | 03.2004 - 07.2005 | 6FZ (EW7J4) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Peugeot | 406 Break (8E/F) | 1.8 16V | 10.2000 - 10.2004 | 6FZ (EW7J4) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Peugeot | 406 (8B) | 1.8 16V | 10.2000 - 05.2004 | 6FZ (EW7J4) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Peugeot | 406 (8B) | 1.8 16V | 09.2000 - 05.2004 | 6FZ (EW7J4) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
| Peugeot | 406 Break (8E/F) | 1.8 16V | 10.2000 - 02.2004 | 6FZ (EW7J4) | 4 | 4B7736HX | 1749 cc | DOHC 16V | -STD | 82.7 | 81.4 |
