ACL

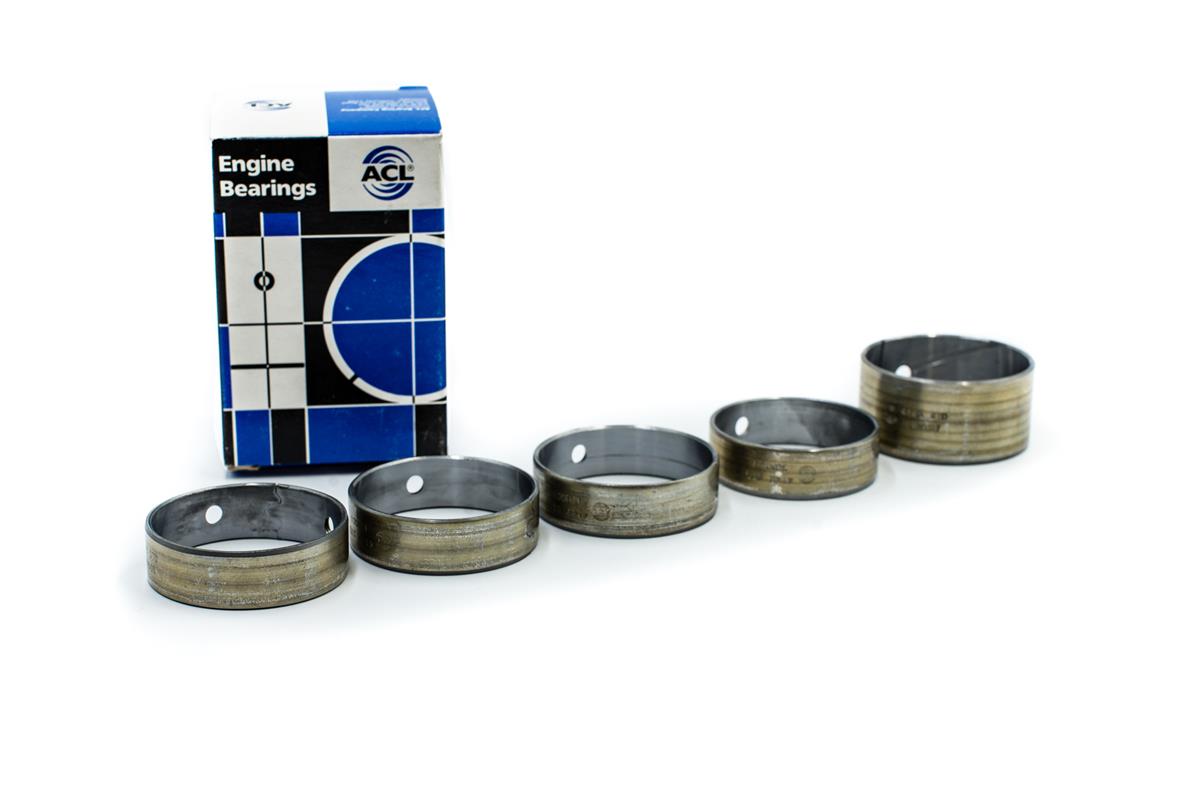

5C3346C-STD
5C3346C-STD
Regular price
€78,98 EUR
Regular price
Sale price
€78,98 EUR
Quantity
Couldn't load pickup availability
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Note | All housing bores constant at 1.9990""-2.000""/50.775-50.800mm (High Performance). |
| Compatibility | |||||
|---|---|---|---|---|---|
| Chevrolet | Nova, Monza | OHV 16v (1975-76) | 262 | 5C3346C | -STD |
| Chevrolet | Bel Air, Corvette, Truck | OHV 16v (1955-57) | 265 | 5C3346C | -STD |
| Chevrolet | Caprice | OHV 16v (1994-96) | 265 L99 | 5C3346C | -STD |
| Chevrolet | Caprice, Camaro, El Camino, Malibu, Firebird, Lemans, Parisienne . | OHV 16v (1979-82) | 267 | 5C3346C | -STD |
| Chevrolet | Bel Air, Caprice, Chevelle, Corvette, Daytona, El Camino, Impala, Nova . | OHV 16v (1955-69) | 283 | 5C3346C | -STD |
| Chevrolet | Camaro | OHV 16v Large Pin (1968) | 302 | 5C3346C | -STD |
| Chevrolet | Camaro | OHV 16v Small Pin (1967) | 302 | 5C3346C | -STD |
| Chevrolet | Bel Air, Blazer, Bonneville, Camaro, Corvette, Firebird, Impala, Lemans, Monza, Nova, Pickup, Starfire, Sunbird . | OHV 16v (1977-2002) | 305 | 5C3346C | -STD |
| Chevrolet | Bel Air, Bonneville, Chevelle, Camaro, Impala, Pickup . | OHV 16v (1968-73) | 307 | 5C3346C | -STD |
| Chevrolet | Bel Air, Camaro, Caprice, Chevelle, Corvette, El Camino, Impala, Pickup . | OHV 16v Small Pin (1962-69) | 327 | 5C3346C | -STD |
| Chevrolet | C Series, Camaro, Caprice, Chevelle, Corvette, El Camino, Impala, K Series | OHV 16v Large Pin (1968-69) | 327 | 5C3346C | -STD |
| Chevrolet | Bel Air, Bonneville, C Series, Camaro, Corvette, Firebird, Impala, K Series, Lemans, Suburban, Tahoe . | OHV 16v (1967-2003) | 350 | 5C3346C | -STD |
| Chevrolet | Bel Air, Chevelle, El Camino, Impala, K Series, Monte Carlo . | OHV 16v (1970-80) | 400 | 5C3346C | -STD |
| Holden | Brougham, Kingswood, Monaro, Premier HK, HT | OHV 16v | Chevrolet 307 | 5C3346C | -STD |
| Holden | Brougham, Kingswood, Monaro HK | OHV 16v | Chevrolet 327 | 5C3346C | -STD |
| Holden | Brougham, Kingswood, Monaro HG, HQ, HT, Statesman HQ | OHV 16v | Chevrolet 350 | 5C3346C | -STD |
