ACL

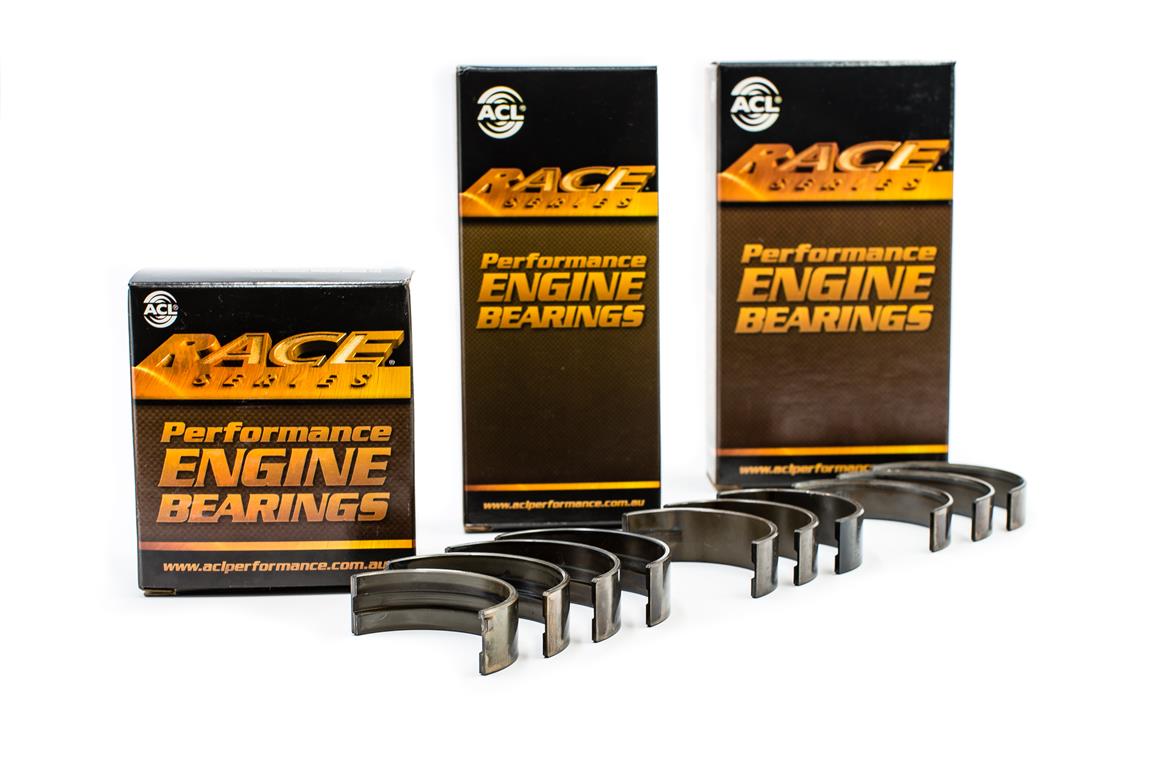

5M590H-009
5M590H-009
Regular price
€210,96 EUR
Regular price
Sale price
€210,96 EUR
Quantity
Couldn't load pickup availability
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Tunnel [mm] | 62.006/62.027 |
| Shaft [mm] | 57.104/57.125 |
| Max. Wall | 2.431 |
| Max. Length | 22.48 |
| Half type | Upper & lower |
| Compatibility | |||||
|---|---|---|---|---|---|
| Ford | Fairlane 1963 | OHV 16v | 260 | 5M590H | -9 |
| Ford | Fairlane ZA, Fairmont XR, Falcon XP, XR,� Galaxie, Mustang | OHV 16v | 289 | 5M590H | -9 |
| Ford | Fairlane ZA, ZB, ZC, ZD, Fairmont XT, XW, Falcon XT, XW, XY, Mustang | OHV 16v | 302 Windsor | 5M590H | -9 |
| Ford | Bronco | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | F100 | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | F150 | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Fairlane AU | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Fairlane II | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Fairlane III | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Fairlane NB | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Fairlane NC | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Fairlane NF | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Fairlane NL | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Fairmont AU | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Fairmont II | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Fairmont III | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Fairmont EB | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Fairmont ED | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Fairmont EF | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Fairmont EL | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Fairmont LTD | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Falcon AU | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Falcon II | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Falcon III | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Falcon EB | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Falcon ED | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Falcon EF | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Falcon EL | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
| Ford | Falcon LTD | OHV 16v | 5.0L Windsor EFI | 5M590H | -9 |
