ACL
5M7299H-STD
5M7299H-STD
Regular price
€371,07 EUR
Regular price
Sale price
€371,07 EUR
Quantity
Couldn't load pickup availability

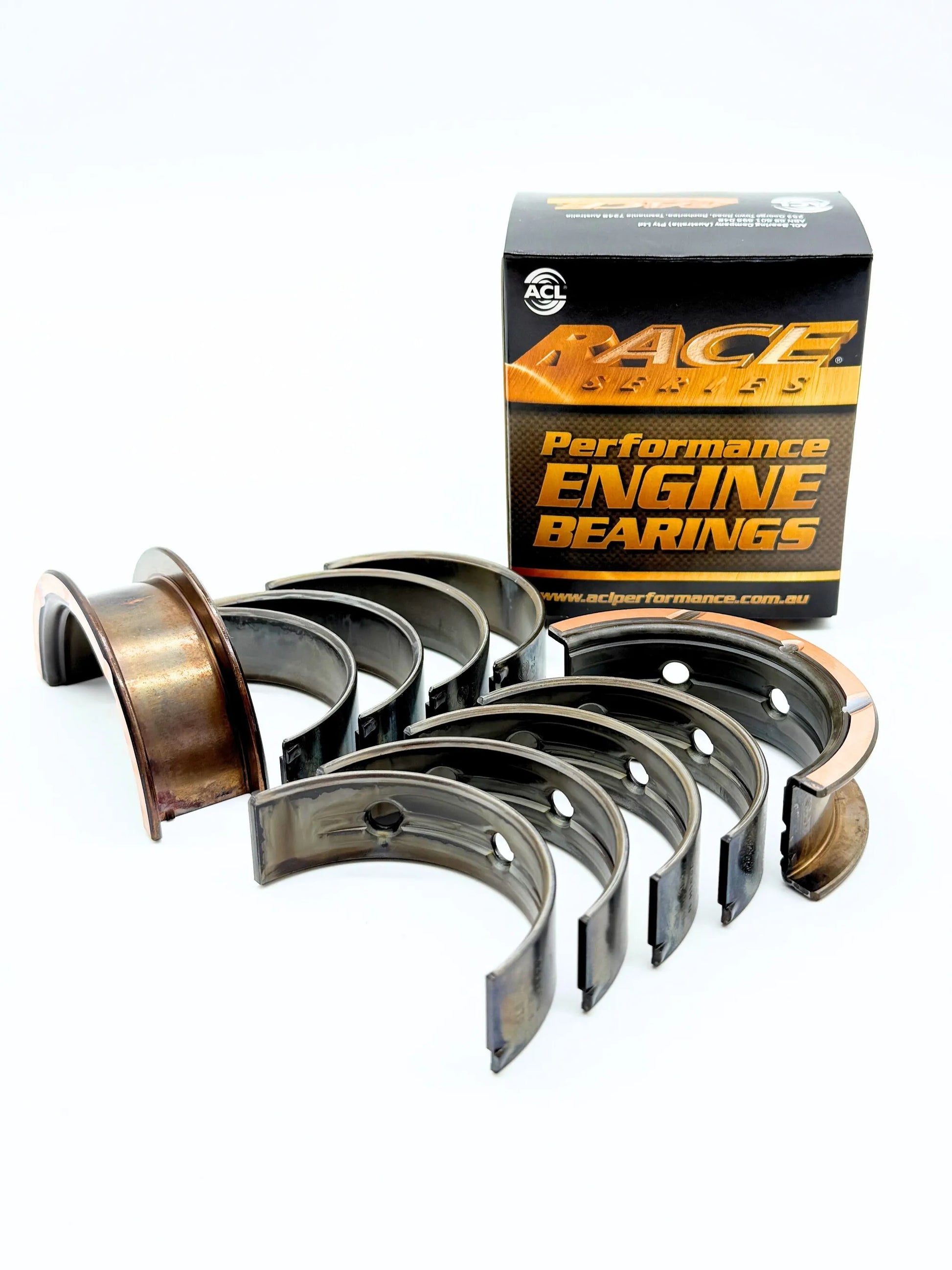

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
| Half type | Upper & lower |
| Note | 120° Groove. |
| Compatibility | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Chevrolet | Silverado 1500, Sonora, Tahoe | 4.8 V8 | 09.1998-12.2007 | LR4 (Vortec) | 8 | 5M7299H | 4811 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 96.0 | 83.0 | 668fb7c99b85f69cd307561a |
| GMC | Sierra 1500, Yukon | 4.8 V8 | 09.1998-12.2007 | LR4 (Vortec) | 8 | 5M7299H | 4811 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 96.0 | 83.0 | 668fb7c99b85f69cd307561a |
| Chevrolet | Avalanche, Silverado 1500, Silverado 2500, Sonora, Tahoe, Suburban | 5.3 V8 | 09.2001-12.2007 | LM7 (Vortec) | 8 | 5M7299H | 5328 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 96.0 | 92.0 | 668fb7c99b85f69cd307561a |
| GMC | Sierra 1500, Sierra 2500, Yukon, Suburban | 5.3 V8 | 10.1998-12.2007 | LM7 (Vortec) | 8 | 5M7299H | 5328 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 96.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Cadillac | Escalade | 5.3 V8 | 09.2001-12.2005 | LM7 (Vortec) | 8 | 5M7299H | 5328 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 96.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Chevrolet | Avalanche, Silverado 1500, Suburban, Sonora, Tahoe | 5.3 V8 | 09.1999-12.2007 | L59 (Vortec) | 8 | 5M7299H | 5328 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 96.0 | 92.0 | 668fb7c99b85f69cd307561a |
| GMC | Sierra 1500, Yukon | 5.3 V8 | 09.2001-12.2006 | L59 (Vortec) | 8 | 5M7299H | 5328 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 96.0 | 92.0 | 668fb7c99b85f69cd307561a |
| GMC | Envoy | 5.3 V8 | 09.2002-12.2009 | LM4 (Vortec) | 8 | 5M7299H | 5328 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 96.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Buick | Rainer | 5.3 V8 | 09.2003-12.2007 | LM4 (Vortec) | 8 | 5M7299H | 5328 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 96.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Chevrolet | SSR, Trailblazer | 5.3 V8 | 09.2002-12.2009 | LM4 (Vortec) | 8 | 5M7299H | 5328 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 96.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Isuzu | Ascender | 5.3 V8 | 09.2002-12.2007 | LM4 (Vortec) | 8 | 5M7299H | 5328 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 96.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Chevrolet | Silverado 1500 | 5.3 V8 | 09.2004-12.2006 | L33 (325CUV8)(Vortec) | 8 | 5M7299H | 5328 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 96.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Chevrolet | Camaro, Caprice, Corvette, Impala, Lumina, Monza | 5.7 V8 | 09.1997-09.2007 | LS1 | 8 | 5M7299H | 5666 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 99.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Holden | Adventra, Berlina, Calais, Caprice, Commodore, Crewman, Monaro, Statesman, | 5.7 V8 | 09.1997-09.2007 | LS1 | 8 | 5M7299H | 5666 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 99.0 | 92.0 | 668fb7c99b85f69cd307561a |
| HSV | Avalanche, Clubsport, Grange, GTO, GTS, Maloo, Senator, SV300, | 5.7 V8 | 09.1997-09.2007 | LS1 | 8 | 5M7299H | 5666 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 99.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Pontiac | Firebird, GTO | 5.7 V8 | 09.1995-12.2002 | LS1 | 8 | 5M7299H | 5666 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 99.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Vauxhall | Monaro | 5.7 V8 | 04.2004-08.2005 | LS1 | 8 | 5M7299H | 5666 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 99.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Cadillac | CTS | 5.7 V8 | 01.2004-09.2007 | LS6 (346CUV8) | 8 | 5M7299H | 5666 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 99.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Chevrolet | Corvette | 5.7 V8 | 09.2000-12.2004 | LS6 (346CUV8) | 8 | 5M7299H | 5666 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 99.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Chevrolet | Silverado 1500, Silverado 2500, Silverado 3500, Suburban, Tahoe | 6.0 V8 | 01.1999-12.2007 | LQ4 (364CUV8) | 8 | 5M7299H | 5967 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 101.6 | 92.0 | 668fb7c99b85f69cd307561a |
| GMC | Sierra 1500, Sierra 2500, Sierra 3500, Yukon | 6.0 V8 | 01.1999-12.2007 | LQ4 (364CUV8) | 8 | 5M7299H | 5967 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 101.6 | 92.0 | 668fb7c99b85f69cd307561a |
| Cadillac | Escalade | 6.0 V8 | 10.2000-12.2006 | LQ9 (364CUV8) | 8 | 5M7299H | 5967 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 101.6 | 92.0 | 668fb7c99b85f69cd307561a |
| Chevrolet | Camaro, Silverado 1500, Silverado 2500 | 6.0 V8 | 10.2002-12.2007 | LQ9 (364CUV8) | 8 | 5M7299H | 5967 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 101.6 | 92.0 | 668fb7c99b85f69cd307561a |
| GMC | Sierra 1500, Sierra 2500 | 6.0 V8 | 10.2002-12.2007 | LQ9 (364CUV8) | 8 | 5M7299H | 5967 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 101.6 | 92.0 | 668fb7c99b85f69cd307561a |
| Chevrolet | Silverado 1500, Silverado 2500, Tahoe | 4.8 V8 | 06.2005-12.2009 | LY2 (294CUV8) | 8 | 5M7299H | 4811 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 96.0 | 83.0 | 668fb7c99b85f69cd307561a |
| GMC | Sierra 1500, Yukon | 4.8 V8 | 06.2007-12.2009 | LY2 (294CUV8) | 8 | 5M7299H | 4811 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 96.0 | 83.0 | 668fb7c99b85f69cd307561a |
| Chevrolet | Silverado 1500, Tahoe | 6.0 Hybrid | 09.2009-12.2012 | LFA (364CUV8) | 8 | 5M7299H | 5967 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 101.6 | 91.9 | 668fb7c99b85f69cd307561a |
| Holden | Berlina, Commodore, Crewman | 6.0 V8 | 11.2005-07.2006 | LS2 (364CUV8) | 8 | 5M7299H | 5967 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 101.6 | 91.9 | 668fb7c99b85f69cd307561a |
| HSV | Clubsport, Grange, GTO, GTS, Maloo, Senator | 6.0 V8 | 09.2004-03.2008 | LS2 (364CUV8) | 8 | 5M7299H | 5967 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 101.6 | 91.9 | 668fb7c99b85f69cd307561a |
| Pontiac | GTO | 6.0 V8 | 09.2004-12.2006 | LS2 (364CUV8) | 8 | 5M7299H | 5967 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 101.6 | 91.9 | 668fb7c99b85f69cd307561a |
| Vauxhall | Monaro, VXR8 | 6.0 V8 | 01.2005-04.2007 | LS2 (364CUV8) | 8 | 5M7299H | 5967 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 101.6 | 91.9 | 668fb7c99b85f69cd307561a |
| Chevrolet | Corvette, Trailblazer | 6.0 V8 | 09.2004-12.2009 | LS2 (364CUV8) | 8 | 5M7299H | 5967 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 101.6 | 91.9 | 668fb7c99b85f69cd307561a |
| Cadillac | CTS | 6.0 V8 | 09.2005-09.2007 | LS2 (364CUV8) | 8 | 5M7299H | 5967 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 101.6 | 91.9 | 668fb7c99b85f69cd307561a |
| GMC | Yukon XL | 6.0 V8 | 09.2006-12.2009 | LS2 (364CUV8) | 8 | 5M7299H | 5967 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 101.6 | 91.9 | 668fb7c99b85f69cd307561a |
| Chevrolet | Camaro, Cheyenne | 6.2 V8 | 09.2009- | L99 (376CUV8) | 8 | 5M7299H | 6162 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 103.2 | 92.0 | 668fb7c99b85f69cd307561a |
| HSV | Clubsport, Grange, GTS, Maloo, Senator | 6.2 V8 | 05.2013-12.2016 | LS3 (376CUV8) | 8 | 5M7299H | 6162 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 103.2 | 92.0 | 668fb7c99b85f69cd307561a |
| Chevrolet | Camaro, Corvette, Lumina, SS | 6.2 V8 | 03.2006-08.2013 | LS3 (376CUV8) | 8 | 5M7299H | 6162 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 103.2 | 92.0 | 668fb7c99b85f69cd307561a |
| Holden | Calais, Caprice, Commodore | 6.2 V8 | 09.2015-10.2017 | LS3 (376CUV8) | 8 | 5M7299H | 6162 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 103.2 | 92.0 | 668fb7c99b85f69cd307561a |
| Pontiac | G8 | 6.2 V8 | 09.2008-12.2009 | LS3 (376CUV8) | 8 | 5M7299H | 6162 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 103.2 | 92.0 | 668fb7c99b85f69cd307561a |
| Vauxhall | VXR8 | 6.2 V8 | 04.2008- | LS3 (376CUV8) | 8 | 5M7299H | 6162 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 103.2 | 92.0 | 668fb7c99b85f69cd307561a |
| Cadillac | Escalade | 6.2 V8 | 10.2006-12.2014 | L92 (376CUV8) | 8 | 5M7299H | 6162 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 103.0 | 92.0 | 668fb7c99b85f69cd307561a |
| GMC | Sierra 1500, Yukon | 6.2 V8 | 09.2006-07.2014 | L92 (376CUV8) | 8 | 5M7299H | 6162 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 103.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Cadillac | Escalade | 6.2 V8 | 10.2006-12.2014 | L9H (376CUV8) | 8 | 5M7299H | 6162 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 103.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Chevrolet | Silverado 1500, Tahoe | 6.2 V8 | 09.2008-12.2009 | L9H (376CUV8) | 8 | 5M7299H | 6162 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 103.0 | 92.0 | 668fb7c99b85f69cd307561a |
| GMC | Sierra 1500, Yukon | 6.2 V8 | 09.2008- | L9H (376CUV8) | 8 | 5M7299H | 6162 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 103.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Cadillac | Escalade | 6.2 V8 | 10.2006-12.2014 | L94 (376CUV8) | 8 | 5M7299H | 6162 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 103.0 | 92.0 | 668fb7c99b85f69cd307561a |
| GMC | Yukon | 6.2 V8 | 09.2008-07.2014 | L94 (376CUV8) | 8 | 5M7299H | 6162 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 103.0 | 92.0 | 668fb7c99b85f69cd307561a |
| Cadillac | Escalade | 6.0 Hybrid | 09.2010-12.2013 | LZ1 (364CUV8) | 8 | 5M7299H | 5967 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 101.6 | 91.9 | 668fb7c99b85f69cd307561a |
| Chevrolet | Silverado 1500, Tahoe | 6.0 Hybrid | 09.2009-12.2013 | LZ1 (364CUV8) | 8 | 5M7299H | 5967 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 101.6 | 91.9 | 668fb7c99b85f69cd307561a |
| GMC | Sierra 1500, Yukon | 6.0 Hybrid | 09.2009-12.2013 | LZ1 (364CUV8) | 8 | 5M7299H | 5967 cc | OHV 16V | -STD | Shortened grooving in comparision to 5M7298H. Plain lower and shorter upper half groove of approximately 120 degrees. | 101.6 | 91.9 | 668fb7c99b85f69cd307561a |
