Pedders AHC Suspension Conversion Kit Toyota LandCruiser 100 Series / Amazon (4.5 Petrol & 4.2 Diesel)

This kit replaces the factory-fitted AHC (Automatic Height Control) suspension system on Toyota LandCruiser 100 Series vehicles with a conventional coil spring and torsion bar setup. It is designed to eliminate AHC faults and restore consistent ride quality.

Key Features

• Complete conversion kit with all components included
• Eliminates common AHC faults and costly repairs
• Engineered as a fully integrated suspension solution
• Variants available for standard use, towing, and lifting
• Backed by a 2-Year / 25,000-mile warranty

Product Overview

The Pedders conversion kit provides a reliable alternative to the complex and aging hydraulic AHC suspension system by using traditional coil springs, torsion bars and shocks. This results in a more predictable ride quality and eases maintenance and repairs.

Available in multiple variants, the kit accommodates unladen vehicles, light to moderate towing, and heavy-duty load carrying with options for rear lift springs and heavy-duty shocks. This makes it suitable for a range of use cases from daily driving to demanding load and towing conditions.

Technology & Materials

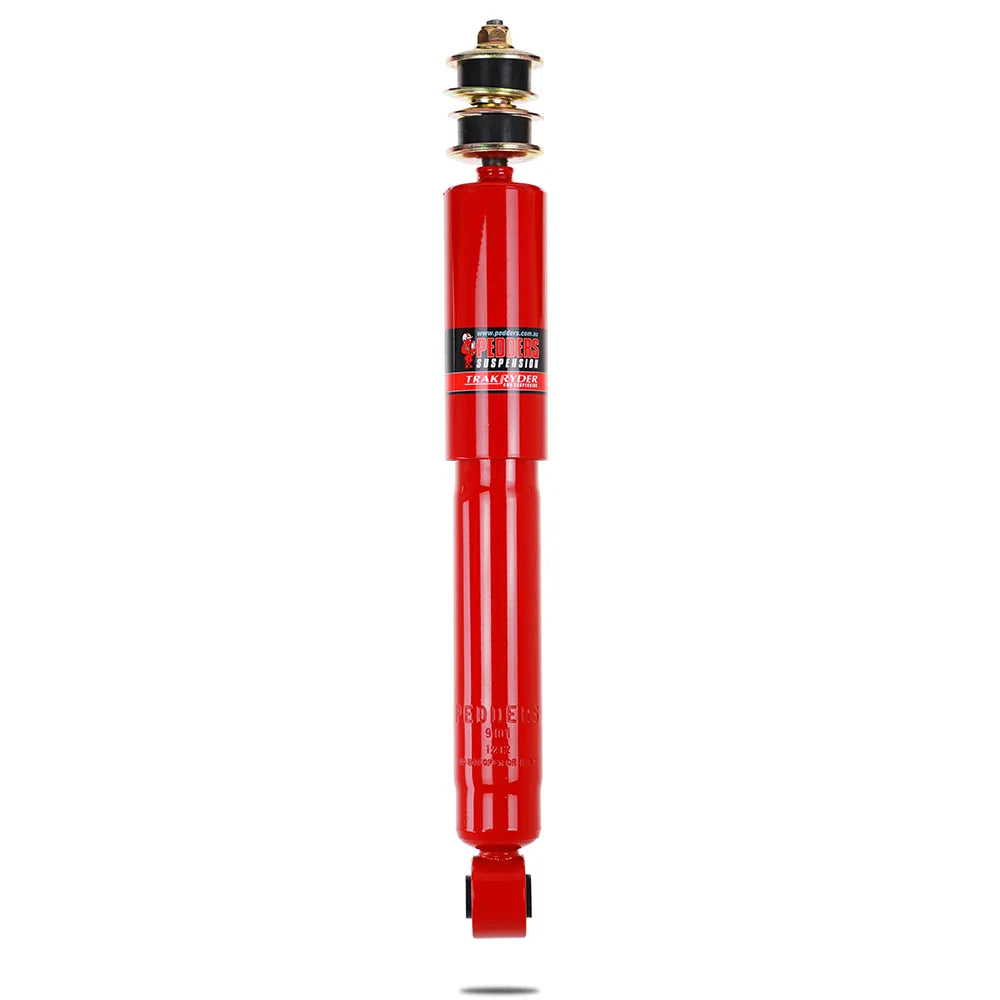

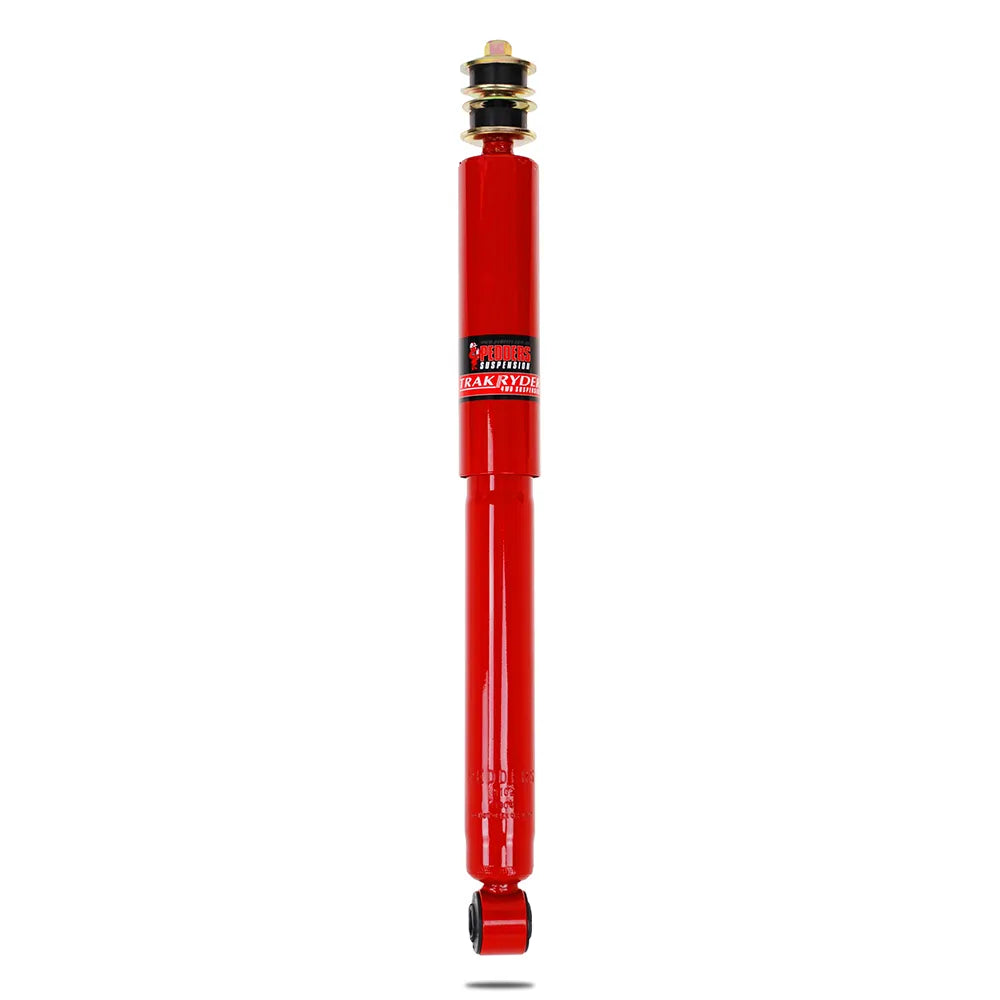

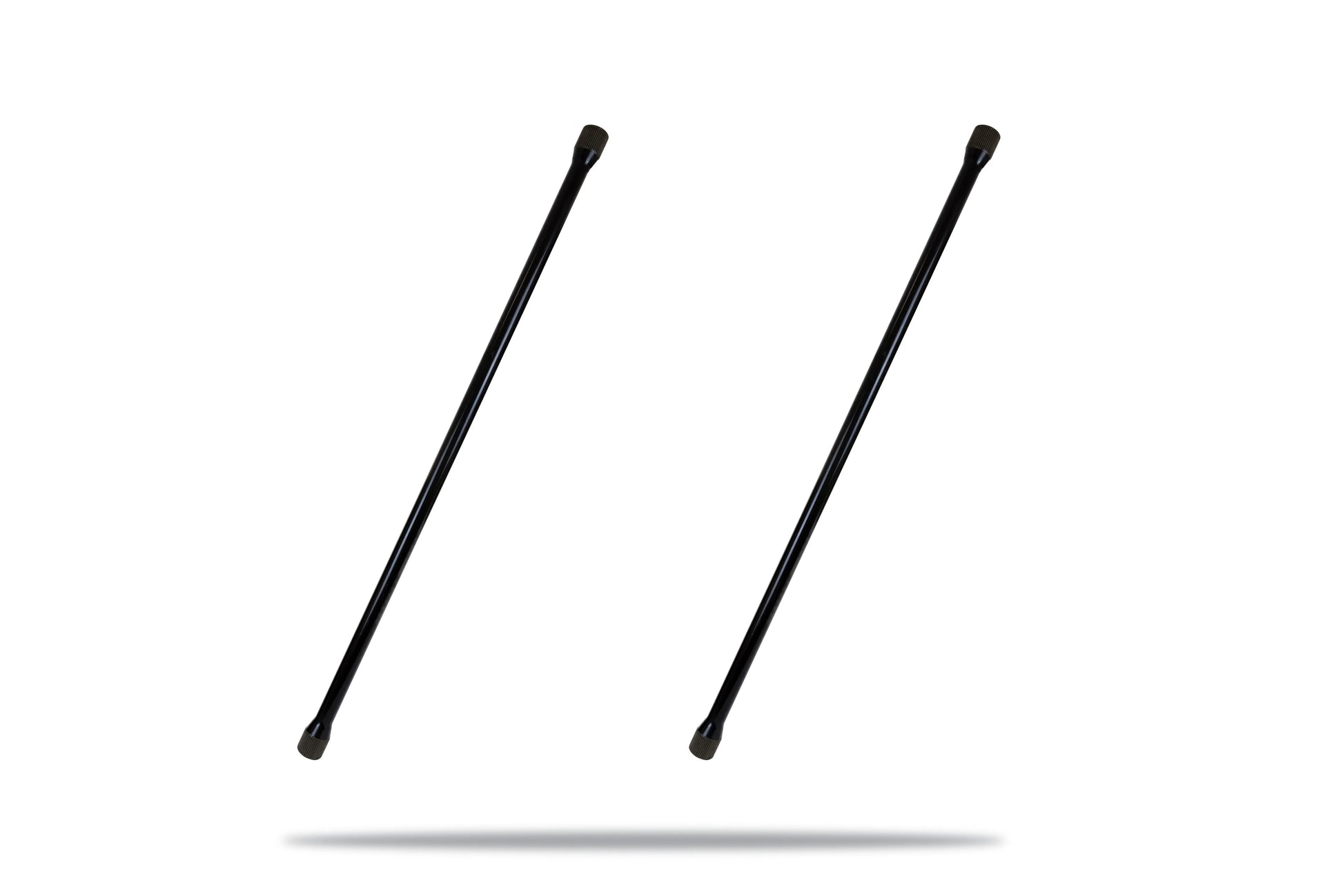

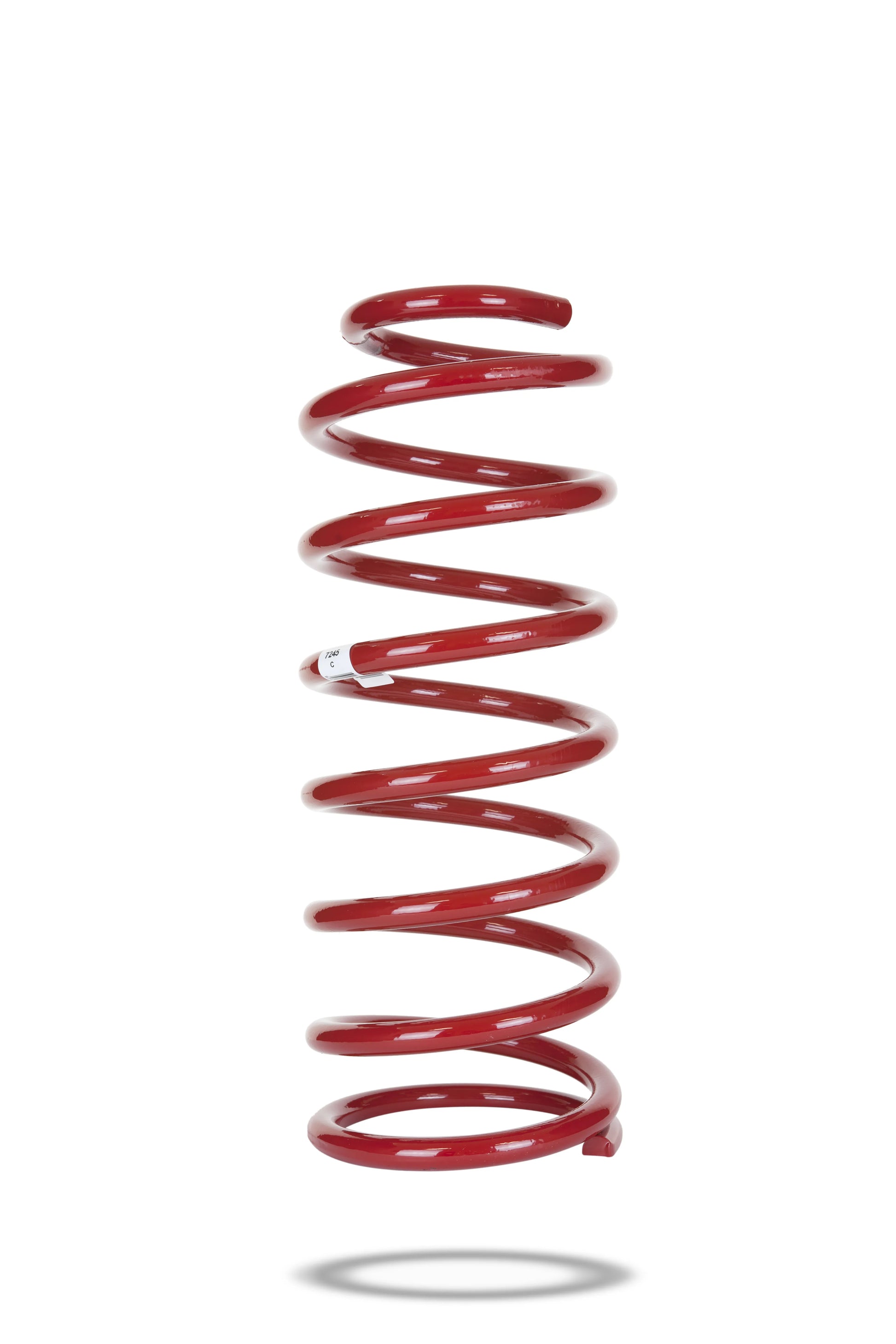

The kit includes front torsion bars, reinforced torsion bar mounts, rear coil springs and matching shock absorbers for front and rear. It is designed as a fully integrated system optimised to replace the AHC components.

Installation & Compatibility

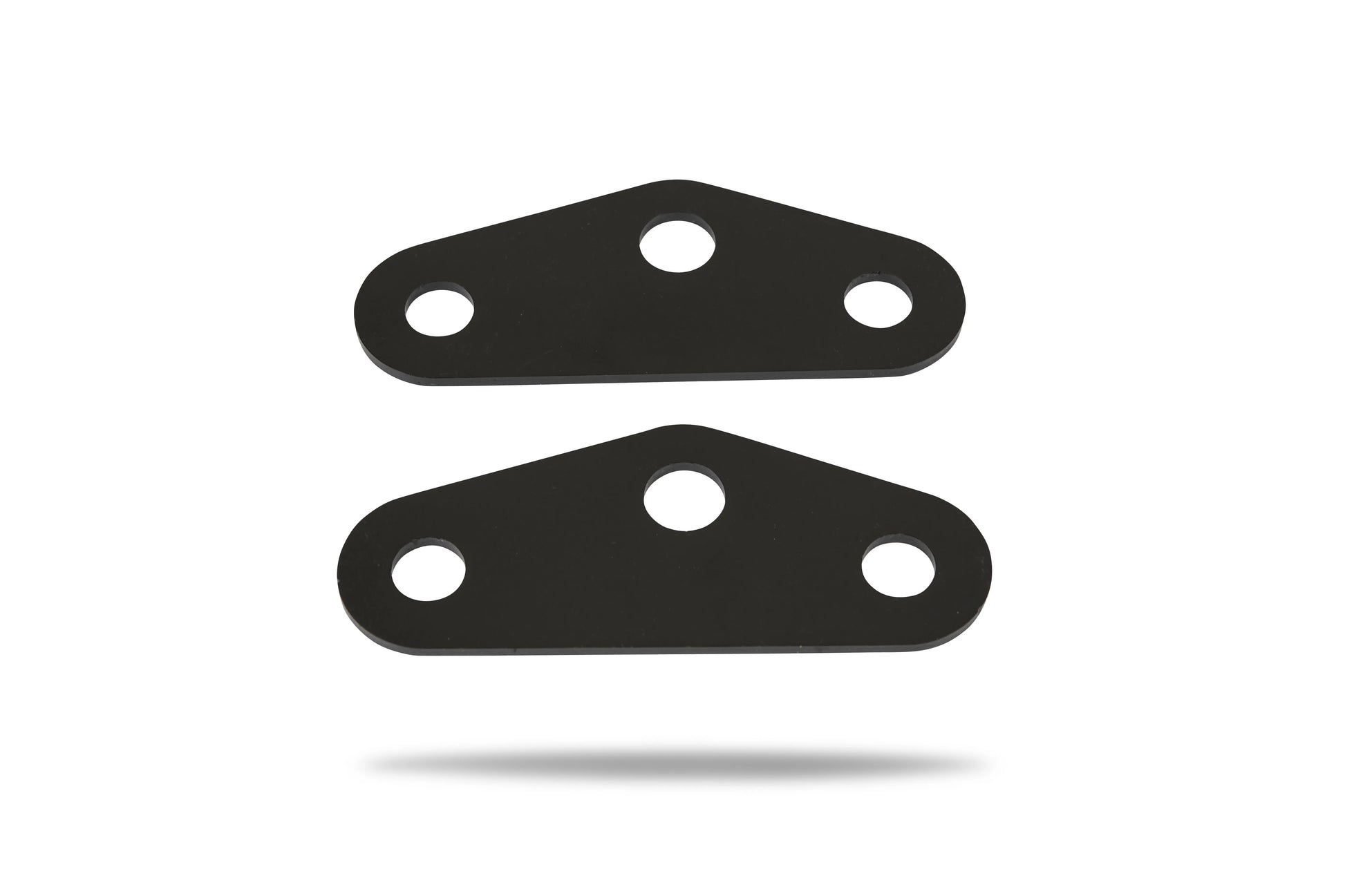

The kit contains all necessary components including torsion bars, reinforcement plates, coil springs and shocks. Instructions are provided to disable the AHC system to prevent dashboard warnings. The bolt-in nature of the kit simplifies installation. A professional wheel alignment is recommended after fitting.

Options are provided to suit comfort-focused standard use, lifted fitments and heavy-duty towing or load carrying applications.

Technical Specification

• Fitment: Toyota LandCruiser 100 Series / Amazon (4.5 Petrol & 4.2 Diesel)
• Front height: Adjustable

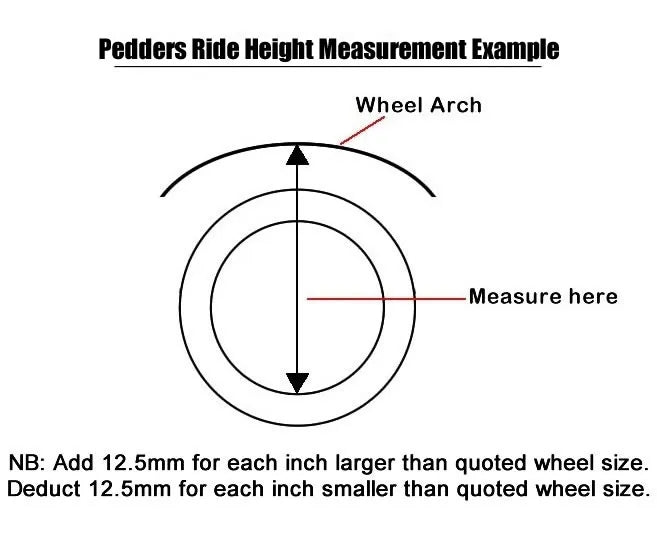

• Rear height: 790mm (with 16" wheels)

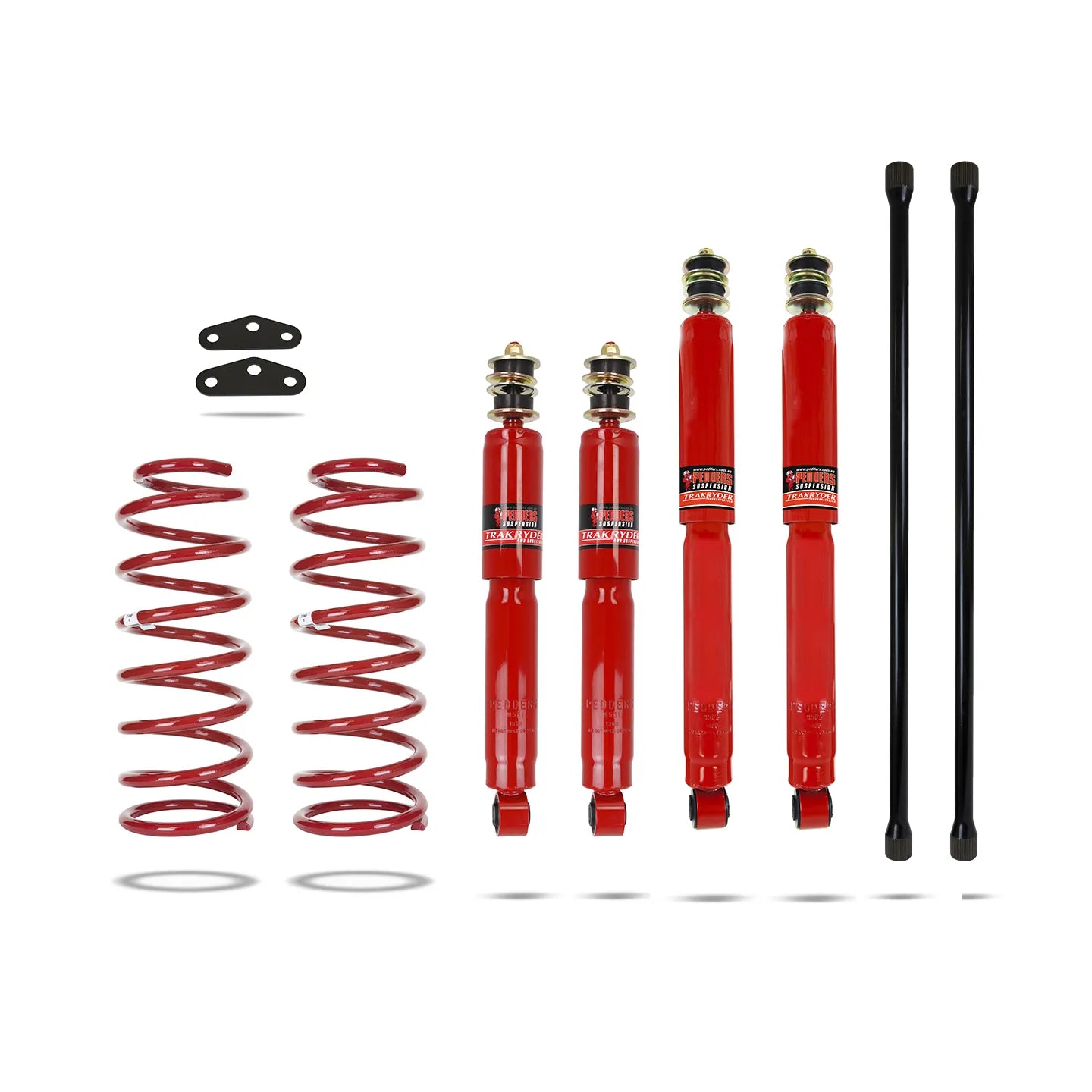

• Includes: Front torsion bars, reinforcement plates, rear coil springs, front and rear shock absorbers
• Variants provide up to 2 inches lift on rear springs
• Warranty: 2 Years / 25,000 miles

Note: Ride height and comfort may vary depending on original AHC system condition and vehicle load. Variations in accessories and wheel sizes can affect stance.

Why Choose This Kit

• Complete, matched suspension components designed to replace AHC system
• Proven solution to common and costly AHC faults
• Multiple variants for varying load and clearance needs
• Supported by a 2-Year / 25,000-mile warranty
