Pedders 1.75 Inch Heavy Duty Load Carrying and Towing Kit with Assembled Foam Cell Struts for Isuzu D-Max

This heavy duty suspension kit is designed for Isuzu D-Max owners who frequently carry heavy loads or tow. It raises the vehicle by approximately 40mm, improving ground clearance and load carrying capacity.

Key Features

• Heavy duty kit
• 40mm lift
• Improved load carrying and towing
• Increased off-road ground clearance

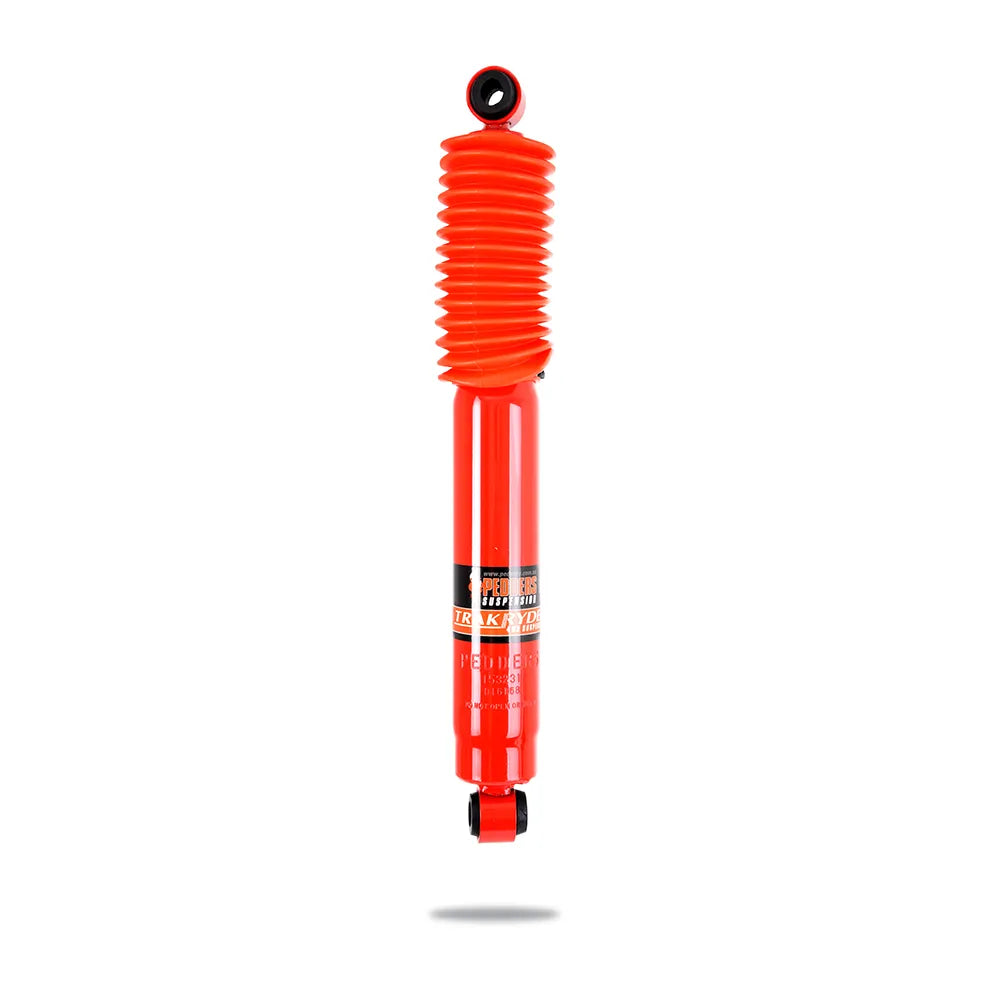

• Sintered iron piston shocks with large 40mm bore
• Premium grade steel coils
• Backed by 2 year / 25,000 mile warranty

Product Overview

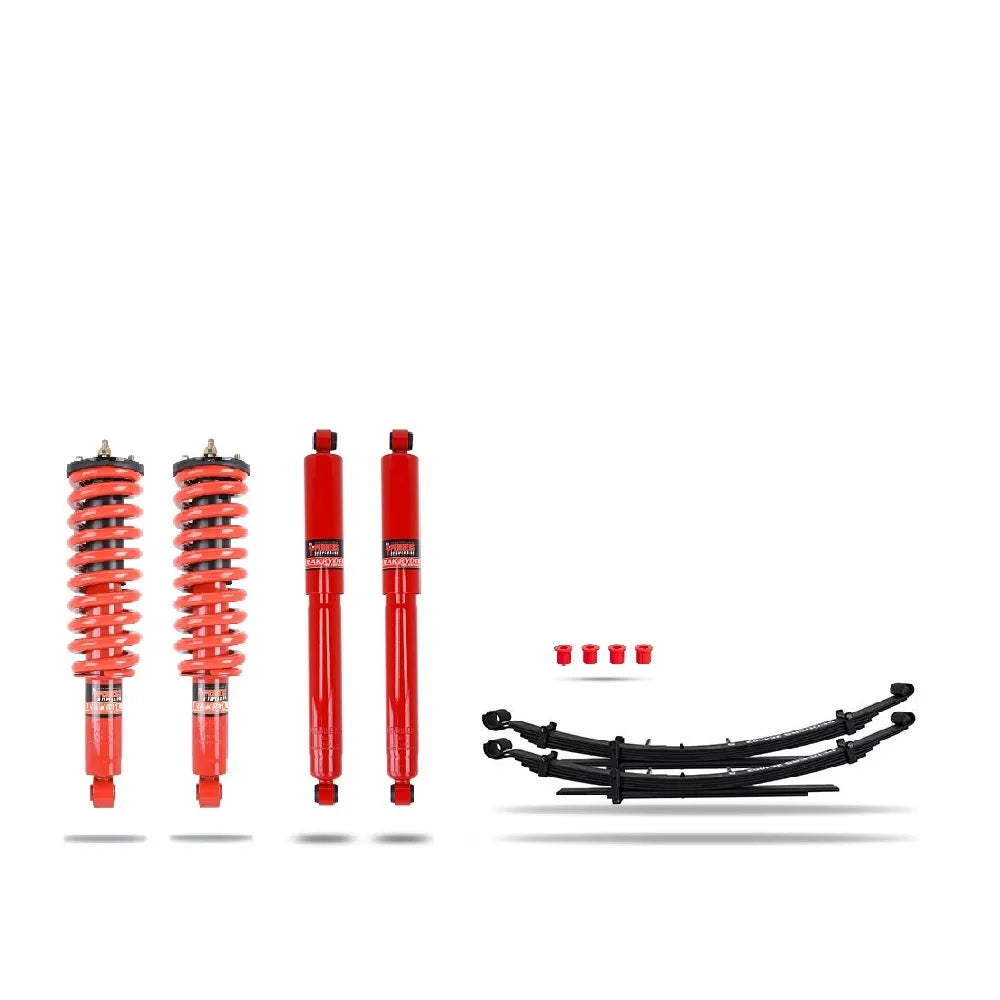

This kit is designed primarily for vehicles regularly carrying heavy loads or used for towing, especially when the rear sits low under constant weight. It includes front coil springs, new rear leaf springs, and fully assembled Pedders TrakRyder Foam Cell struts, enhancing the vehicle stance and providing better ground clearance. The approximately 40mm lift allows for larger tyre fitment and improved off-road capability. Unladen use with this kit is not recommended, as ride quality may be compromised. A minimum rear load of 280kg is advised during operation to maintain proper ride height and performance.

Foam Cell Shock Technology

Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.

Installation & Compatibility

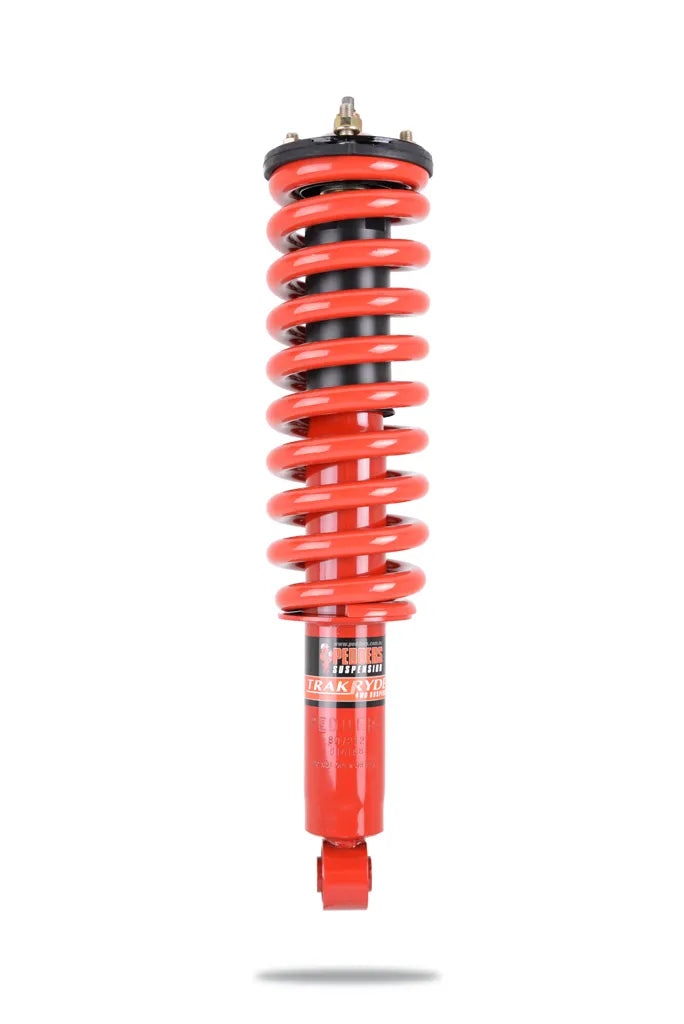

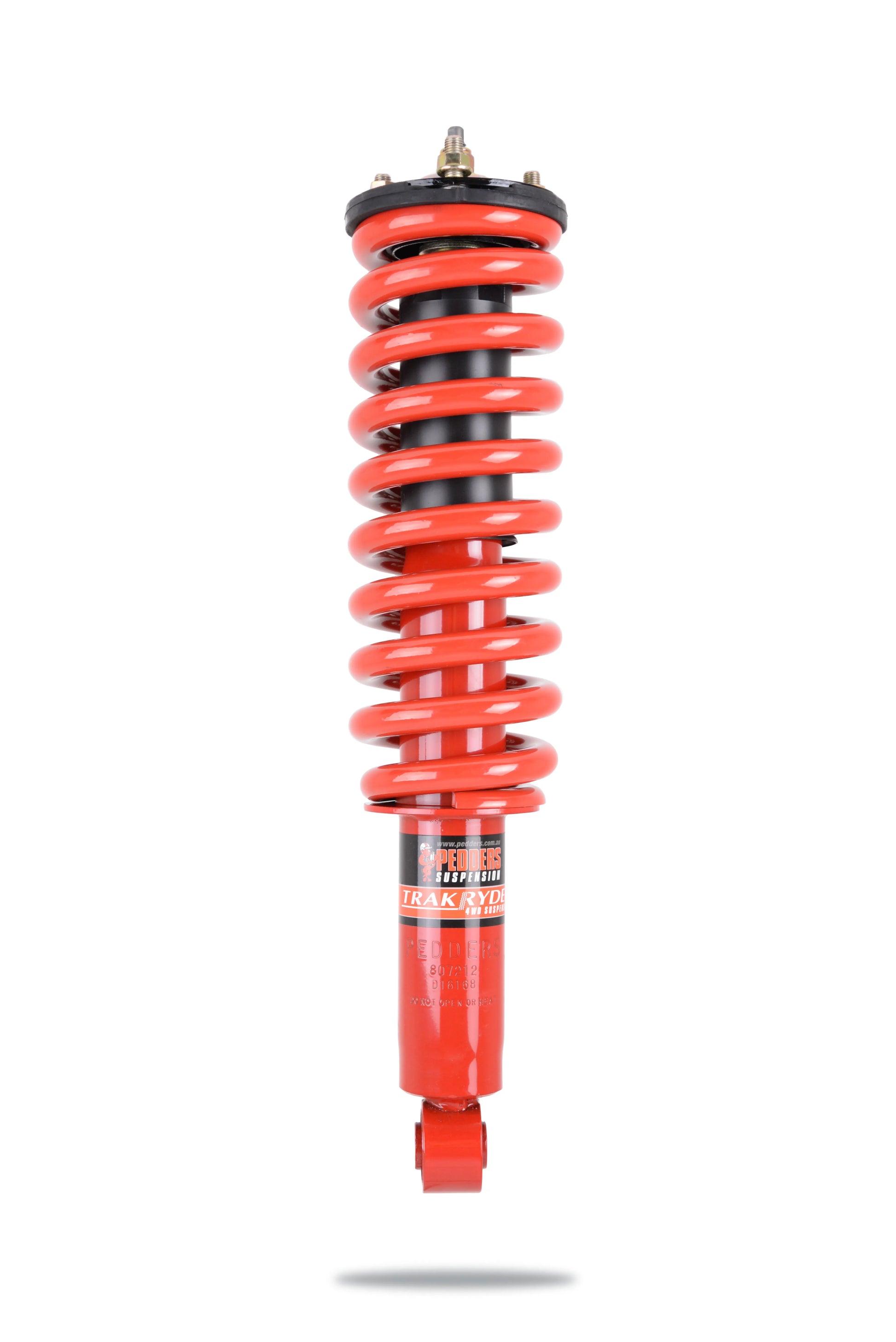

The kit includes fully assembled Ezifit struts with Foam Cell shocks, springs, top mount bump stops and boots, allowing straightforward bolt-on installation without the need for spring compressors or reusing old parts. After installation, a professional wheel alignment is strongly recommended for optimal vehicle performance.

This kit is suited for heavy duty load carrying and towing applications and is not intended for unladen daily driving.

Technical Specification

• Lift: Approximately 40mm increase in vehicle height

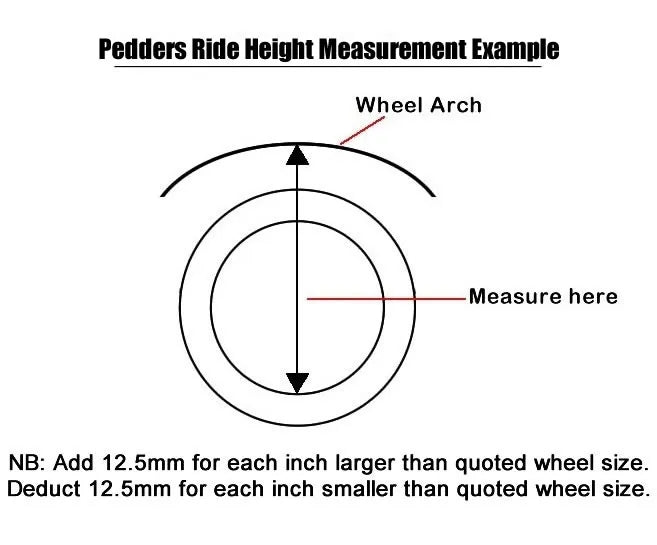

• Front height: 800mm with 18 inch wheels
• Rear: Approx. 40mm higher than standard
• Shock bore: 40mm sintered iron piston

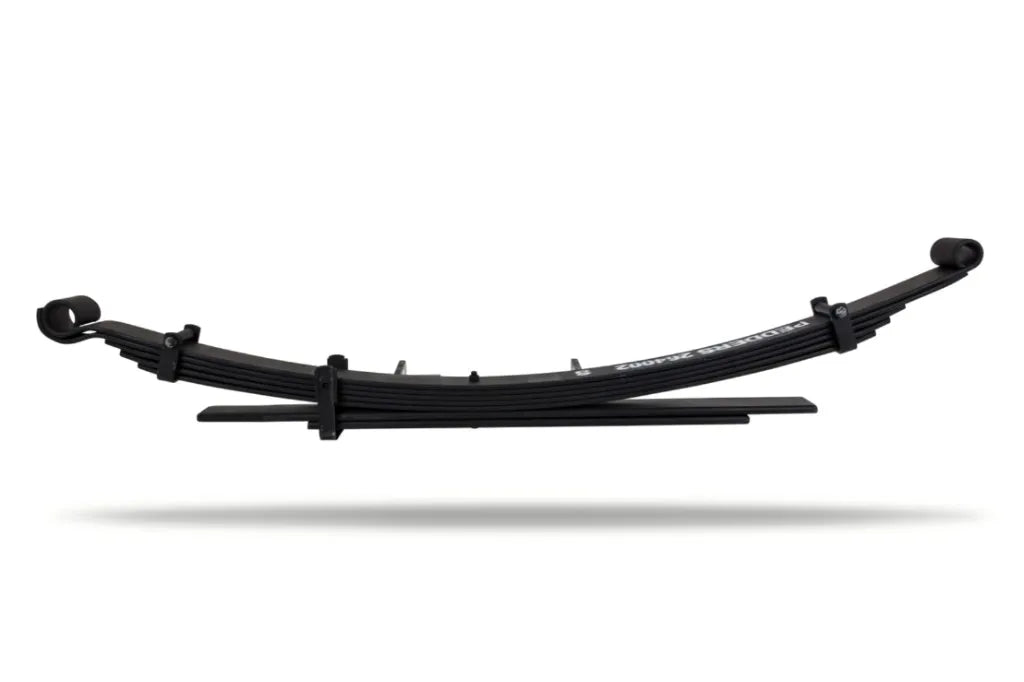

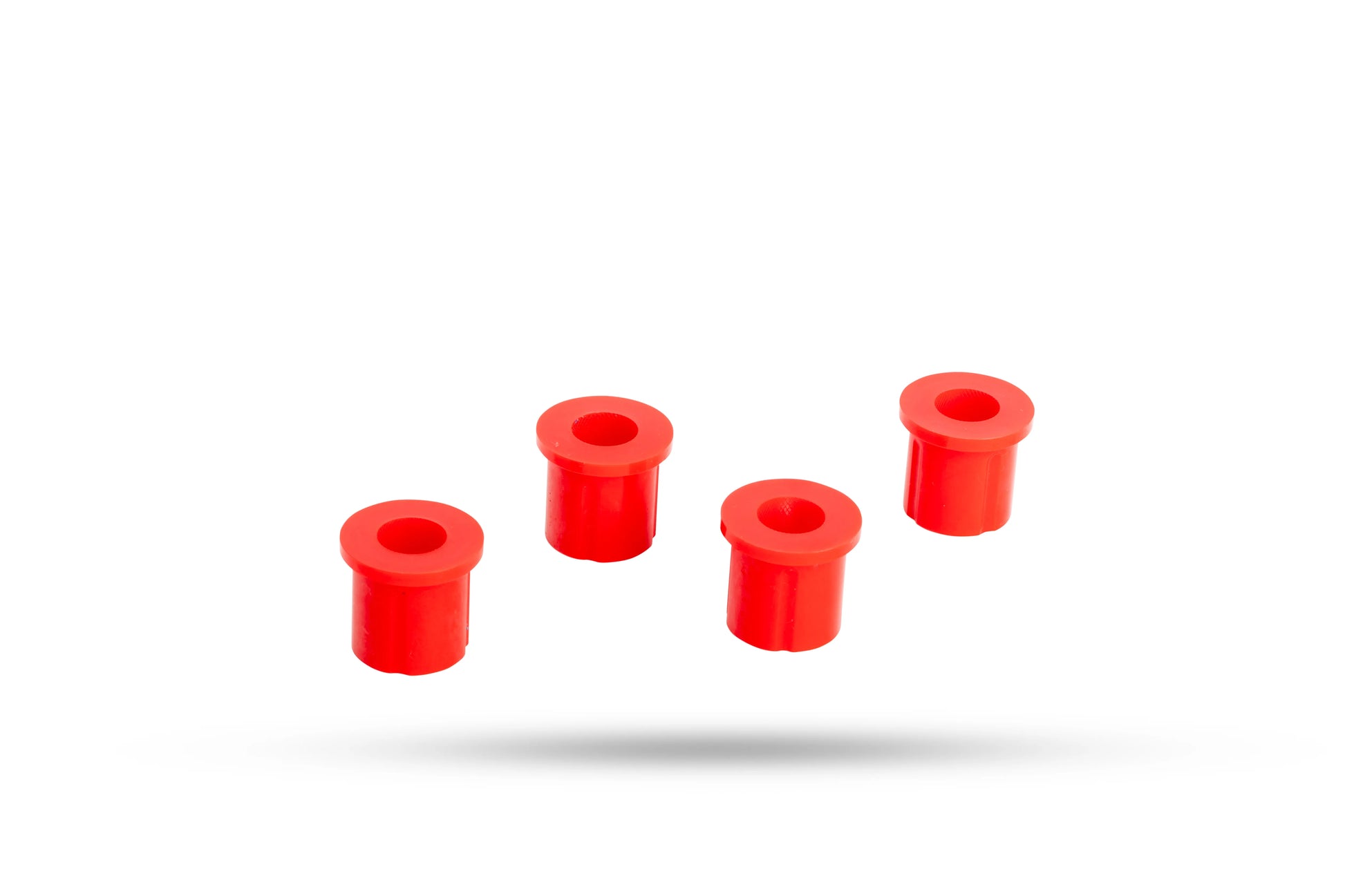

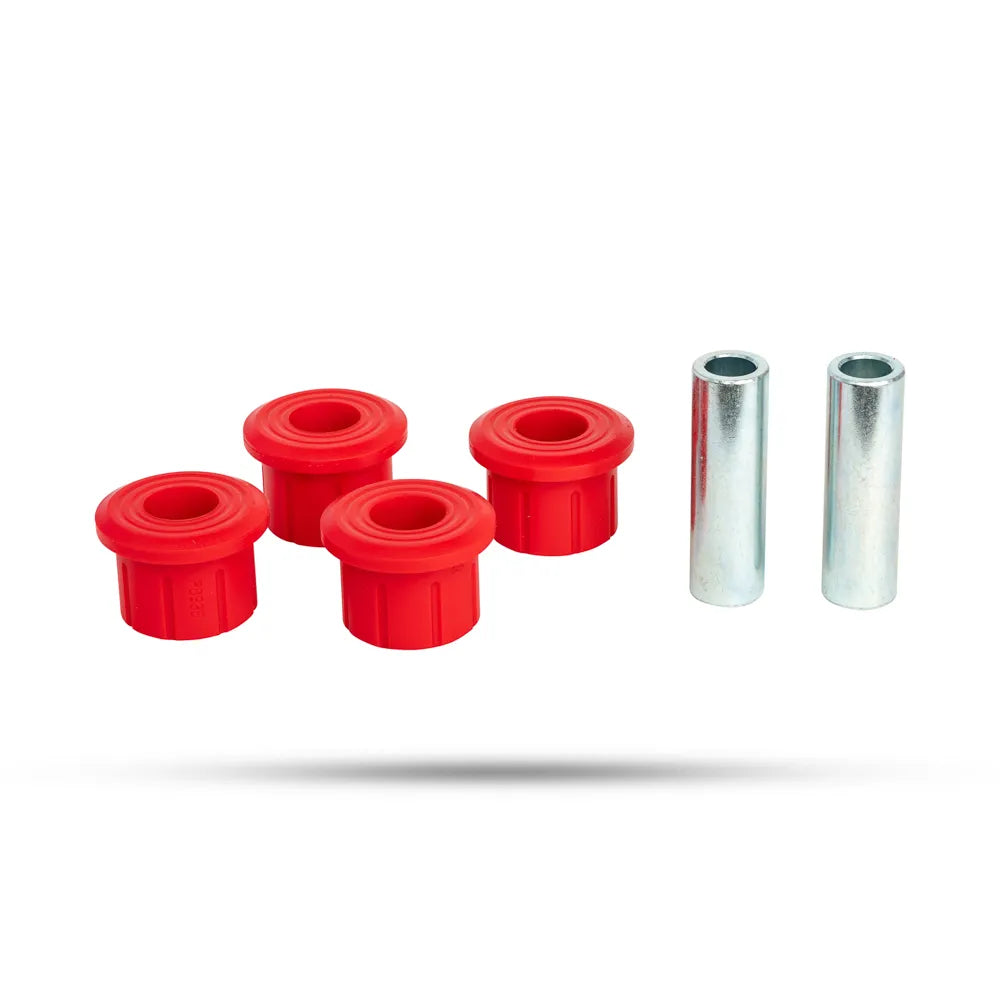

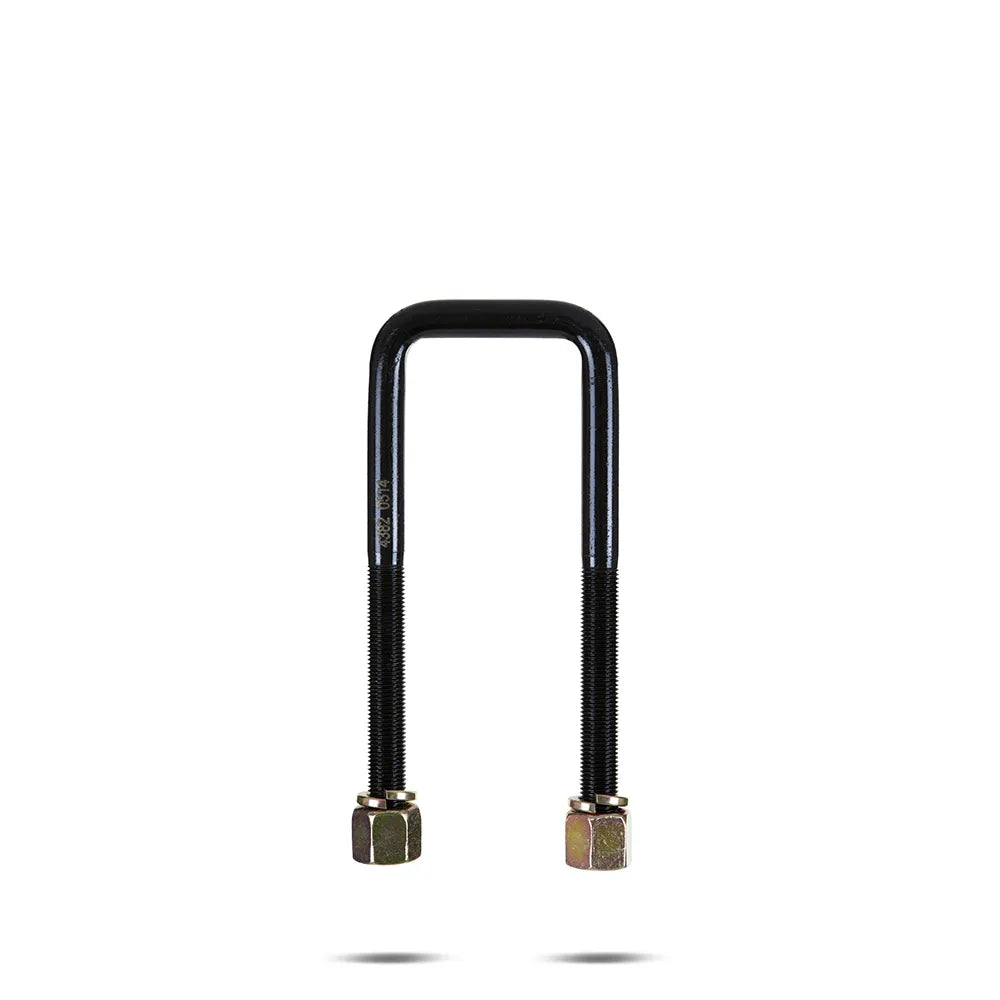

• Includes front coil springs, rear leaf springs, bushes, U bolts, and assembled Foam Cell struts

Final ride height may vary if front-end equipment such as winches or bull bars are fitted; different springs may be necessary in such cases.

Why Choose Pedders

• Complete matched heavy duty system designed for load carrying and towing
• Proven Foam Cell shock technology optimised for demanding use
• Fully assembled struts for easy bolt-on installation
• Backed by a 2 year / 25,000 mile warranty

Additional information

This kit is available with the TUV certificate. Please see the related items section.

Compatibility
Isuzu	D Max	2WD Hi-Ride	2WD Hi-Ride | 2012-2017	SUSPENSION KITS	Kits	Pedders 1.75 Inch Heavy Duty Load Carrying and Towing Kit. With Assembled Foam Cell Struts. Isuzu D-Max	Height: approx. +40mm	Minimum weight required: 250kg rear
Isuzu	D Max	4WD, 2.5TD	4WD, 2.5TD | 2012-2017	SUSPENSION KITS	Kits	Pedders 1.75 Inch Heavy Duty Load Carrying and Towing Kit. With Assembled Foam Cell Struts. Isuzu D-Max	Height: approx. +40mm	Minimum weight required: 250kg rear
