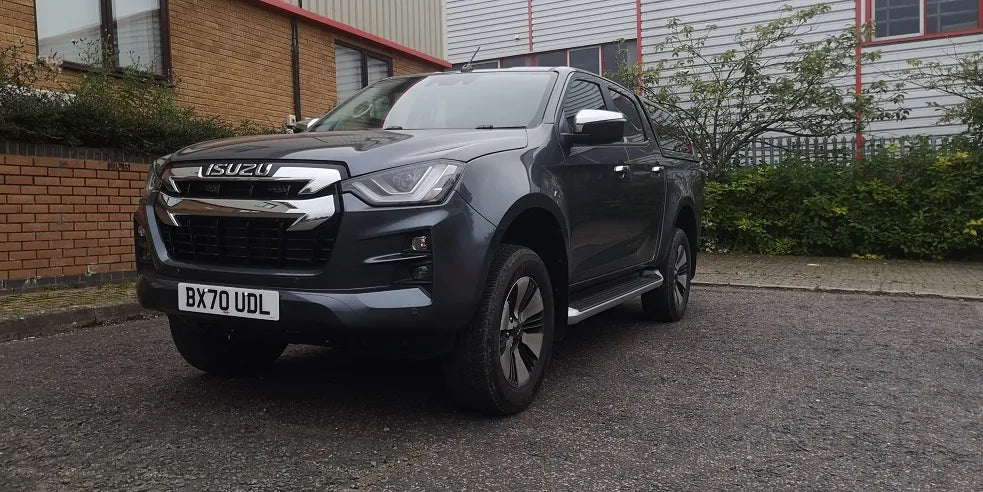

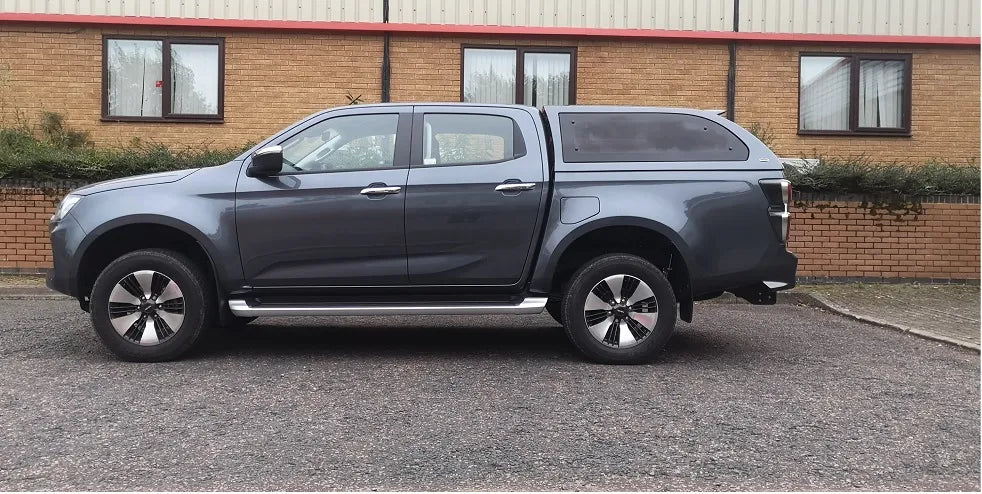

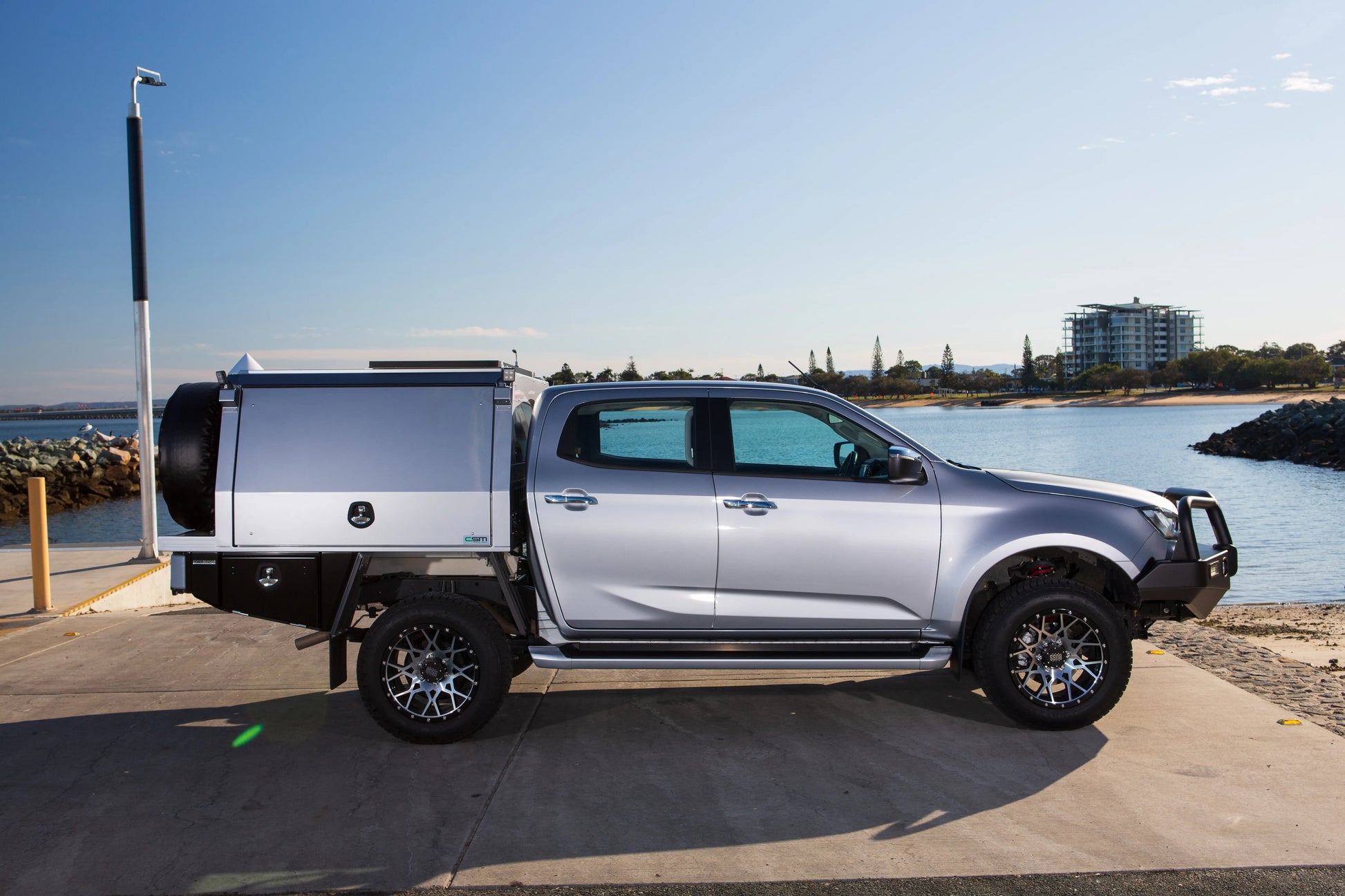

Designed for Isuzu D-Max owners seeking greater ground clearance, improved ride comfort and adjustable damping control. Includes fully assembled Adjustable Foam Cell struts for straightforward bolt-on installation.
Key Features
Excellent ride comfort and improved off-road ground clearance
Adjustable Foam Cell shocks with 9-stage damping adjustment
Premium grade steel coils

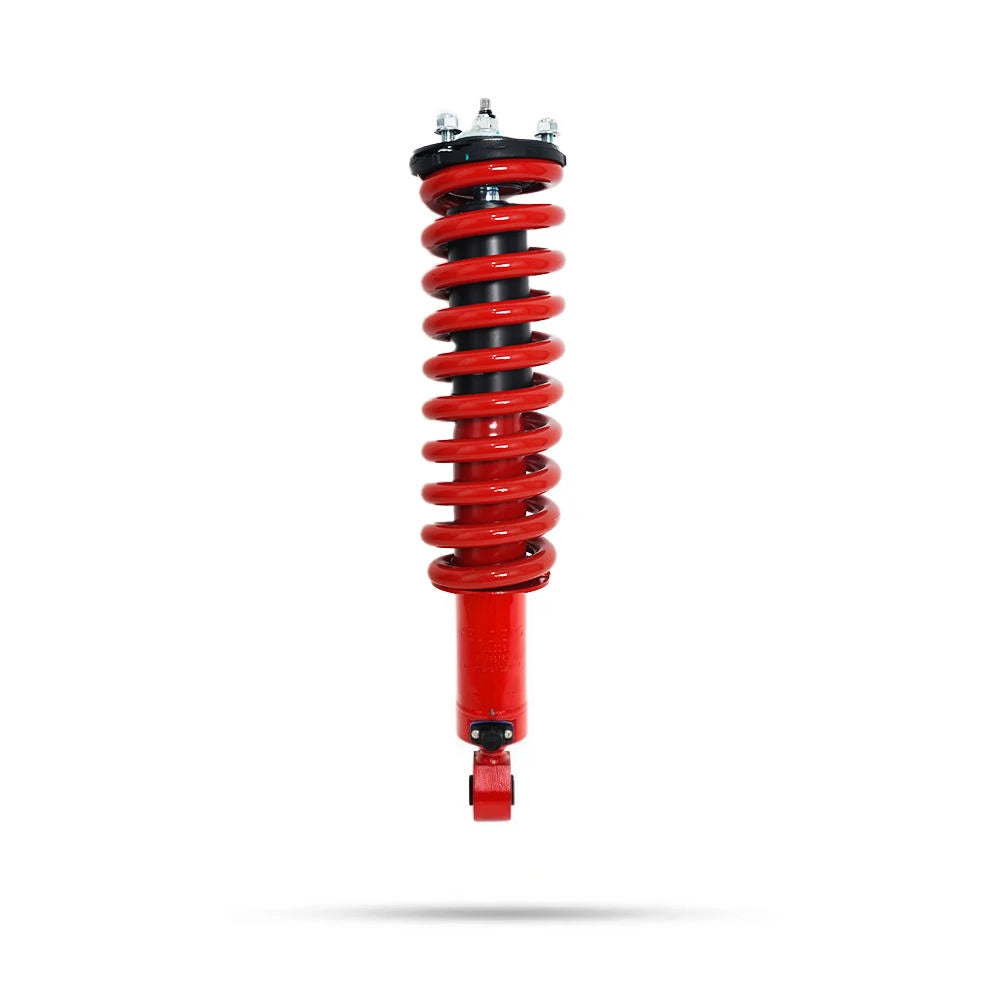

Fully assembled Ezifit struts
Product Overview

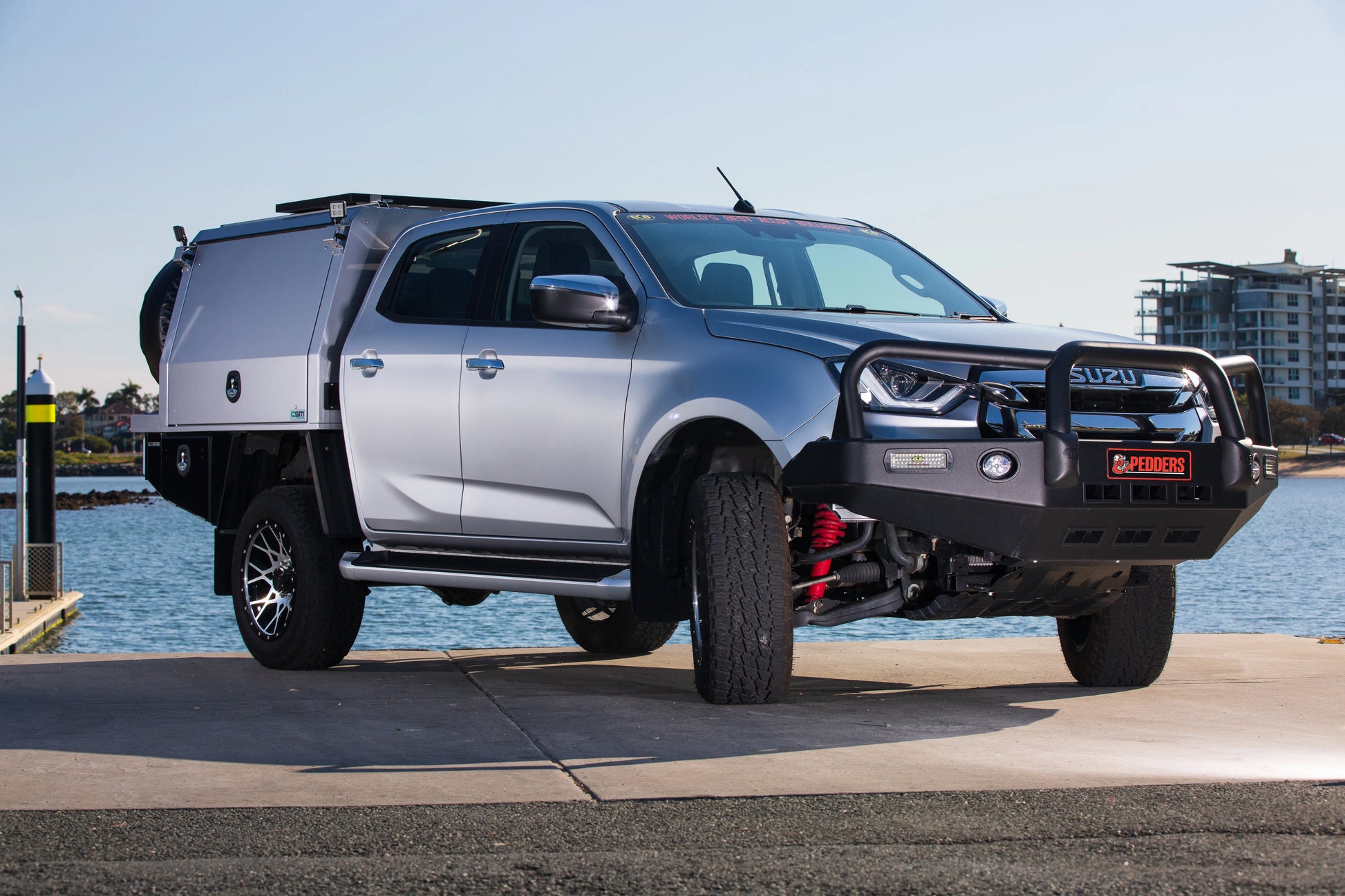

This kit increases vehicle height while maintaining optimal ride comfort, suitable for vehicles that do not carry heavy loads. It improves compliance both on-road and off-road. If accessories like a winch or bull bar are fitted, the final ride height may vary and different springs might be needed. Not recommended for frequent heavy towing.

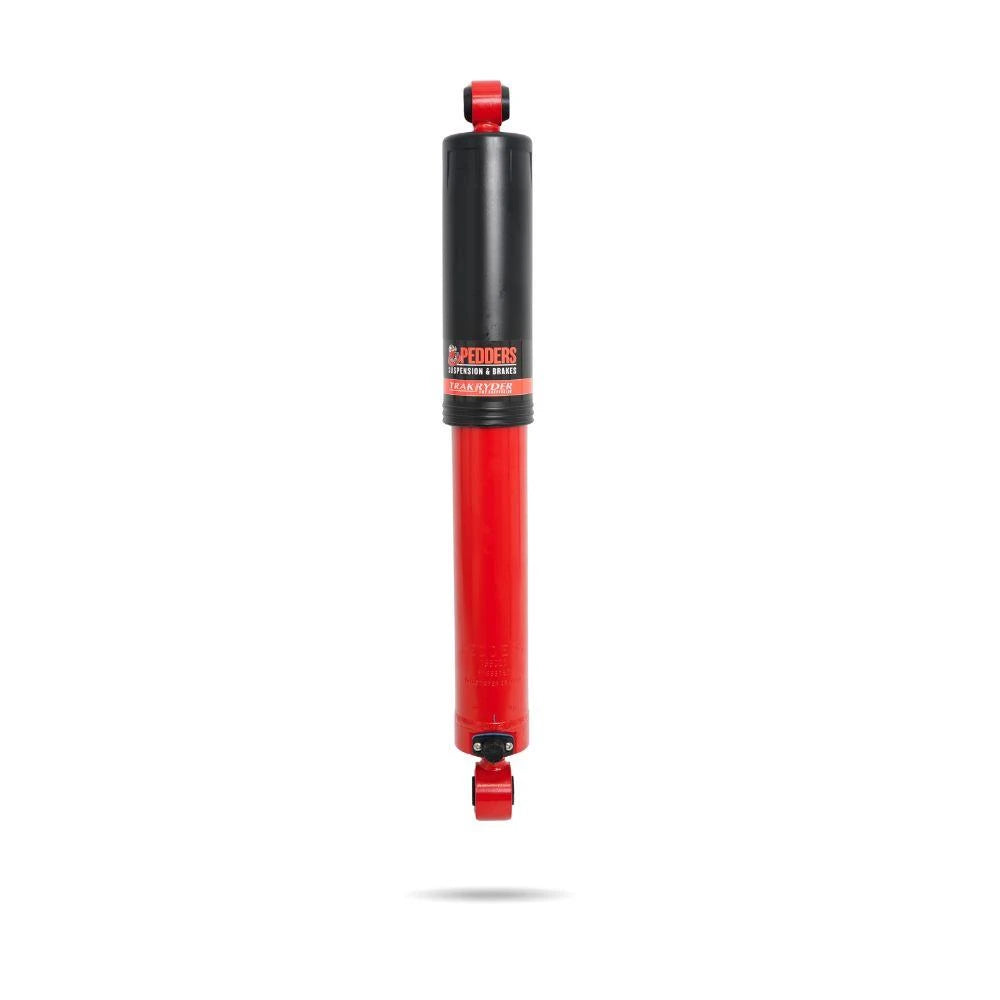

Adjustable Foam Cell Shock Performance
Pedders Adjustable Foam Cell Shock Absorbers feature a precise 9-stage damping adjustment system, letting drivers instantly fine-tune suspension feel for soft off-road comfort, improved wheel articulation, firmer highway handling, heavy-load stability and towing control. Combined with proven Foam Cell Technology, they maintain consistent damping performance while giving your 4x4 the flexibility to adapt to changing terrain, load and driving conditions.
Installation & Technical Specs
Eliminates the need for spring compressors. A professional wheel alignment is strongly recommended after installation. Not intended for heavy towing or load carrying.
Lift: approx. 40 mm (1.75") total

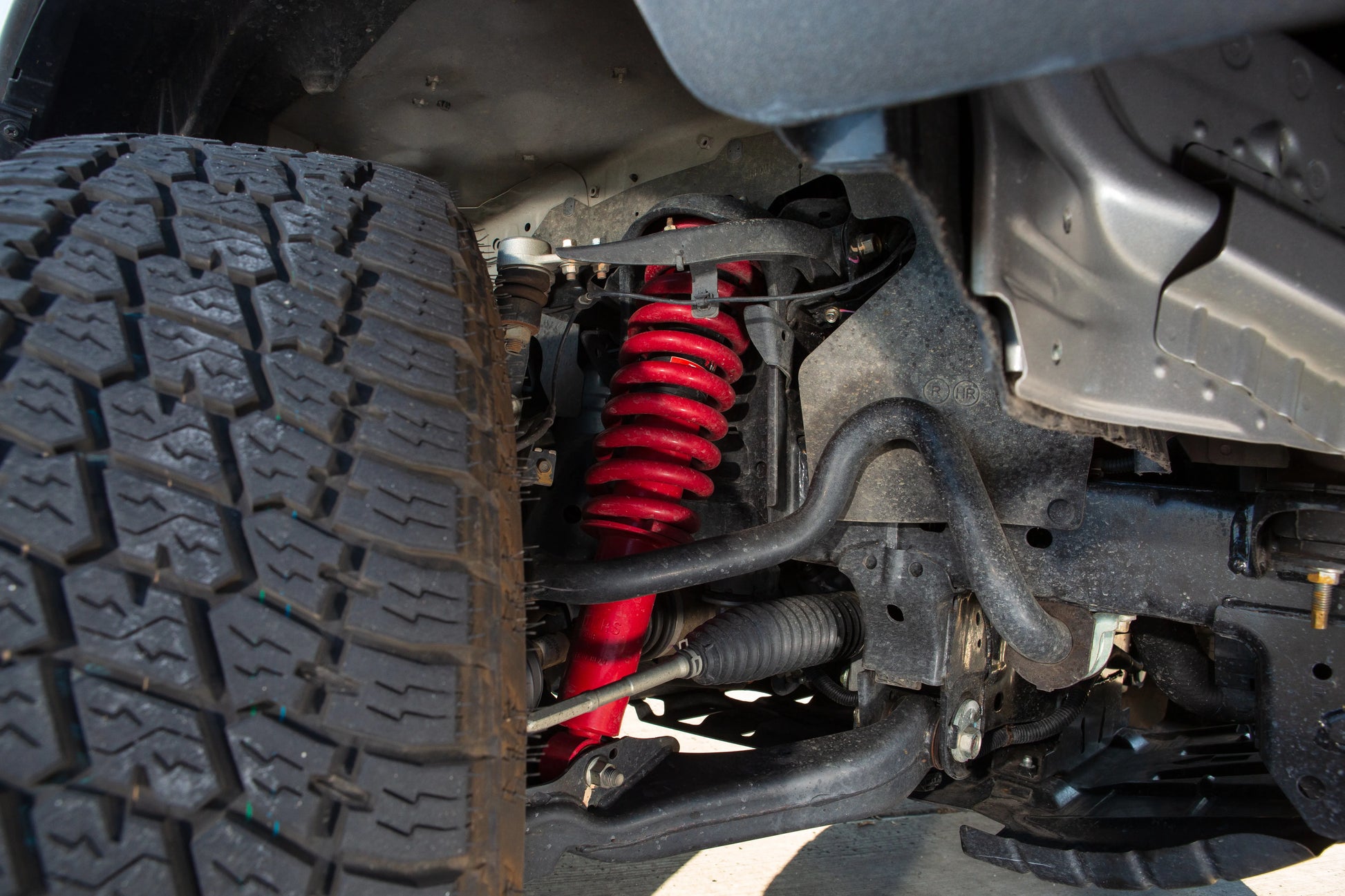

Front height increase: approx. 35 mm over standard

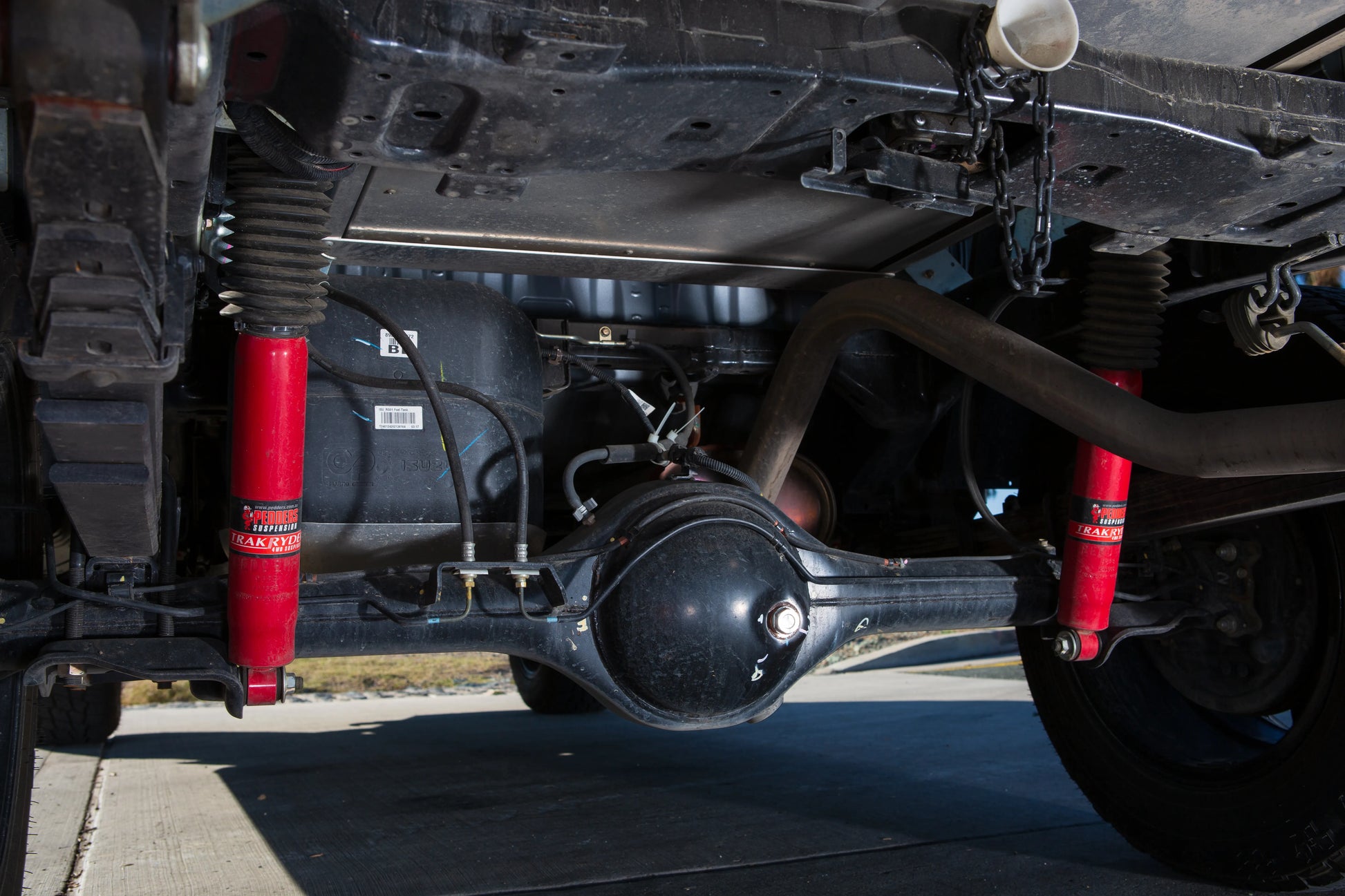

Rear height increase: approx. 40 mm over standard
Shock bore diameter: 40 mm, sintered iron piston

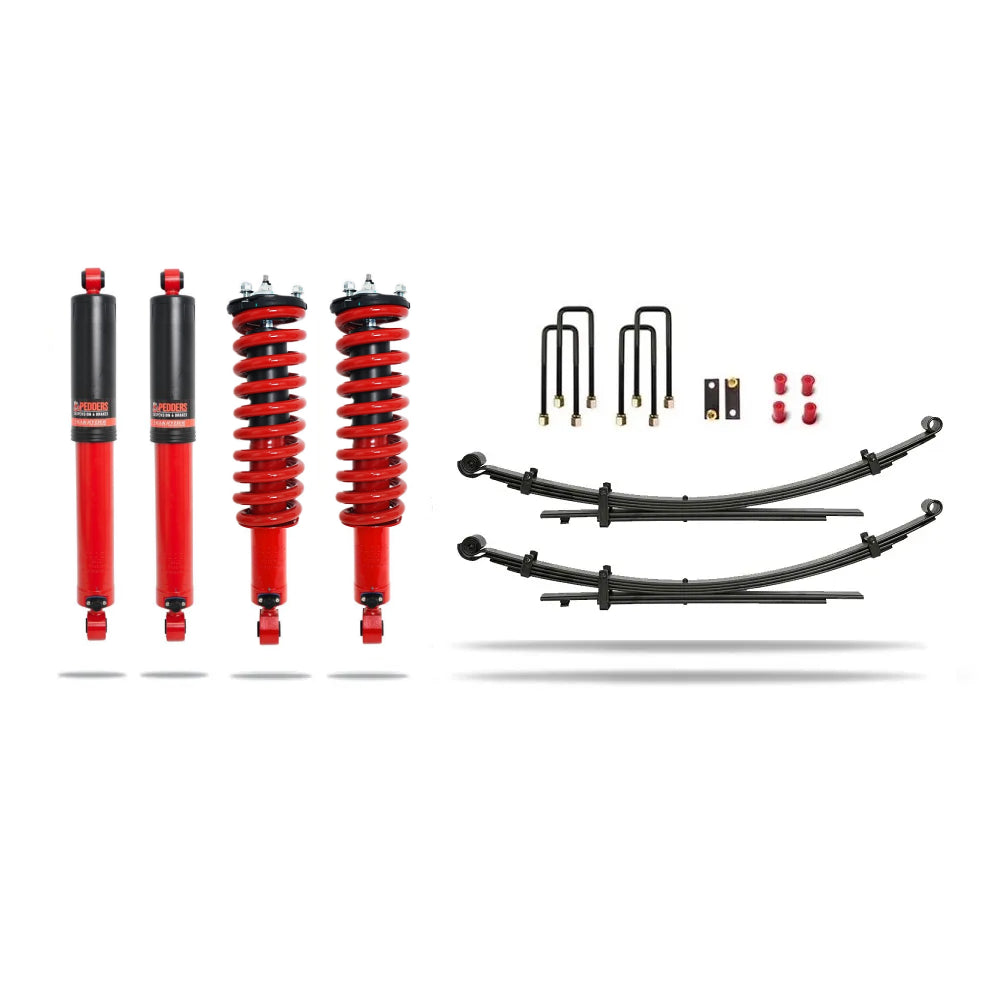

Components: front coil springs, new rear leaf springs, Adjustable Foam Cell shocks, top mounts, bump stops, and boots
Warranty: 2 year / 40,000 km / 25,000 mile warranty

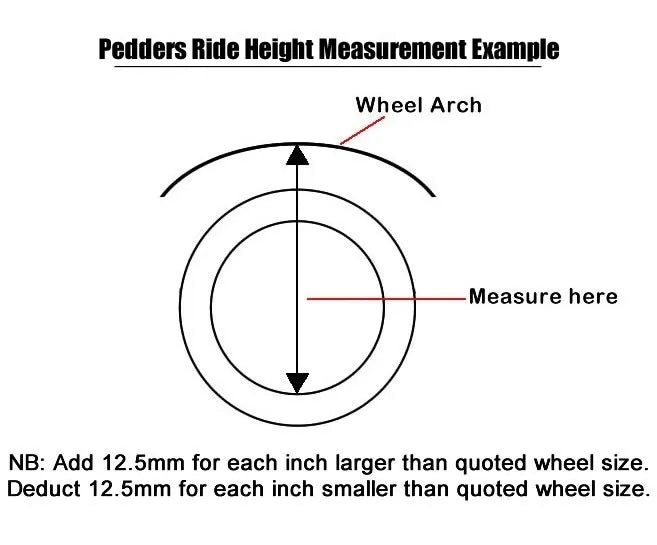

Ride height may vary with vehicle condition and additional accessories; alternative spring rates may be required.
