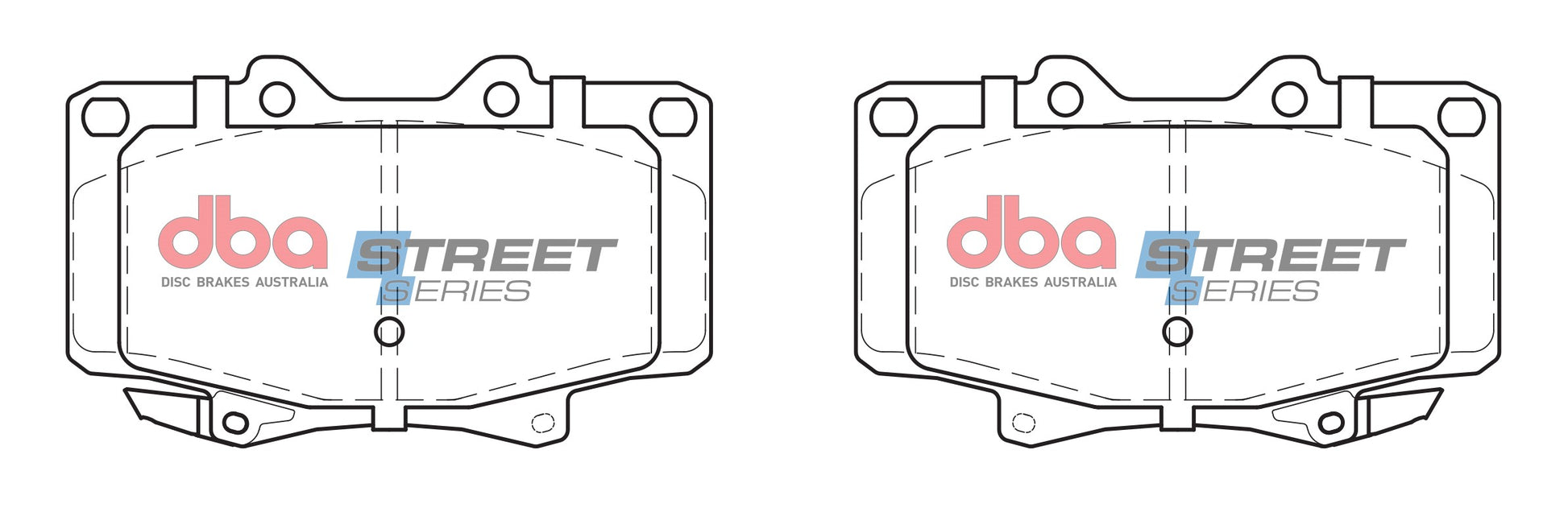

DB1199SS

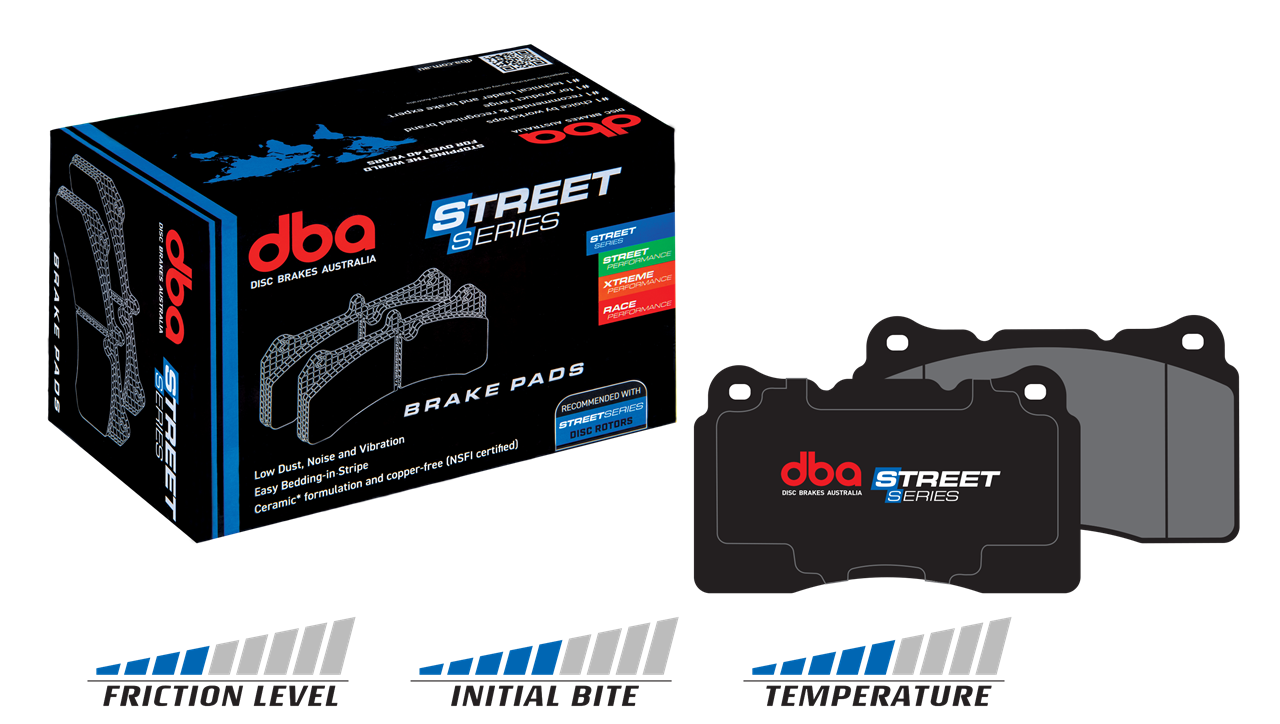

STREET SERIES brake pads are the latest addition to DBA’s comprehensive range of braking products. Aimed at the OE replacement market, the range was developed with three technical objectives in mind – create a brake pad that performs at OE level or better, offers the best friction formulation for the application, and complements DBA’s long-established, market-leading range of STREET SERIES disc rotors.

Great attention was given to the development of the friction formulation to achieve a friction coefficient that outperforms the current market standard. Consequently, DBA did not settle on just one formulation, but offers either ceramic or semi-metallic formulations depending on application and required performance.

DBA recommends STREET SERIES brake pads for everyday use application in passenger cars, SUVs and LightCommercial Vehicles.

DBA recommends use with STREET SERIES plain or T2 slotted disc rotors for increased first application effectiveness and reducing bed-in time.

STREET SERIES part numbers are denoted by the suffix SS.

OE-style post-cured process for optimal braking performance over the pad life

Ceramic* formulation and copper-free (NSFI certified) for low dust emission & clean wheels

High-friction stripe for easy bedding-in

Application-specific NVH shims, slots and chamfers for less vibration and noise

* Check box label for applicability

OE replacement & everyday use

Passenger cars & SUVs

Light commercial Vehicles

Use with DBA Street Series Disc Rotors

Primary FMSI	7298-D502
Set Contains	2 Left Pads + 2 Right Pads
Width [mm]	119.3
Height [mm]	71.9
Pad Thickness [mm]	15.0

Compatibility
TOYOTA	4 Runner KZN130	3.0 TD (1993-1997)	1993-1997	Brake Disc: DBA775	Front
TOYOTA	4 Runner LN130	2.4 TD (1991-1996)	1991-1996	Brake Disc: DBA775	Front
TOYOTA	4 Runner VZN130	3.0 (1990-1996)	1990-1996	Brake Disc: DBA775	Front
TOYOTA	Hilux Surf KZN130	3.0 TD (1993-1996)	1993-1996	Brake Disc: DBA775	Front
TOYOTA	Hilux Surf LN130	2.4 TD (1991-1993)	1991-1993	Brake Disc: DBA775	Front
TOYOTA	Hilux Surf LN131	2.8 D (1991-1993)	1991-1993	Brake Disc: DBA775	Front
TOYOTA	Landcruiser FZJ80	4.5 (1992-1998)	1992-1998	Brake Disc: DBA784	Front
TOYOTA	Landcruiser HDJ80	4.2 TD (1990-1992)	1990-1992	Brake Disc: DBA782	Front
TOYOTA	Landcruiser HDJ80	4.2 TD (1992-1998)	1992-1998	Brake Disc: DBA784	Front
TOYOTA	Landcruiser HDJ81	4.2 TD (1990-1998)	1990-1998	Brake Disc: DBA782	Front
TOYOTA	Landcruiser HZJ80	4.2 D (1990-1992)	1990-1992	Brake Disc: DBA782	Front
TOYOTA	Landcruiser HZJ80	4.2 D (1992-1999)	1992-1999	Brake Disc: DBA784	Front
