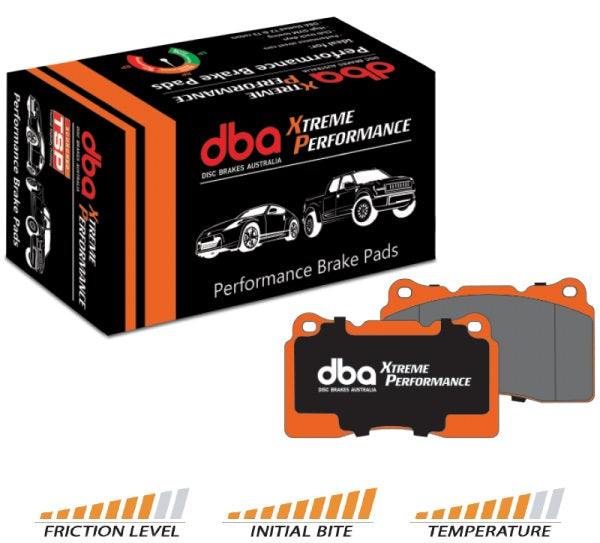

DB1283XP

DBA’s Xtreme Performance brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends Xtreme Performance brake pads for street performance and police pursuit vehicles, as well as club track days, heavy towing and upgraded 4WD’s.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

DBA Xtreme Performance part numbers are denoted by the suffix (XP).

• Semi-metallic, carbon fibre friction material
• G-G Class Friction (0.45 average mu from low to high temperatures)
• Excellent high temperature performance
• Optimal braking consistency up to 550℃ (1022℉)

Axle	Rear
Width [mm]	102.1
Height [mm]	43.0
Pad thickness [mm]	11.8
Primary FMSI	7514-D636

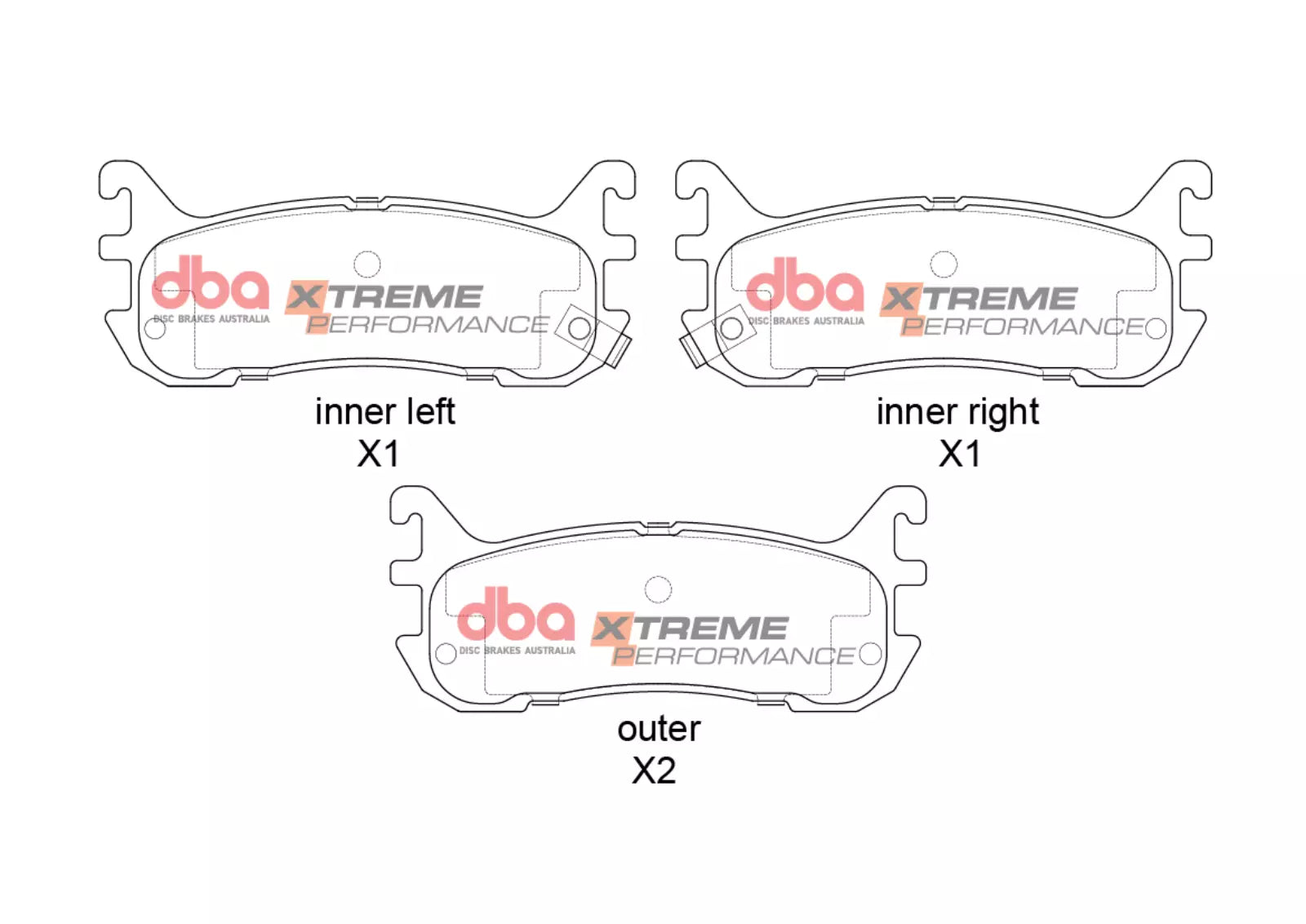

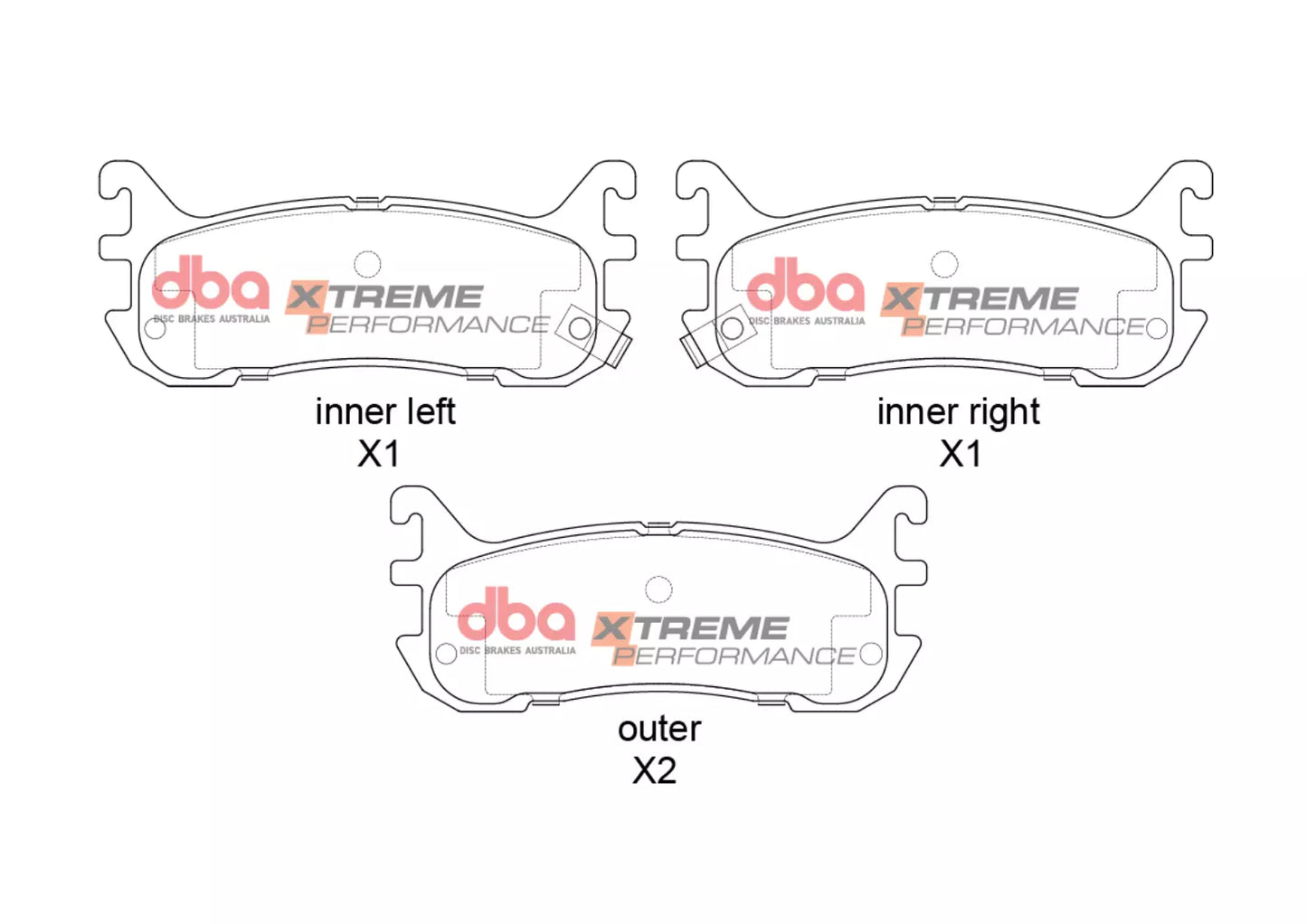

Set Contains	LH Inner + RH Inner + 2 Outer Pads

Compatibility
MAZDA	MX5 (Mk1) (NA)	1.8 (1994-1998)	1994-1998	Brake Caliper: Akebono	Rear	Brake Disc: DBA534	Disc Diameter [mm]: 251
MAZDA	MX5 (Mk2) (NB)	1.6 (1998-2005)	1998-2005	Brake Caliper: Akebono	Rear	Brake Disc: DBA534	Disc Diameter [mm]: 251
MAZDA	MX5 (Mk2) (NB)	1.8 (1998-2005)	1998-2005	Brake Caliper: Akebono	Rear	Brake Disc: DBA534	Disc Diameter [mm]: 251
