DB288XP

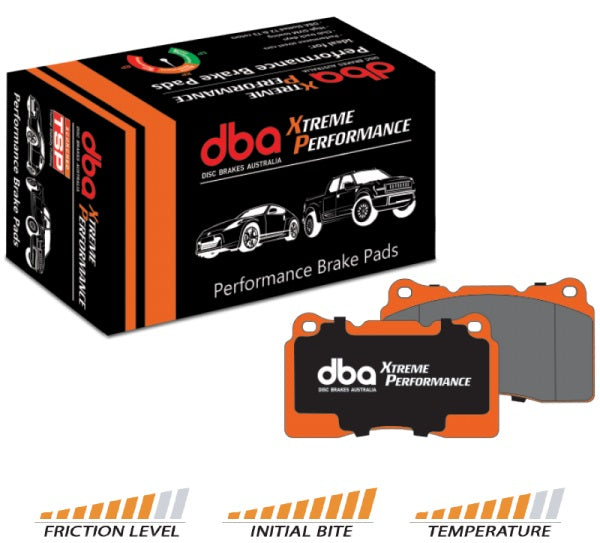

DBA’s Xtreme Performance brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends Xtreme Performance brake pads for street performance and police pursuit vehicles, as well as club track days, heavy towing and upgraded 4WD’s.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

DBA Xtreme Performance part numbers are denoted by the suffix (XP).

• Semi-metallic, carbon fibre friction material
• G-G Class Friction (0.45 average mu from low to high temperatures)
• Excellent high temperature performance
• Optimal braking consistency up to 550℃ (1022℉)

Width [mm]	107.2
Height [mm]	66.1
Pad thickness [mm]	14.9
FMSI	7069-D137
OEM	0446535170
Axle	Front

Compatibility
TOYOTA	Hi-Lux LN65	2.4 D (1984-1988)	1984-1988	Brake Disc: DBA154	Front	Brake Caliper: Sumitomo
TOYOTA	Hi-Lux RN46	2.0 (1979-1984)	1979-1984		Front	Brake Caliper: Sumitomo
TOYOTA	Hi-Lux RN46	2.0 (1979-1984)	1979-1984	Brake Disc: DBA154	Front	Brake Caliper: Sumitomo
TOYOTA	Hi-Lux YN65	2.0 (1984-1986)	1984-1986	Brake Disc: DBA154	Front	Brake Caliper: Sumitomo
TOYOTA	Hi-Lux YN65	2.0 4x4 (1984-1986)	1984-1986	Brake Disc: DBA154	Front	Brake Caliper: Sumitomo
TOYOTA	Hi-Lux YN67	2.2 (1986-1988)	1986-1988	Brake Disc: DBA154	Front	Brake Caliper: Sumitomo
TOYOTA	Landcruiser 70 series	2.4 (RJ70, RJ73) 77 kW (1984-1993)	1984-1993	Brake Disc: DBA151	Front
TOYOTA	Landcruiser 70 series	2.4 (RJ70, RJ73) 84 kW (1988-1996)	1988-1996	Brake Disc: DBA151	Front
TOYOTA	Landcruiser 70 series	2.4 (RJ70, RJ73, RJ70RV) 81 kW (1984-1993)	1984-1993	Brake Disc: DBA151	Front
TOYOTA	Landcruiser 70 series	2.4 D (LJ70) 53 kW (1984-1985)	1984-1985	Brake Disc: DBA151	Front
TOYOTA	Landcruiser 70 series	2.4 TD (LJ70) 63 kW (1985-1990)	1985-1990	Brake Disc: DBA151	Front
TOYOTA	Landcruiser 70 series	2.4 TD (LJ70) 66 kW (1990-1993)	1990-1993	Brake Disc: DBA151	Front
TOYOTA	Landcruiser 70 series	3.4 D (BJ70, BJ73, BJ75) 70 kW (1984-1996)	1984-1996	Brake Disc: DBA151	Front
TOYOTA	Landcruiser 70 series	3.4 TD (BJ71, BJ74) 91 kW (1985-1986)	1985-1986	Brake Disc: DBA151	Front
TOYOTA	Landcruiser 70 series	4.5 4x4 (FZJ75, FZJ75RV) 158 kW (1992-1999)	1992-1999	Brake Disc: DBA151	Front
TOYOTA	Landcruiser BJ60	3.4 D (1981-1984)	1981-1984	Brake Disc: DBA151	Front	Brake Caliper: Sumitomo
TOYOTA	Landcruiser FJ60	4.2 (1981-1984)	1981-1984	Brake Disc: DBA151	Front
TOYOTA	Landcruiser HJ60	4.0 D (1981-1991)	1981-1991	Brake Disc: DBA151	Front	Brake Caliper: Sumitomo
TOYOTA	Landcruiser HJ61	4.0 D (1985-1990)	1985-1990		Front	Brake Caliper: Sumitomo
