DBA

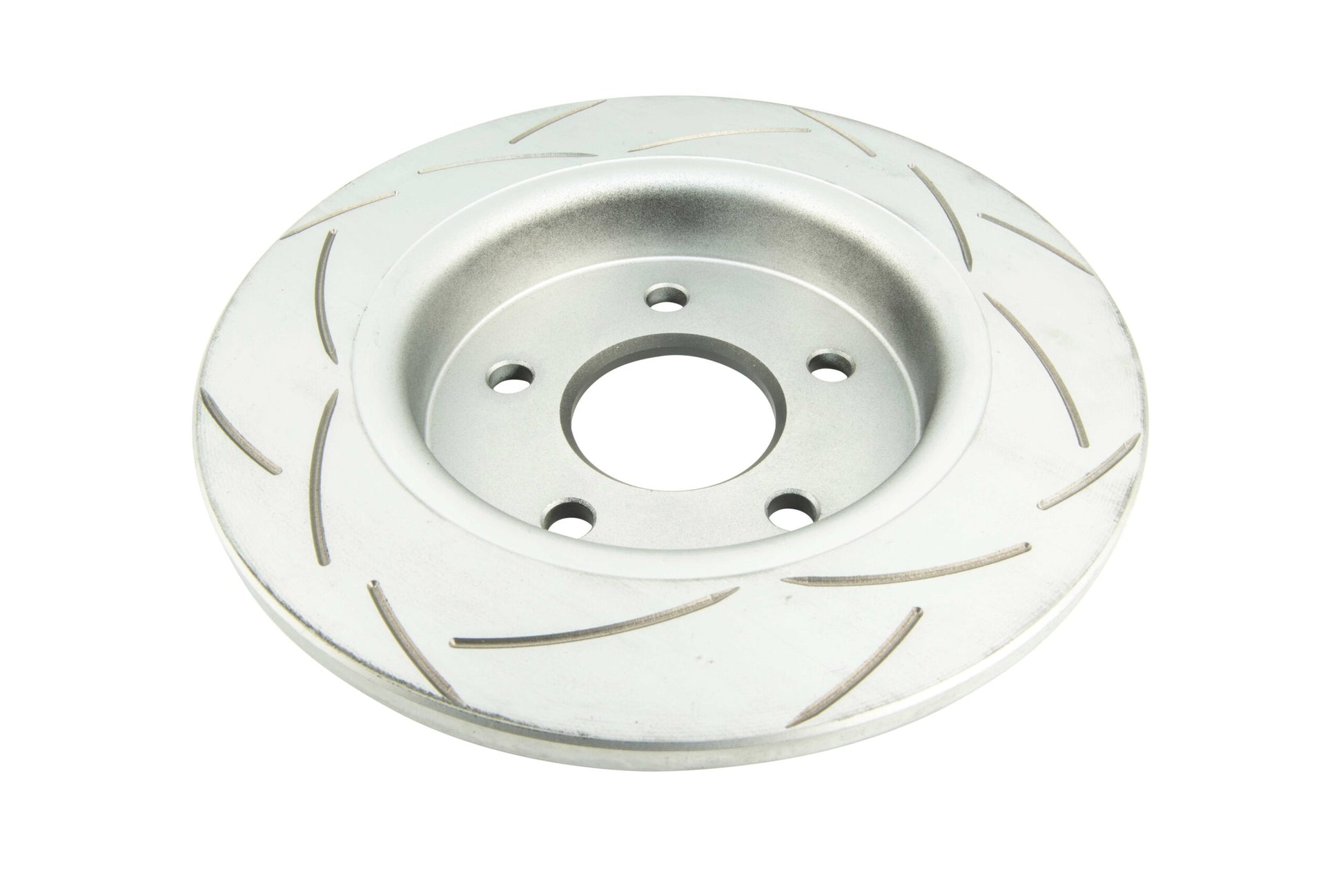

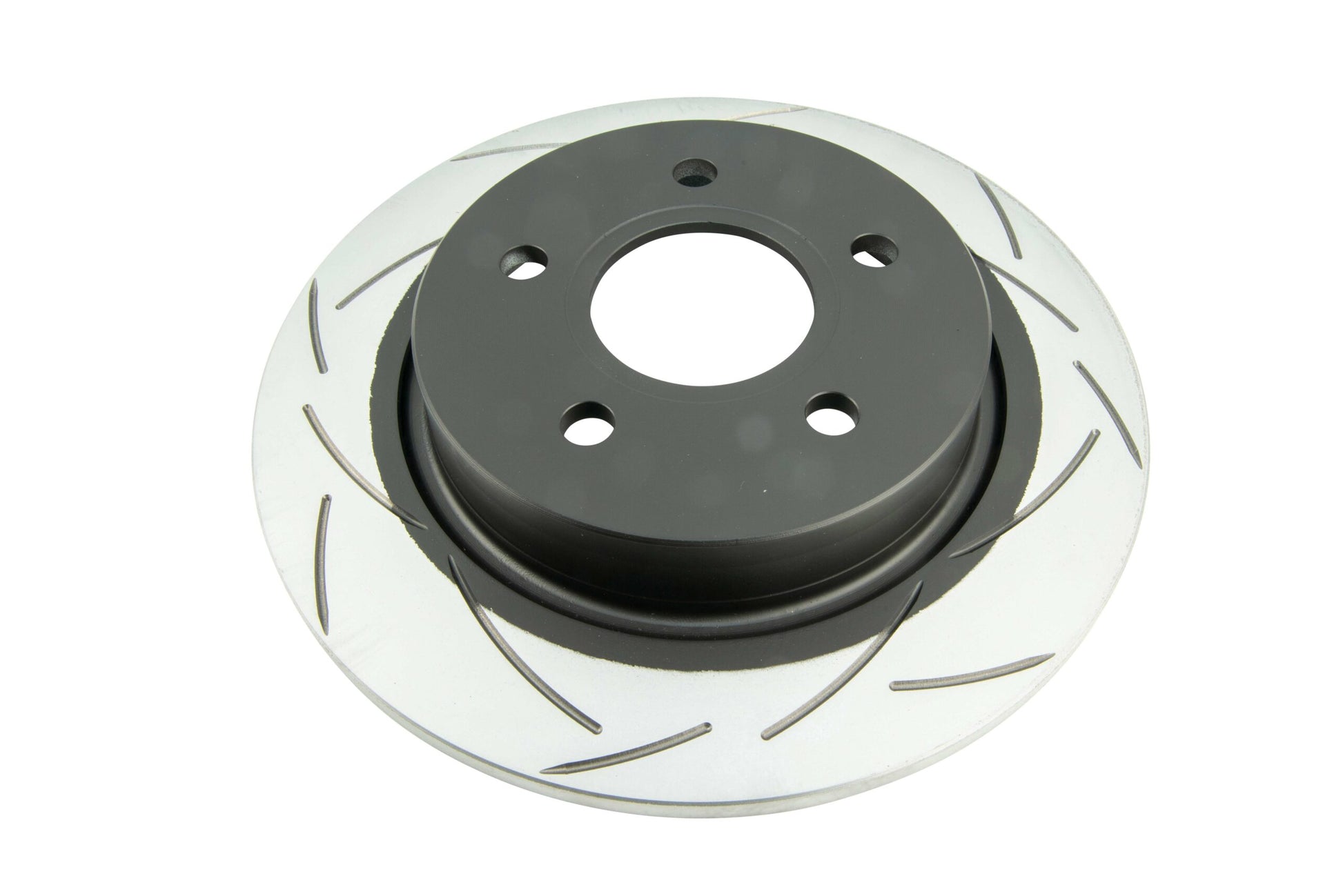

DBA2145S
DBA2145S
Regular price
€153,77 EUR
Regular price
Sale price
€153,77 EUR
Quantity
Couldn't load pickup availability
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 271 |
| Disc Vent | Solid |
| Number of Holes | 5 |
| Inner Diameter [mm] | 63.5 |
| Minimum Thickness [mm] | 9 |
| Thickness [mm] | 11 |
| Height [mm] | 41 |
| Pitch Circle [mm] | 108 |
| Stage | Stage 2 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| FORD | Focus (Mk3) | 1.0 Turbo 100BHP (2012-2018) | 2012-2018 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.0 Turbo 125BHP (2012-2018) | 2012-2018 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.0 Turbo 140BHP (2017-2018) | 2017-2018 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.5 TD 105BHP (2015-2018) | 2015-2018 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.5 TD 120BHP (2015-2018) | 2015-2018 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.5 TD 95BHP (2015-2018) | 2015-2018 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.5 Turbo 150BHP (2014-2018) | 2014-2018 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.5 Turbo 182BHP (2014-2018) | 2014-2018 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.6 105BHP (2011-2016) | 2011-2016 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.6 120BHP (2011-2016) | 2011-2016 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.6 125BHP (2011-2016) | 2011-2016 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.6 85BHP (2011-2016) | 2011-2016 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.6 TD 105BHP (2012-2015) | 2012-2015 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.6 TD 115BHP (2011-2014) | 2011-2014 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.6 TD 115BHP (2011-2015) | 2011-2015 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.6 TD 95BHP (2011-2015) | 2011-2015 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.6 Turbo 150BHP (2011-2014) | 2011-2014 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 1.6 Turbo 180BHP (2011-2014) | 2011-2014 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 2.0 TD 115BHP (2011-2014) | 2011-2014 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 2.0 TD 140BHP (2011-2014) | 2011-2014 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 2.0 TD 150BHP (2014-2018) | 2014-2018 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 2.0 TD 160BHP (2011-2014) | 2011-2014 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 2.0 TD 185BHP (2014-2018) | 2014-2018 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 2.0 Turbo ST 250BHP (2011-2018) | 2011-2018 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
| FORD | Focus (Mk3) | 2.0 Turbo ST 250BHP (2015-2018) | 2015-2018 | Brake Caliper: ATE | Rear | Brake Pads: DB1763 | Disc Diameter [mm]: 271 |
