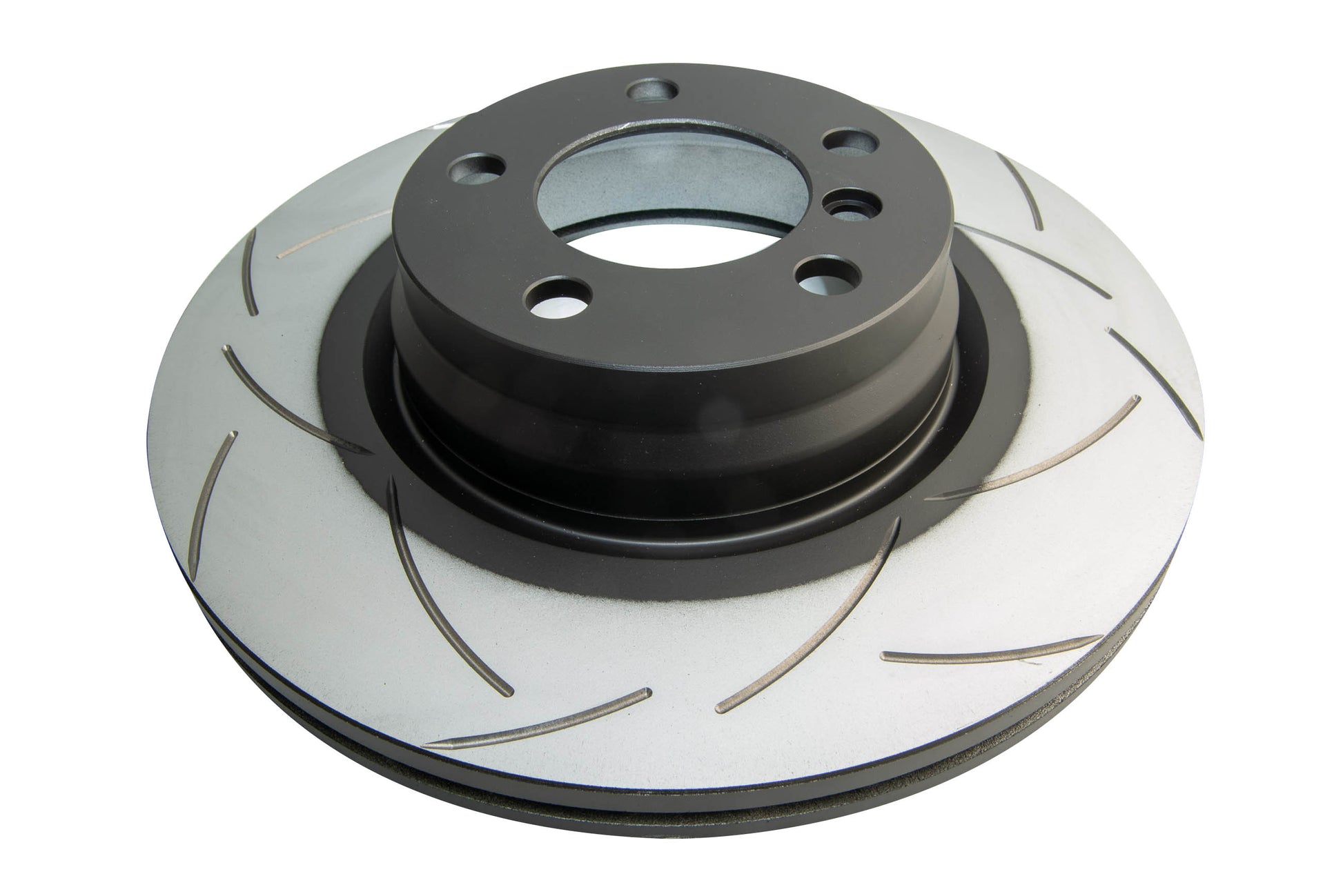

DBA
DBA2284S
DBA2284S
Regular price
€247,00 EUR
Regular price
Sale price
€247,00 EUR
Quantity
Couldn't load pickup availability
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 330 |
| Number of Holes | 5 |
| Inner Diameter [mm] | 79 |
| Thickness [mm] | 24 |
| Height [mm] | 73 |
| Pitch Circle [mm] | 0 |
| Stage | Stage 2 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*60531*00 |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| BMW | 2 Series (F22 Coupe) 228 | 2.0 Turbo 240BHP (2014-2016) | 2014-2016 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 2 Series (F22 Coupe) 230 | 2.0 Turbo 252BHP (2016-) | 2016- | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 2 Series (F23 Convertible) 228 | 2.0 Turbo 240BHP (2014-2016) | 2014-2016 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 2 Series (F23 Convertible) 230 | 2.0 Turbo 252BHP (2016-) | 2016- | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 3 Series (F30) 325 | 2.0 TD (2013-2019) | 2013-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 3 Series (F30) 328 | 2.0 Turbo (2012-2016) | 2012-2016 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 3 Series (F30) 330 | 2.0 Turbo 252BHP (2015-2019) | 2015-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 3 Series (F30) 330 | 3.0 TD (2012-2019) | 2012-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 3 Series (F31) 325 | 2.0 TD (2013-2019) | 2013-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 3 Series (F31) 328 | 2.0 Turbo (2012-2016) | 2012-2016 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 3 Series (F31) 330 | 2.0 Turbo 252BHP (2015-2019) | 2015-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 3 Series (F31) 330 | 3.0 TD (2012-2019) | 2012-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 3 Series (F34 GT) 325 | 2.0 TD (2013-2019) | 2013-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 3 Series (F34 GT) 328 | 2.0 Turbo (2013-2019) | 2013-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 3 Series (F34 GT) 330 | 3.0 TD (2014-2019) | 2014-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 3 Series (xDrive F30) 330 | 3.0 TD (2013-2019) | 2013-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 3 Series (xDrive F31) 330 | 3.0 TD (2013-2019) | 2013-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 3 Series (xDrive GT F34) 328 | 2.0 Turbo (2013-2019) | 2013-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 3 Series (xDrive GT F34) 330 | 3.0 TD (2014-2019) | 2014-2019 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (F32 Coupe) 425 | 2.0 TD 215BHP (2014-2020) | 2014-2020 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (F32 Coupe) 428 | 2.0 Turbo 242BHP (2013-2017) | 2013-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (F32 Coupe) 430 | 3.0 TD 254BHP (2013-2020) | 2013-2020 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (F33 Convertible) 425 | 2.0 TD 218BHP (2014-2020) | 2014-2020 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (F33 Convertible) 428 | 2.0 Turbo 242BHP (2013-2017) | 2013-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (F33 Convertible) 430 | 3.0 TD 258BHP (2014-2020) | 2014-2020 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (F36 Gran Coupe) 428 | 2.0 Turbo 242BHP (2014-2017) | 2014-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (F36 Gran Coupe) 430 | 3.0 TD 258BHP (2014-2020) | 2014-2020 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (F36 Gran Coupe) 435 | 3.0 Turbo 300BHP (2014-2017) | 2014-2017 | Brake Caliper: Brembo | Front | Brake Pads: DB2299 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (xDrive F32 Coupe) 428 | 2.0 Turbo 242BHP (2014-2017) | 2014-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (xDrive F32 Coupe) 430 | 2.0 Turbo 252BHP (2016-2020) | 2016-2020 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (xDrive F32 Coupe) 430 | 3.0 TD 254BHP (2014-2020) | 2014-2020 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (xDrive F33 Convertible) 428 | 2.0 Turbo 242BHP (2013-2020) | 2013-2020 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (xDrive F33 Convertible) 430 | 2.0 Turbo 252BHP (2016-2020) | 2016-2020 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (xDrive F36 Gran Coupe) 428 | 2.0 Turbo 242BHP (2014-2017) | 2014-2017 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (xDrive F36 Gran Coupe) 430 | 2.0 Turbo 252BHP (2016-2020) | 2016-2020 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (xDrive F36 Gran Coupe) 430 | 3.0 TD 258BHP (2014-2020) | 2014-2020 | Brake Caliper: ATE | Front | Brake Pads: DB2223 | Disc Diameter [mm]: 330 |
| BMW | 4 Series (xDrive F36 Gran Coupe) 435 | 3.0 Turbo 300BHP (2014-2017) | 2014-2017 | Brake Caliper: Brembo | Front | Brake Pads: DB2299 | Disc Diameter [mm]: 330 |
