DBA
DBA2490S
DBA2490S
Regular price
€172,42 EUR
Regular price
Sale price
€172,42 EUR
Quantity
Couldn't load pickup availability
| Feature Description | Advantage | Benefit |

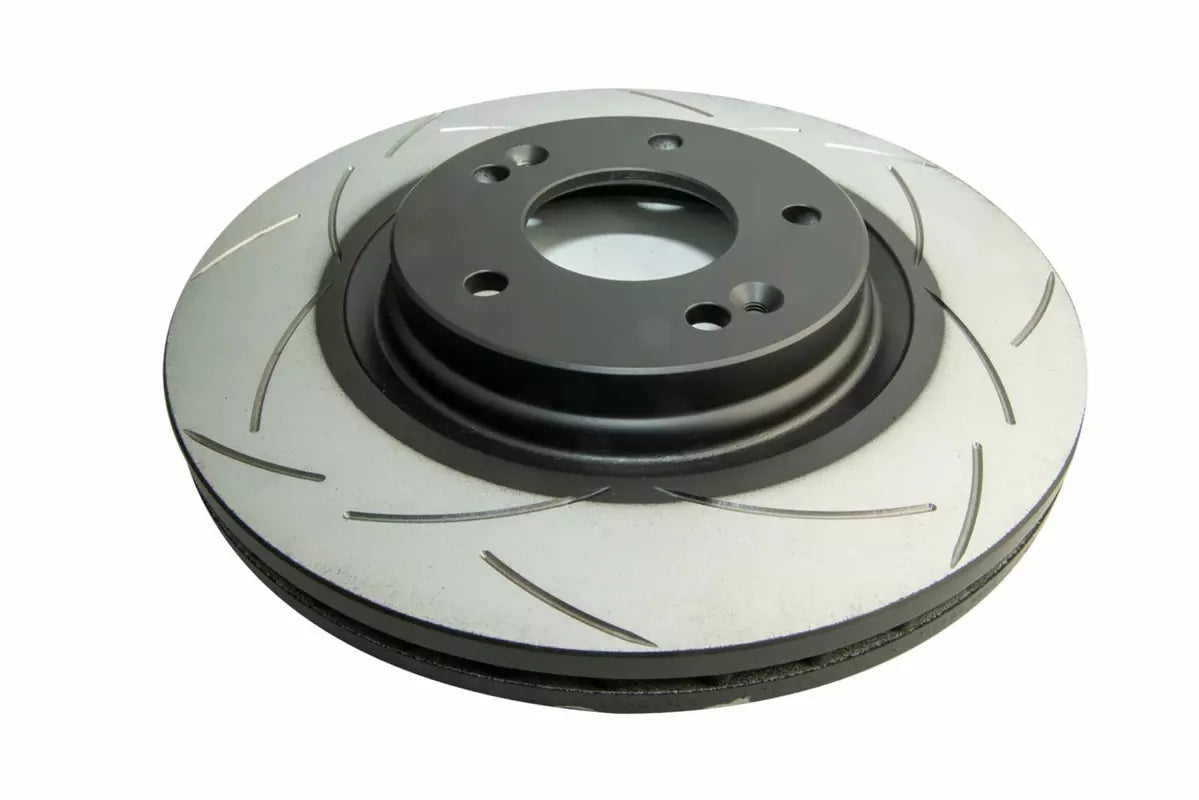

 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 305 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 5 |
| Inner Diameter [mm] | 69 |
| Thickness [mm] | 25 |
| Height [mm] | 47 |
| Pitch Circle [mm] | 114.3 |
| Stage | Stage 2 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| Compatibility | |||||
|---|---|---|---|---|---|
| HYUNDAI | i-30 PD | 1.0 Turbo 120BHP (2017-) | 2017- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | i-30 PD | 1.0 Turbo 120BHP Electric Handbrake (2017-) | 2017- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | i-30 PD | 1.4 100BHP (2017-) | 2017- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | i-30 PD | 1.4 Turbo 140BHP (2017-) | 2017- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | i-30 PD | 1.4 Turbo 140BHP Electric Handbrake (2017-) | 2017- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | i-30 PD | 1.6 TD 110BHP (2017-2018) | 2017-2018 | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | i-30 PD | 1.6 TD 110BHP Electric Handbrake (2017-2018) | 2017-2018 | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | i-30 PD | 1.6 TD 116BHP (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | i-30 PD | 1.6 TD 116BHP Electric Handbrake (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | i-30 PD | 1.6 TD 136BHP (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | i-30 PD | 1.6 TD 136BHP Electric Handbrake (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | i-30 PD | 1.6 TD 96BHP (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Kona | 1.0 Turbo 120BHP (2017-) | 2017- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Kona | 1.6 Hybrid 141BHP (2019-) | 2019- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Kona | 1.6 TD 115BHP (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Kona | 1.6 TD 136BHP (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Kona | 1.6 Turbo 177BHP (2017-) | 2017- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Kona | Electric (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Tucson Mk3 | 1.6 132BHP 2WD (2015-) | 2015- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Tucson Mk3 | 1.6 Turbo 176BHP 2WD (2015-) | 2015- | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Tucson Mk3 | 1.7 TD 116BHP 2WD (2015-2020) | 2015-2020 | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Tucson Mk3 | 1.7 TD 116BHP 2WD + Electric Handbrake (2015-2020) | 2015-2020 | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Tucson Mk3 | 1.7 TD 141BHP 2WD (2015-2020) | 2015-2020 | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Tucson Mk3 | 1.7 TD 141BHP 2WD + Electric Handbrake (2015-2020) | 2015-2020 | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Tucson Mk3 | 2.0 TD 136BHP 2WD (2015-2020) | 2015-2020 | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Tucson Mk3 | 2.0 TD 136BHP 2WD + Electric Handbrake (2015-2020) | 2015-2020 | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Tucson Mk3 | 2.0 TD 136BHP 4WD (2015-2020) | 2015-2020 | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Tucson Mk3 | 2.0 TD 136BHP 4WD + Electric Handbrake (2015-2020) | 2015-2020 | Front | Disc Diameter [mm]: 305 |
| HYUNDAI | Tucson Mk3 | 2.0 TD 185BHP 4WD + Electric Handbrake (2015-) | 2015- | Front | Disc Diameter [mm]: 305 |
| KIA | Ceed (CD) | 1.0 Turbo 118BHP (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| KIA | Ceed (CD) | 1.0 Turbo 118BHP Electric Handbrake (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| KIA | Ceed (CD) | 1.4 99BHP (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| KIA | Ceed (CD) | 1.4 99BHP Electric Handbrake (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| KIA | Ceed (CD) | 1.4 Turbo 138BHP (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| KIA | Ceed (CD) | 1.4 Turbo 138BHP Electric Handbrake (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| KIA | Ceed (CD) | 1.6 TD 114BHP (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| KIA | Ceed (CD) | 1.6 TD 114BHP Electric Handbrake (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| KIA | Ceed (CD) | 1.6 TD 135BHP (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| KIA | Ceed (CD) | 1.6 TD 135BHP Electric Handbrake (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| KIA | e-Niro | Electric (2019-) | 2019- | Front | Disc Diameter [mm]: 305 |
| KIA | Optima (JF) | 2.0 Hybrid 202BHP (2017-2020) | 2017-2020 | Front | Disc Diameter [mm]: 305 |
| KIA | Optima Sportswagon | 2.0 Hybrid 202BHP (2017-2020) | 2017-2020 | Front | Disc Diameter [mm]: 305 |
| KIA | ProCeed (CD) | 1.4 Turbo 138BHP Electric Handbrake (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| KIA | ProCeed (CD) | 1.6 TD 135BHP Electric Handbrake (2018-) | 2018- | Front | Disc Diameter [mm]: 305 |
| KIA | Sportage (QL) | 1.6 130BHP 2WD (2016-) | 2016- | Front | Disc Diameter [mm]: 305 |
| KIA | Sportage (QL) | 1.6 130BHP 2WD Electric Handbrake (2016-) | 2016- | Front | Disc Diameter [mm]: 305 |
| KIA | Sportage (QL) | 1.6 TD 134BHP 2WD (2016-) | 2016- | Front | Disc Diameter [mm]: 305 |
| KIA | Sportage (QL) | 1.6 TD 134BHP 2WD Electric Handbrake (2016-) | 2016- | Front | Disc Diameter [mm]: 305 |
| KIA | Sportage (QL) | 1.6 TD 134BHP 4WD (2016-) | 2016- | Front | Disc Diameter [mm]: 305 |
| KIA | Sportage (QL) | 1.6 TD 134BHP 4WD Electric Handbrake (2016-) | 2016- | Front | Disc Diameter [mm]: 305 |
| KIA | Sportage (QL) | 1.6 Turbo 174BHP 2WD (2016-) | 2016- | Front | Disc Diameter [mm]: 305 |
| KIA | Sportage (QL) | 1.6 Turbo 174BHP 2WD Electric Handbrake (2016-) | 2016- | Front | Disc Diameter [mm]: 305 |
| KIA | Sportage (QL) | 1.6 Turbo 174BHP AWD (2016-) | 2016- | Front | Disc Diameter [mm]: 305 |
| KIA | Sportage (QL) | 1.6 Turbo 174BHP AWD Electric Handbrake (2016-) | 2016- | Front | Disc Diameter [mm]: 305 |
| KIA | Sportage (QL) | 1.7 TD (2016-) | 2016- | Front | Disc Diameter [mm]: 305 |
| KIA | Sportage (QL) | 1.7 TD Electric Handbrake (2016-) | 2016- | Front | Disc Diameter [mm]: 305 |
| KIA | Sportage (QL) | 2.0 TD 134BHP AWD (2016-) | 2016- | Front | Disc Diameter [mm]: 305 |
| KIA | Sportage (QL) | 2.0 TD 182BHP AWD (2016-) | 2016- | Front | Disc Diameter [mm]: 305 |
| KIA | Sportage (QL) | 2.0 TD 182BHP AWD Electric Handbrake (2016-) | 2016- | Front | Disc Diameter [mm]: 305 |
| KIA | XCeed | 1.0 Turbo 120BHP (2019-) | 2019- | Front | Disc Diameter [mm]: 305 |
| KIA | XCeed | 1.0 Turbo 120BHP Electric Handbrake (2019-) | 2019- | Front | Disc Diameter [mm]: 305 |
| KIA | XCeed | 1.6 PHEV Hybrid 139BHP Electric Handbrake (2020-) | 2020- | Front | Disc Diameter [mm]: 305 |
| KIA | XCeed | 1.6 TD 115BHP (2019-) | 2019- | Front | Disc Diameter [mm]: 305 |
| KIA | XCeed | 1.6 TD 115BHP Electric Handbrake (2019-) | 2019- | Front | Disc Diameter [mm]: 305 |
