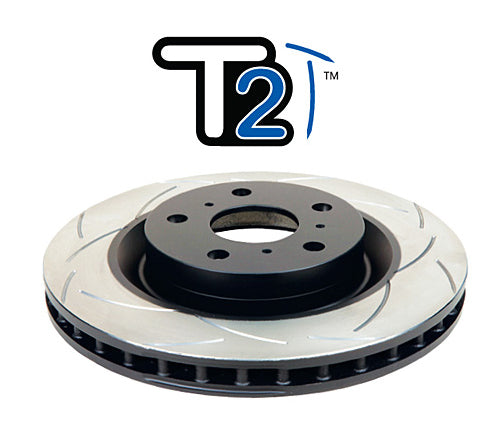

DBA
DBA3294S
DBA3294S
Regular price
€200,23 EUR
Regular price
Sale price
€200,23 EUR
Quantity
Couldn't load pickup availability
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 307 |
| Disc Vent | Kangaroo paw |
| Number of Holes | 5 |
| Minimum Thickness [mm] | 22,4 |
| Thickness [mm] | 24 |
| Height [mm] | 45.1 |
| Hole diameter[mm] | 67 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| BMW | 1 Series (F40) 116 | 1.5 TD 116BHP (2019-) | 2019- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| BMW | 1 Series (F40) 118 | 1.5 Turbo 140BHP (2019-) | 2019- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| BMW | 1 Series (F40) 118 | 2.0 TD 150BHP (2019-) | 2019- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| BMW | 2 Series (F45 Active Tourer) 218 | 1.5 Turbo 136BHP (2014-) | 2014- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| BMW | 2 Series (F45 Active Tourer) 220 | 2.0 TD 190BHP (2014-) | 2014- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| BMW | 2 Series (F45 Active Tourer) 220 | 2.0 Turbo 192BHP (2014-) | 2014- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| BMW | 2 Series (F46 Gran Tourer) 218 | 1.5 Turbo 136BHP (2015-) | 2015- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| BMW | 2 Series (F46 Gran Tourer) 218 | 2.0 TD 150BHP (2015-) | 2015- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| BMW | 2 Series (Gran Coupe F44) 218 | 1.5 Turbo 140BHP (2019-) | 2019- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| BMW | 2 Series (Gran Coupe F44) 220d | 2.0 TD 190BHP (2019-) | 2019- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| BMW | 2 Series (xDrive F45 Active Tourer) 220 | 2.0 TD 190BHP (2014-) | 2014- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| BMW | 2 Series (xDrive F46 Gran Tourer) 218 | 2.0 TD 150BHP (2015-) | 2015- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| BMW | X1 (F48) | 1.5 Turbo (18) 136BHP (2015-) | 2015- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| BMW | X1 (F48) | 2.0 TD (18d) 150BHP (2015-) | 2015- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| BMW | X2 (F39) | 1.5 Turbo (18) 140BHP (2019-) | 2019- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| BMW | X2 (F39) | 2.0 TD (18d) 150BHP (2018-) | 2018- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| BMW | X2 xDrive (F39) | 2.0 TD (18d) 150BHP (2018-) | 2018- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| MINI | Mini Clubman (F54) | 2.0 TD 190BHP (2015-) | 2015- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| MINI | Mini Clubman (F54) | 2.0 Turbo 192BHP (2015-) | 2015- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| MINI | Mini Countryman (F60) | 1.5 Turbo Cooper 136BHP (2017-) | 2017- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| MINI | Mini Countryman (F60) | 1.5 Turbo Cooper 136BHP 4WD (2017-) | 2017- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| MINI | Mini Countryman (F60) | 2.0 TD Cooper 150BHP (2017-) | 2017- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
| MINI | Mini Countryman (F60) | 2.0 TD Cooper 150BHP 4WD (2017-) | 2017- | Brake Caliper: TRW | Front | Brake Pads: DB2377 | Disc Diameter [mm]: 307 |
