DBA
DBA42386S
DBA42386S
Regular price
€305,71 EUR
Regular price
Sale price
€305,71 EUR
Quantity
Couldn't load pickup availability
| Feature Description | Advantage | Benefit |

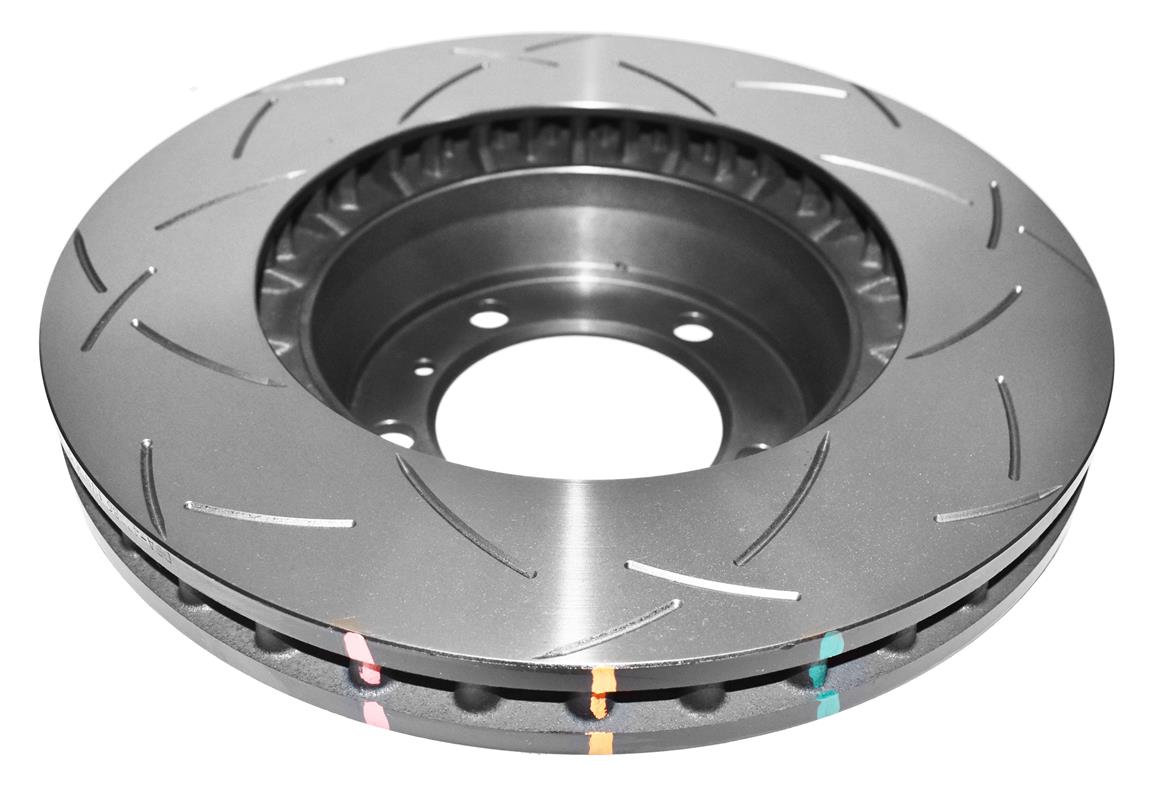

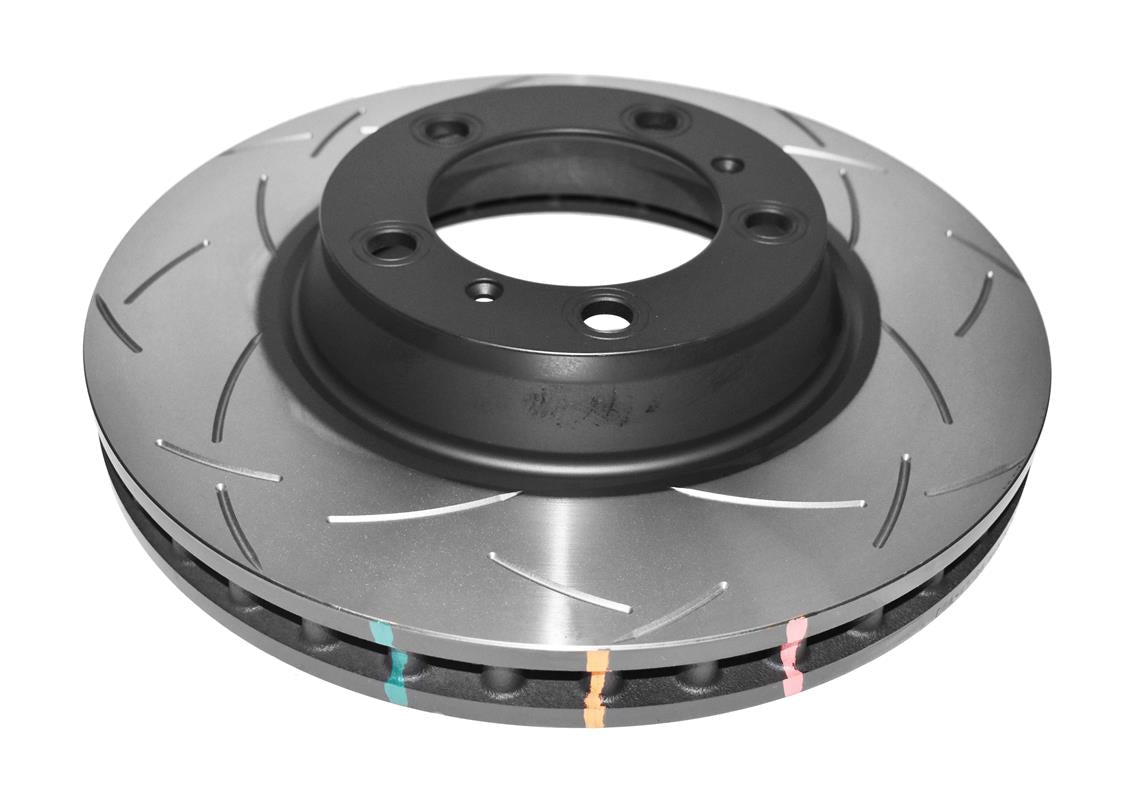

 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 330 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 5 |
| Inner Diameter [mm] | 98 |
| Minimum Thickness [mm] | 32 |
| Thickness [mm] | 34 |
| Height [mm] | 69.5 |
| Stage | Stage 4 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| Compatibility | ||||||
|---|---|---|---|---|---|---|
| PORSCHE | 911 (996) | 3.6 Carrera 4S Cast Iron Disc Only (2002-2005) | 2002-2005 | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | 911 (996) | 3.6 Carrera S Cast Iron Disc Only (2003-2005) | 2003-2005 | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | 911 (996) | 3.6 Twin Turbo 4 Cast Iron Disc Only (2000-2001) | 2000-2001 | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | 911 (996) | 3.6 Twin Turbo 4 Cast Iron Disc Only (2001-2004) | 2001-2004 | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | 911 (996) | 3.6 Twin Turbo 4S Cast Iron Disc Only (2003-2005) | 2003-2005 | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | 911 (997) | 3.8 Carrera 4 GTS 410BHP Cast Iron Disc Only (2010-2012) | 2010-2012 | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | 911 (997) | 3.8 Carrera 4S Cast Iron Disc Only (2004-2005) | 2004-2005 | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | 911 (997) | 3.8 Carrera 4S Cast Iron Disc Only (2005-2008) | 2005-2008 | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | 911 (997) | 3.8 Carrera 4S Cast Iron Disc Only (2008-2012) | 2008-2012 | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | 911 (997) | 3.8 Carrera 4S Targa 355BHP Cast Iron Disc Only (2006-2009) | 2006-2009 | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | 911 (997) | 3.8 Carrera 4S Targa 385BHP Cast Iron Disc Only (2008-2012) | 2008-2012 | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | 911 (997) | 3.8 Carrera GTS 410BHP Cast Iron Disc Only (2010-2012) | 2010-2012 | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | 911 (997) | 3.8 Carrera S Cast Iron Disc Only (2004-2005) | 2004-2005 | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | 911 (997) | 3.8 Carrera S Cast Iron Disc Only (2005-2008) | 2005-2008 | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | 911 (997) | 3.8 Carrera S Cast Iron Disc Only (2008-2012) | 2008-2012 | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | Boxster (718) | 2.5 Turbo 350BHP (2016-) | 2016- | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | Boxster (718) | 2.5 Turbo GTS 365BHP (2018-) | 2018- | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | Cayman (718) | 2.5 Turbo 350BHP Cast Iron Disc Only (2016-) | 2016- | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
| PORSCHE | Cayman (718) | 2.5 Turbo GTS 365BHP Cast Iron Disc Only (2018-) | 2018- | Brake Caliper: Brembo | Front | Disc Diameter [mm]: 330 |
