DBA

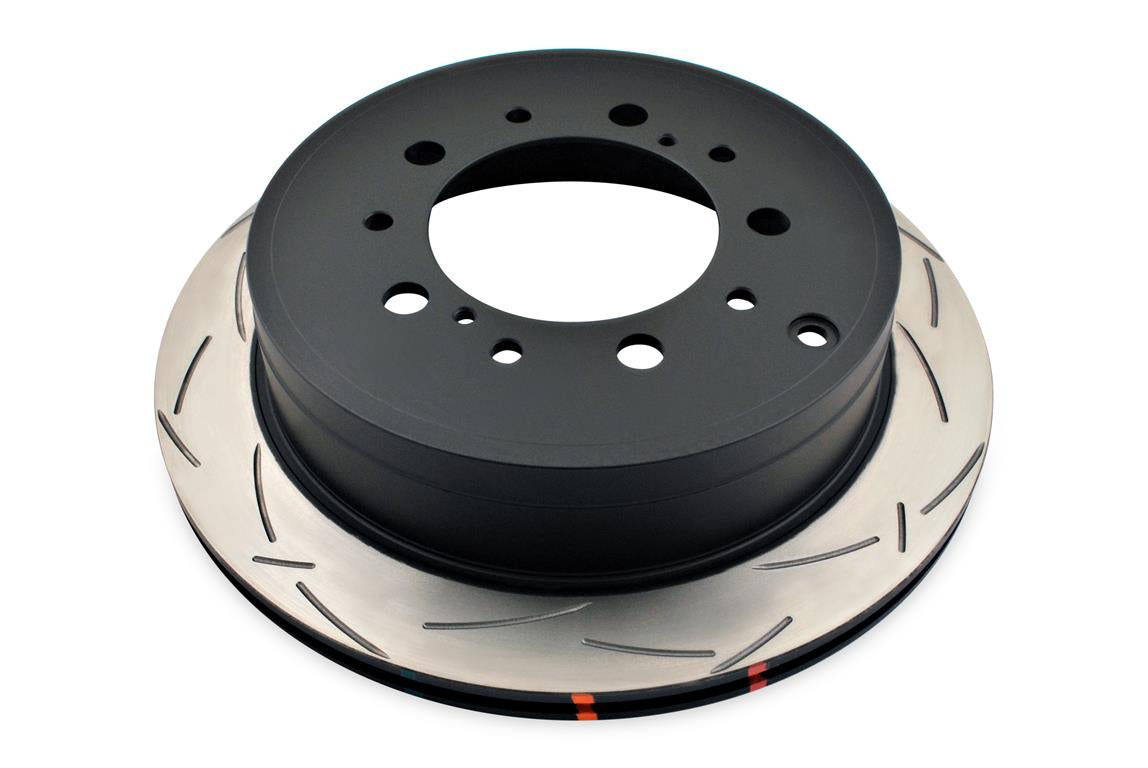

DBA42723S
DBA42723S
Regular price
€313,74 EUR
Regular price
Sale price
€313,74 EUR
Quantity
Couldn't load pickup availability
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 345 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 5 |
| Inner Diameter [mm] | 112 |
| Minimum Thickness [mm] | 16 |
| Thickness [mm] | 18 |
| Height [mm] | 76.5 |
| Pitch Circle [mm] | 150 |
| Stage | Stage 4 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*60517*00 |
| Compatibility | ||||||
|---|---|---|---|---|---|---|
| LEXUS | LX450 | 4.5 TD (2015-) | 2015- | Rear | Brake Pads: DB1857 | Disc Diameter [mm]: 345 |
| LEXUS | LX570 | 5.7 (2007-2015) | 2007-2015 | Rear | Brake Pads: DB1857 | Disc Diameter [mm]: 345 |
| LEXUS | LX570 | 5.7 (2015-) | 2015- | Rear | Brake Pads: DB1857 | Disc Diameter [mm]: 345 |
| TOYOTA | Landcruiser 200 series | 4.5 TD (2008-2015) | 2008-2015 | Rear | Brake Pads: DB1857 | Disc Diameter [mm]: 345 |
| TOYOTA | Landcruiser 200 series | 4.6 (2012-2015) | 2012-2015 | Rear | Brake Pads: DB1857 | Disc Diameter [mm]: 345 |
| TOYOTA | Landcruiser 200 series | 4.7 (2007-2015) | 2007-2015 | Rear | Brake Pads: DB1857 | Disc Diameter [mm]: 345 |
| TOYOTA | Landcruiser 200 series | 5.7 (2008-2015) | 2008-2015 | Rear | Brake Pads: DB1857 | Disc Diameter [mm]: 345 |
| TOYOTA | Landcruiser 200 series | 5.7 (2016-) | 2016- | Rear | Brake Pads: DB1857 | Disc Diameter [mm]: 345 |
| TOYOTA | Sequoia | 4.6 310BHP (2010-) | 2010- | Rear | Brake Pads: DB1857 | Disc Diameter [mm]: 345 |
| TOYOTA | Sequoia | 4.7 276BHP (2007-2010) | 2007-2010 | Rear | Brake Pads: DB1857 | Disc Diameter [mm]: 345 |
| TOYOTA | Sequoia | 5.7 381BHP (2007-) | 2007- | Rear | Brake Pads: DB1857 | Disc Diameter [mm]: 345 |
