DBA42769

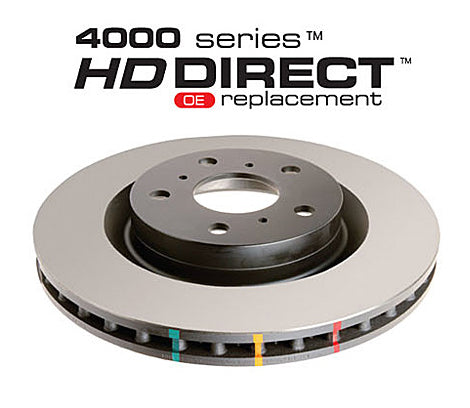

4000 Series disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded braking above and beyond standard OE levels.

4000 Series HD features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as controlled race divisions.

Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA’s metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again.

Featuring DBA’s Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

Diameter [mm]	365
Disc Vent	Vented
Number of Holes	5
Inner Diameter [mm]	70
Minimum Thickness [mm]	26
Thickness [mm]	28
Height [mm]	66.4
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info

Compatibility
TESLA	Model S	Electric AWD front pads with balance weights	2012-2017	Brake Caliper: Brembo	Rear	Brake Pads: DB2260	Disc Diameter [mm]: 365
TESLA	Model S	Electric RWD front pads with balance weights	2012-2017	Brake Caliper: Brembo	Rear	Brake Pads: DB2260	Disc Diameter [mm]: 365
TESLA	Model X	Electric AWD front pads with balance weights	2015-	Brake Caliper: Brembo	Rear	Brake Pads: DB2260	Disc Diameter [mm]: 365
