DBA

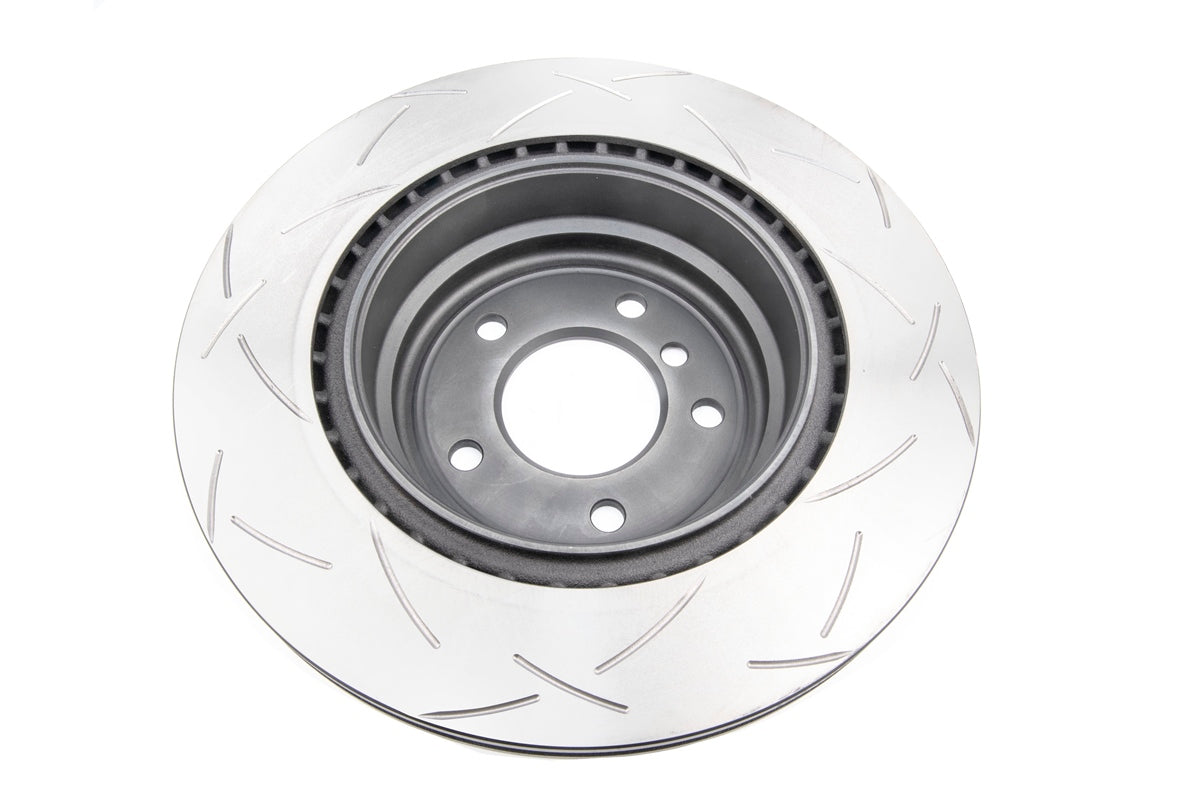

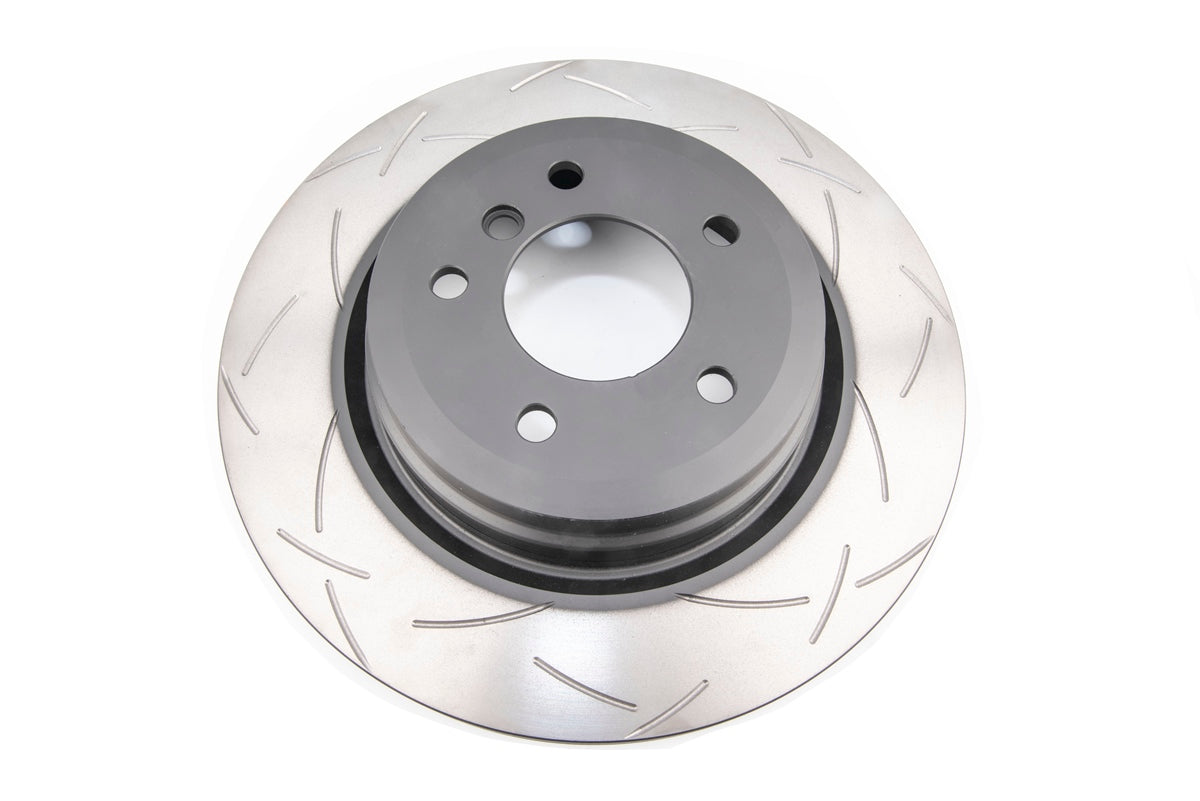

DBA42859S
DBA42859S
Regular price
€288,16 EUR
Regular price
Sale price
€288,16 EUR
Quantity
Couldn't load pickup availability
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 336 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 5 |
| Inner Diameter [mm] | 75 |
| Minimum Thickness [mm] | 20,4 |
| Thickness [mm] | 22 |
| Height [mm] | 67.2 |
| Pitch Circle [mm] | 120 |
| Stage | Stage 4 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*60531*00 |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| BMW | 3 Series (E90) 325 | 2.5 Sport (2005-2010) | 2005-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 325 | 2.5 Sport (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 325 | 3.0 TD (2006-2010) | 2006-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 325 | 3.0 TD (2007-2010) | 2007-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 325 | 3.0 TD (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 330 | 3.0 (2005-2007) | 2005-2007 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 330 | 3.0 (2007-2010) | 2007-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 330 | 3.0 (2007-2012) | 2007-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 330 | 3.0 (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 330 | 3.0 TD (2005-2007) | 2005-2007 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 330 | 3.0 TD (2005-2010) | 2005-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 330 | 3.0 TD (2007-2010) | 2007-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 330 | 3.0 TD (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 335 | 3.0 TD (2006-2010) | 2006-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 335 | 3.0 TD (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 335 | 3.0 Turbo (2011-2012) | 2011-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 335 | 3.0 Twin Turbo (2006-2010) | 2006-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E90) 335 | 3.0 Twin Turbo (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 325 | 2.5 Sport (2005-2010) | 2005-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 325 | 2.5 Sport (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 325 | 3.0 (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 325 | 3.0 TD (2006-2010) | 2006-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 325 | 3.0 TD (2007-2010) | 2007-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 325 | 3.0 TD (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 330 | 3.0 (2005-2007) | 2005-2007 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 330 | 3.0 (2007-2010) | 2007-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 330 | 3.0 (2007-2012) | 2007-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 330 | 3.0 (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 330 | 3.0 TD (2005-2010) | 2005-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 330 | 3.0 TD (2007-2010) | 2007-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 330 | 3.0 TD (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 335 | 3.0 TD (2006-2010) | 2006-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 335 | 3.0 TD (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 335 | 3.0 Twin Turbo (2006-2010) | 2006-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E91) 335 | 3.0 Twin Turbo (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E92) 325 | 3.0 TD (2006-2010) | 2006-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E92) 325 | 3.0 TD (2010-2013) | 2010-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E92) 330 | 3.0 (2005-2010) | 2005-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E92) 330 | 3.0 (2010-2013) | 2010-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E92) 330 | 3.0 TD (2005-2010) | 2005-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E92) 330 | 3.0 TD (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E92) 330 | 3.0 TD (2010-2013) | 2010-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E92) 335 | 3.0 TD (2006-2010) | 2006-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E92) 335 | 3.0 TD (2010-2013) | 2010-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E92) 335 | 3.0 Turbo (2011-2013) | 2011-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E92) 335 | 3.0 Twin Turbo (2006-2010) | 2006-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E92) 335 | 3.0 Twin Turbo (2010-2013) | 2010-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E93) 325 | 3.0 TD (2006-2010) | 2006-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E93) 325 | 3.0 TD (2010-2013) | 2010-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E93) 330 | 3.0 (2007-2010) | 2007-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E93) 330 | 3.0 (2010-2013) | 2010-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E93) 330 | 3.0 TD (2007-2010) | 2007-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E93) 330 | 3.0 TD (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E93) 330 | 3.0 TD (2010-2013) | 2010-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E93) 335 | 3.0 Turbo (2011-2013) | 2011-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E93) 335 | 3.0 Twin Turbo (2007-2010) | 2007-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (E93) 335 | 3.0 Twin Turbo (2010-2013) | 2010-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E90) 325 | 3.0 (2007-2008) | 2007-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E90) 330 | 3.0 (2005-2008) | 2005-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E90) 330 | 3.0 (2007-2008) | 2007-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E90) 330 | 3.0 TD (2005-2008) | 2005-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E90) 330 | 3.0 TD (2007-2008) | 2007-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E90) 335 | 3.0 Twin Turbo (2007-2008) | 2007-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E91) 325 | 3.0 (2007-2008) | 2007-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E91) 330 | 3.0 (2005-2007) | 2005-2007 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E91) 330 | 3.0 (2007-2008) | 2007-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E91) 330 | 3.0 TD (2005-2007) | 2005-2007 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E91) 330 | 3.0 TD (2007-2008) | 2007-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E91) 335 | 3.0 Twin Turbo (2007-2008) | 2007-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E92) 325 | 3.0 (2007-2008) | 2007-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1858 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E92) 330 | 3.0 (2006-2008) | 2006-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E92) 330 | 3.0 TD (2006-2008) | 2006-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E92) 330 | 3.0 TD (2007-2008) | 2007-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (X 4WD E92) 335 | 3.0 Twin Turbo (2007-2008) | 2007-2008 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E90) 325 | 3.0 (2008-2010) | 2008-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E90) 325 | 3.0 (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E90) 330 | 3.0 (2008-2010) | 2008-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E90) 330 | 3.0 (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E90) 330 | 3.0 TD (2008-2010) | 2008-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E90) 330 | 3.0 TD (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E90) 335 | 3.0 Turbo (2011-2013) | 2011-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E90) 335 | 3.0 Twin Turbo (2008-2010) | 2008-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E90) 335 | 3.0 Twin Turbo (2010-2013) | 2010-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E91) 325 | 3.0 (2008-2010) | 2008-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E91) 325 | 3.0 (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E91) 330 | 3.0 (2008-2010) | 2008-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E91) 330 | 3.0 (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E91) 330 | 3.0 TD (2008-2010) | 2008-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E91) 330 | 3.0 TD (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E91) 335 | 3.0 Twin Turbo (2008-2010) | 2008-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E91) 335 | 3.0 Twin Turbo (2010-2012) | 2010-2012 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E92) 330 | 3.0 (2008-2010) | 2008-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E92) 330 | 3.0 (2010-2013) | 2010-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E92) 330 | 3.0 TD (2008-2010) | 2008-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E92) 330 | 3.0 TD (2010-2013) | 2010-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E92) 335 | 3.0 Turbo (2011-2013) | 2011-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E92) 335 | 3.0 Twin Turbo (2008-2010) | 2008-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | 3 Series (xDrive E92) 335 | 3.0 Twin Turbo (2010-2013) | 2010-2013 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | X1 (E84) | 2.0 Twin TD (23d) 204BHP (2010-2015) | 2010-2015 | Brake Caliper: ATE | Rear | Disc Diameter [mm]: 336 | |
| BMW | X1 (E84) | 2.0 Twin TD (25d) 215BHP (2012-2015) | 2012-2015 | Brake Caliper: ATE | Rear | Disc Diameter [mm]: 336 | |
| BMW | X1 (E84) | 3.0 (28) 258BHP (2009-2010) | 2009-2010 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
| BMW | X1 (E84) | 3.0 (28) 258BHP (2010-2011) | 2010-2011 | Brake Caliper: ATE | Rear | Brake Pads: DB1864 | Disc Diameter [mm]: 336 |
