DBA
DBA43024S
DBA43024S
Regular price
€392,28 EUR
Regular price
Sale price
€392,28 EUR
Quantity
Couldn't load pickup availability
| Feature Description | Advantage | Benefit |

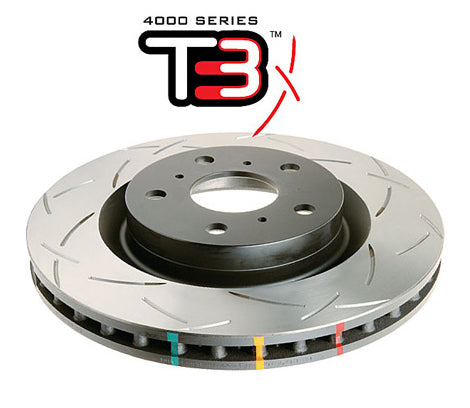

 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Disc Vent | Vented |
| Diameter [mm] | 354.7 |
| Height [mm] | 48.2 |
| Thickness [mm] | 32 |
| Minimum Thickness [mm] | 30 |
| Inner Diameter [mm] | 71 |
| Number of Holes | 5 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*60535*00 |
| Compatibility | ||||||
|---|---|---|---|---|---|---|
| DAIMLER | Super Eight | 4.2 Supercharged (2006-2007) | 2006-2007 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| DAIMLER | Super Eight | 4.2 Supercharged (2007-2010) | 2007-2010 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| DAIMLER | Super V8 | 4.2 Supercharged (2006-2008) | 2006-2008 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | F-Type | 2.0 Turbo 300BHP (2017-) | 2017- | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | F-Type | 3.0 Supercharged 340BHP (2013-2018) | 2013-2018 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | S-Type | 4.2 R Supercharged 390BHP (2006-2008) | 2006-2008 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XF (X250) | 2.0 Turbo 241BHP (2012-2015) | 2012-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XF (X250) | 3.0 Supercharged 340BHP (2012-2015) | 2012-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XF (X250) | 3.0 Twin TD 211BHP (2009-2011) | 2009-2011 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XF (X250) | 3.0 Twin TD 240BHP (2009-2015) | 2009-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XF (X250) | 3.0 Twin TD 275BHP (2009-2015) | 2009-2015 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XF (X250) | 4.2 Supercharged 416BHP (2008-2010) | 2008-2010 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XF (X250) | 5.0 385BHP (2009-2012) | 2009-2012 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XF Sportbrake | 3.0 Twin TD 240BHP (2012-2016) | 2012-2016 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XF Sportbrake | 3.0 Twin TD 275BHP (2012-2016) | 2012-2016 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XJ | 2.0 Turbo 240BHP (2012-2019) | 2012-2019 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XJ | 3.0 Supercharged 340BHP (2012-2019) | 2012-2019 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XJ | 3.0 Twin TD 275BHP (2010-2016) | 2010-2016 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XJ | 3.0 Twin TD 300BHP (2015-2016) | 2015-2016 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XJ | 3.0 Twin TD 300BHP (2015-2019) | 2015-2019 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XJ | 5.0 385BHP (2010-2019) | 2010-2019 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XJR | 4.2 Supercharged (2006-2009) | 2006-2009 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XK | 5.0 385BHP (2009-2014) | 2009-2014 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
| JAGUAR | XKR | 4.2 Supercharged (2006-2009) | 2006-2009 | Brake Caliper: ATE | Front | Disc Diameter [mm]: 354.7 |
