DBA
DBA4474
DBA4474
Regular price
€229,76 EUR
Regular price
Sale price
€229,76 EUR
Quantity
Couldn't load pickup availability

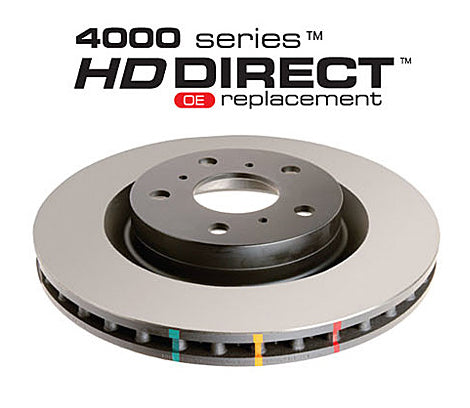

4000 Series disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded braking above and beyond standard OE levels.
4000 Series HD features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as controlled race divisions.
Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA’s metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again.
Featuring DBA’s Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).
| Diameter [mm] | 262 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 4 |
| Inner Diameter [mm] | 64 |
| Minimum Thickness [mm] | 19 |
| Thickness [mm] | 21 |
| Height [mm] | 45 |
| Pitch Circle [mm] | 100 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| Compatibility | ||||||
|---|---|---|---|---|---|---|
| HONDA | City | 1.4 (2008-2014) | 2008-2014 | Front | Brake Pads: DB1991 | Disc Diameter [mm]: 262 |
| HONDA | Civic (4th Gen) EE | 1.6 (1990-1991) | 1990-1991 | Front | Brake Pads: DB1133 | Disc Diameter [mm]: 262 |
| HONDA | Civic (5th Gen) EG5 | 1.6 ESi (1991-1996) | 1991-1996 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (5th Gen) EG6 | 1.6 VTi (1991-1996) | 1991-1996 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (5th Gen) EG8 | 1.5 Auto (1991-1996) | 1991-1996 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (5th Gen) EG9 | 1.6 VTi (1991-1996) | 1991-1996 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (5th Gen) EH9 | 1.6 ESi (1991-1996) | 1991-1996 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (5th Gen) MA9 | 1.5 (1995-1997) | 1995-1997 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic (5th Gen) MB1 | 1.6 (1995-1997) | 1995-1997 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic (6th Gen) EJ9 | 1.4 (1998-2001) | 1998-2001 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (6th Gen) EK1 | 1.6 VTec (1998-1999) | 1998-1999 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (6th Gen) EK3 | 1.5 (1996-1999) | 1996-1999 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (6th Gen) EK4 | 1.6 VTi VTec (1996-2001) | 1996-2001 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (6th Gen) MA8 | 1.4 (1995-1997) | 1995-1997 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic (6th Gen) MB | 2.0 TD (1997-1999) | 1997-1999 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic (6th Gen) MB2 | 1.4 (1997-1999) | 1997-1999 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic (6th Gen) MB2 | 1.4 (1999-2000) | 1999-2000 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic (6th Gen) MB2 | 1.4 (2000-2002) | 2000-2002 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (6th Gen) MB3 | 1.5 (1997-2000) | 1997-2000 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic (6th Gen) MB3 | 1.5 (2000-2001) | 2000-2001 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (6th Gen) MB4 | 1.6 (1997-1999) | 1997-1999 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic (6th Gen) MB4 | 1.6 (1999-2001) | 1999-2001 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (7th Gen) EP1 | 1.4 (2001-2006) | 2001-2006 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic (7th Gen) EP2 | 1.6 (2001-2006) | 2001-2006 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic (7th Gen) EP2 | 1.6 (2001-2006) | 2001-2006 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (7th Gen) ES4 | 1.4 (2001-2005) | 2001-2005 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (7th Gen) ES5 | 1.6 (2001-2006) | 2001-2006 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (7th Gen) ES9 | 1.3 Hybrid (2003-2006) | 2003-2006 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (7th Gen) EU5 | 1.4 (2001-2002) | 2001-2002 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (7th Gen) EU5 | 1.4 (2002-2006) | 2002-2006 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic (7th Gen) EU6 | 1.6 (2001-2002) | 2001-2002 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (7th Gen) EU6 | 1.6 (2002-2006) | 2002-2006 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic (7th Gen) EU7 | 1.4 (2001-2006) | 2001-2006 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (7th Gen) EU8 | 1.6 (2001-2002) | 2001-2002 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic (7th Gen) EU8 | 1.6 (2002-2006) | 2002-2006 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic Aerodeck MB8 | 1.5 (1998-2001) | 1998-2001 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic Aerodeck MB9 | 1.5 (1998-2000) | 1998-2000 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic Aerodeck MC1 | 1.6 (1998-1999) | 1998-1999 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic Aerodeck MC1 | 1.6 (1999-2001) | 1999-2001 | Front | Disc Diameter [mm]: 262 | |
| HONDA | Civic Coupe EJ6 | 1.6 (1998-2001) | 1998-2001 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic Coupe EJ6 | 1.6 Auto (1996-1998) | 1996-1998 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic Coupe EJ8 | 1.6 (1996-2001) | 1996-2001 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic Coupe EM1 | 1.6 (1999-2001) | 1999-2001 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic Coupe EM2 | 1.7 (2001-2005) | 2001-2005 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic CRX Del Sol EG2 | 1.6 VTi VTec (1992-1995) | 1992-1995 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic CRX Del Sol EH6 | 1.6 ESi VTec (1992-1995) | 1992-1995 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic CRX EE8 | 1.6 VTec (1990-1992) | 1990-1992 | Front | Brake Pads: DB1133 | Disc Diameter [mm]: 262 |
| HONDA | Civic CRX EG2 | 1.6 VTi VTec (1995-1998) | 1995-1998 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Civic CRX EH6 | 1.6 ESi VTec (1995-1998) | 1995-1998 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Insight | 1.3 Hybrid (2009-2014) | 2009-2014 | Front | Brake Pads: DB1991 | Disc Diameter [mm]: 262 |
| HONDA | Integra (Not UK) DA6 | 1.6 (1989-1993) | 1989-1993 | Front | Brake Pads: DB1133 | Disc Diameter [mm]: 262 |
| HONDA | Integra (Not UK) DA8 | 1.6 (1989-1993) | 1989-1993 | Front | Brake Pads: DB1133 | Disc Diameter [mm]: 262 |
| HONDA | Integra (Not UK) DB6 | 1.6 (1993-2001) | 1993-2001 | Front | Brake Pads: DB1662 | Disc Diameter [mm]: 262 |
| HONDA | Jazz | 1.2 (2008-2015) | 2008-2015 | Front | Brake Pads: DB1991 | Disc Diameter [mm]: 262 |
| HONDA | Jazz | 1.3 Hybrid (2011-2015) | 2011-2015 | Front | Brake Pads: DB1991 | Disc Diameter [mm]: 262 |
| HONDA | Jazz | 1.4 (2008-2015) | 2008-2015 | Front | Brake Pads: DB1991 | Disc Diameter [mm]: 262 |
| HONDA | Jazz GK3 | 1.3 (2015-2020) | 2015-2020 | Front | Brake Pads: DB1991 | Disc Diameter [mm]: 262 |
| MG | MG Express | 1.4 (2003-2005) | 2003-2005 | Front | Disc Diameter [mm]: 262 | |
| MG | MG Express | 1.8 120BHP (2003-2005) | 2003-2005 | Front | Disc Diameter [mm]: 262 | |
| MG | MG Express | 2.0 TD (2003-2005) | 2003-2005 | Front | Disc Diameter [mm]: 262 | |
| MG | ZR | 1.8 120BHP (2001-2005) | 2001-2005 | Front | Disc Diameter [mm]: 262 | |
| MG | ZR | 2.0 TD (2001-2005) | 2001-2005 | Front | Disc Diameter [mm]: 262 | |
| MG | ZS | 1.4 (2001-2005) | 2001-2005 | Front | Disc Diameter [mm]: 262 | |
| MG | ZS | 1.6 (2001-2005) | 2001-2005 | Front | Disc Diameter [mm]: 262 | |
| MG | ZS | 1.8 (2001-2005) | 2001-2005 | Front | Disc Diameter [mm]: 262 | |
| MG | ZS | 2.0 TD (2002-2005) | 2002-2005 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 25 | 1.4 (1999-2005) | 1999-2005 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 25 | 1.6 (1999-2005) | 1999-2005 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 25 | 1.8 (1999-2005) | 1999-2005 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 25 | 2.0 TD (1999-2005) | 1999-2005 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 45 | 1.4 (1999-2005) | 1999-2005 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 45 | 1.6 (1999-2005) | 1999-2005 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 45 | 1.8 (1999-2005) | 1999-2005 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 45 | 2.0 (1999-2005) | 1999-2005 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 45 | 2.0 TD (1999-2005) | 1999-2005 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 200 | 1.4 (1995-2000) | 1995-2000 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 200 | 1.6 (1995-2000) | 1995-2000 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 200 | 1.8 (1996-2000) | 1996-2000 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 200 | 2.0 (1995-2000) | 1995-2000 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 200 | 2.0 TD (1995-2000) | 1995-2000 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 400 | 1.4 (1995-2000) | 1995-2000 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 400 | 1.6 (1995-2000) | 1995-2000 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 400 | 1.8 (1996-2000) | 1996-2000 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 400 | 2.0 (1995-2000) | 1995-2000 | Front | Disc Diameter [mm]: 262 | |
| ROVER | 400 | 2.0 TD (1995-2000) | 1995-2000 | Front | Disc Diameter [mm]: 262 | |
| ROVER | Commerce | 1.4 (2003-2005) | 2003-2005 | Front | Disc Diameter [mm]: 262 | |
| ROVER | Commerce | 2.0 TD (2003-2005) | 2003-2005 | Front | Disc Diameter [mm]: 262 | |
| ROVER | Streetwise | 1.4 (2003-2005) | 2003-2005 | Front | Disc Diameter [mm]: 262 | |
| ROVER | Streetwise | 1.6 (2004-2005) | 2004-2005 | Front | Disc Diameter [mm]: 262 | |
| ROVER | Streetwise | 1.8 (2004-2005) | 2004-2005 | Front | Disc Diameter [mm]: 262 | |
| ROVER | Streetwise | 2.0 TD (2003-2005) | 2003-2005 | Front | Disc Diameter [mm]: 262 | |
