DBA52072.1CSR

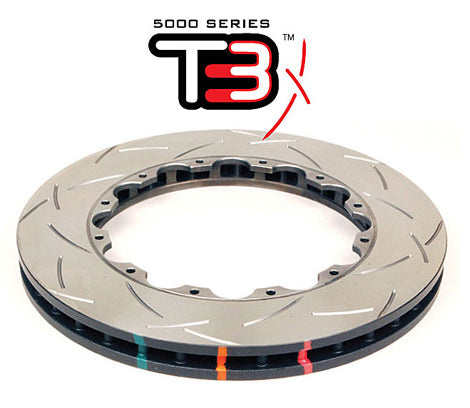

5000 series - Slotted L/R - Rotor Only

Diameter [mm]	378
Thickness [mm]	36
Disc Vent	Kangaroo Paw
Annulus [mm] (Maximum useable pad width)	70
Pitch Circle Diameter (P.C.D.)	215,9
Inside Diameter [mm]	234,7
Diameter & Number of Bolt Holes [mm]	6.4 (x12)
Air Gap [mm]	18
Offset [mm]	1
Flange Inside Diameter [mm]	196
Flange Thickness [mm]	7,5
Hole Type	Round Hole
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
Replacement Nuts	Included
