DBA52906.1LS

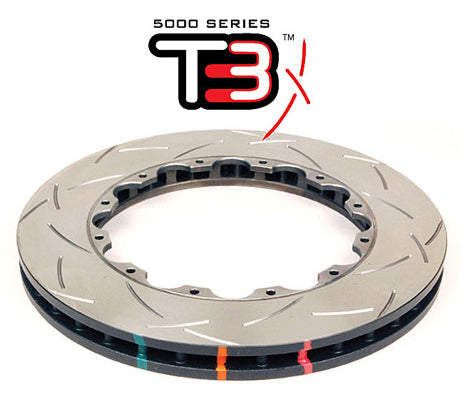

5000 series - T3 Slotted - Rotor Only Left Hand

Diameter [mm]	355
Thickness [mm]	32
Disc Vent	48 Curved Vanes
Annulus [mm] (Maximum useable pad width)	54
Pitch Circle Diameter (P.C.D.)	234,95
Inside Diameter [mm]	248
Diameter & Number of Bolt Holes [mm]	6.4 (x12)
Air Gap [mm]	16
Offset [mm]	0
Flange Inside Diameter [mm]	222
Flange Thickness [mm]	6,4
Hole Type	Round Hole
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
Replacement Nuts	Included
