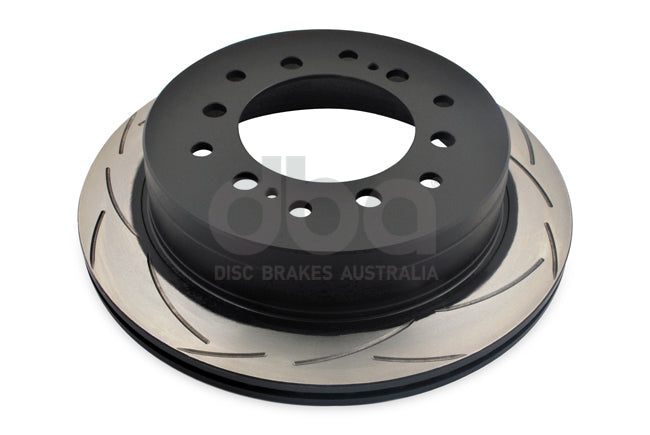

DBA
DBA793S
DBA793S
Regular price
€187,25 EUR
Regular price
Sale price
€187,25 EUR
Quantity
Couldn't load pickup availability
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots"
|
Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 "KANGAROO_PAW") Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
|
Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron
|
An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling
|
Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring
|
Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas
|
Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
| Diameter [mm] | 312 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 6 |
| Inner Diameter [mm] | 106 |
| Minimum Thickness [mm] | 16 |
| Thickness [mm] | 18 |
| Height [mm] | 68 |
| Pitch Circle [mm] | 140 |
| Stage | Stage 2 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*60525*00 |
| Compatibility | ||||||
|---|---|---|---|---|---|---|
| TOYOTA | Landcruiser GRJ120 | 4.0 (2003-2008) | 2003-2008 | Rear | Brake Pads: DB1200 | Disc Diameter [mm]: 312 |
| TOYOTA | Landcruiser KDJ120 | 3.0 TD (2003-2009) | 2003-2009 | Rear | Brake Pads: DB1200 | Disc Diameter [mm]: 312 |
| TOYOTA | Landcruiser KDJ125 | 3.0 TD (2003-2009) | 2003-2009 | Rear | Brake Pads: DB1200 | Disc Diameter [mm]: 312 |
| TOYOTA | Landcruiser KDJ90 | 3.0 TD (2000-2003) | 2000-2003 | Rear | Brake Pads: DB1200 | Disc Diameter [mm]: 312 |
| TOYOTA | Landcruiser KDJ95 | 3.0 TD (2000-2003) | 2000-2003 | Rear | Brake Pads: DB1200 | Disc Diameter [mm]: 312 |
| TOYOTA | Landcruiser KZJ90 | 3.0 TD (1996-2001) | 1996-2001 | Rear | Brake Pads: DB1200 | Disc Diameter [mm]: 312 |
| TOYOTA | Landcruiser KZJ95 | 3.0 TD (1996-2001) | 1996-2001 | Rear | Brake Pads: DB1200 | Disc Diameter [mm]: 312 |
| TOYOTA | Landcruiser RZJ90 | 2.7 (1997-2002) | 1997-2002 | Rear | Brake Pads: DB1200 | Disc Diameter [mm]: 312 |
| TOYOTA | Landcruiser RZJ95 | 2.7 (1997-2002) | 1997-2002 | Rear | Brake Pads: DB1200 | Disc Diameter [mm]: 312 |
| TOYOTA | Landcruiser VZJ90 | 3.4 (1996-2002) | 1996-2002 | Rear | Brake Pads: DB1200 | Disc Diameter [mm]: 312 |
| TOYOTA | Landcruiser VZJ95 | 3.4 (1996-2003) | 1996-2003 | Rear | Brake Pads: DB1200 | Disc Diameter [mm]: 312 |
