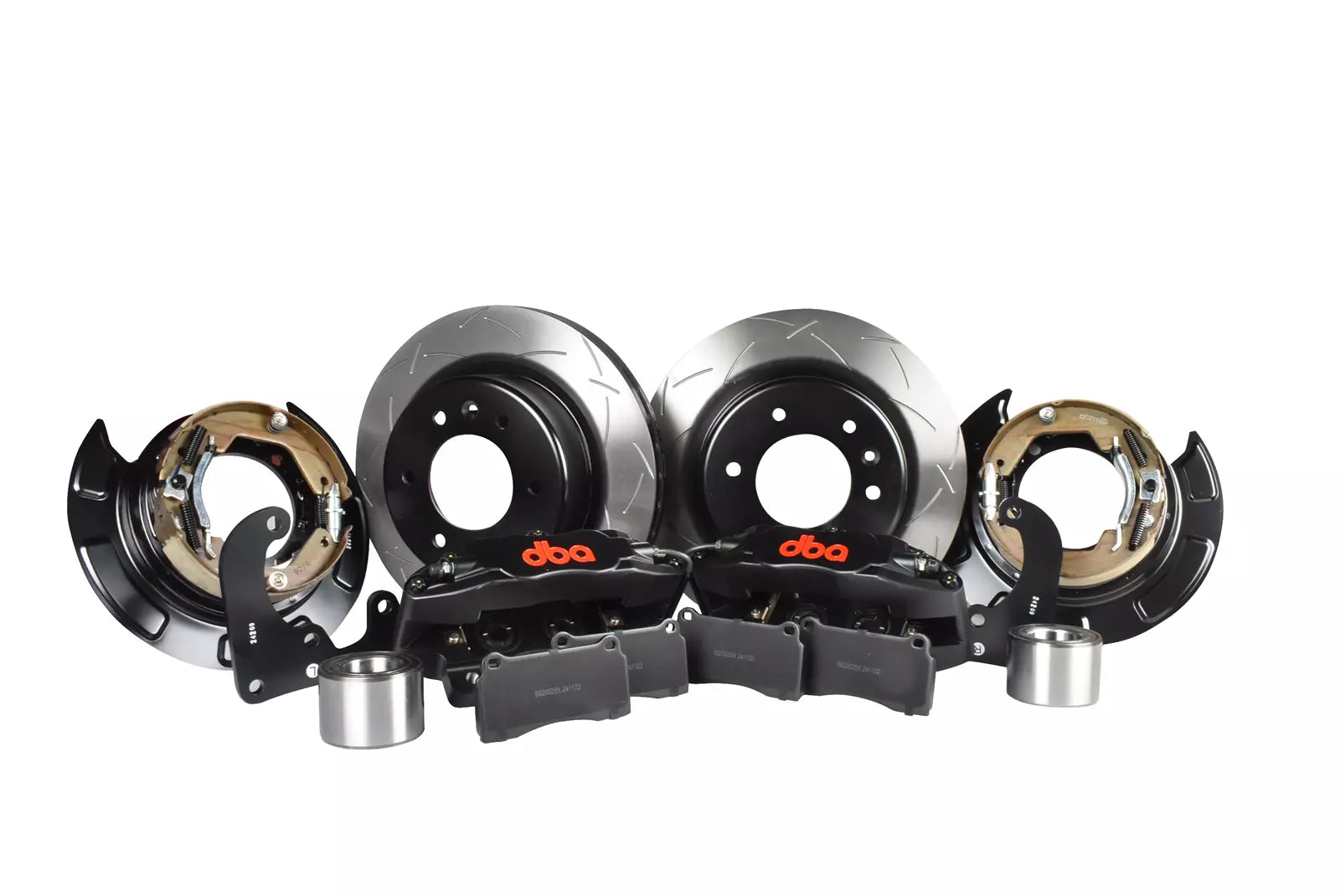

DBADC1012

Feature Description	Advantage	Benefit

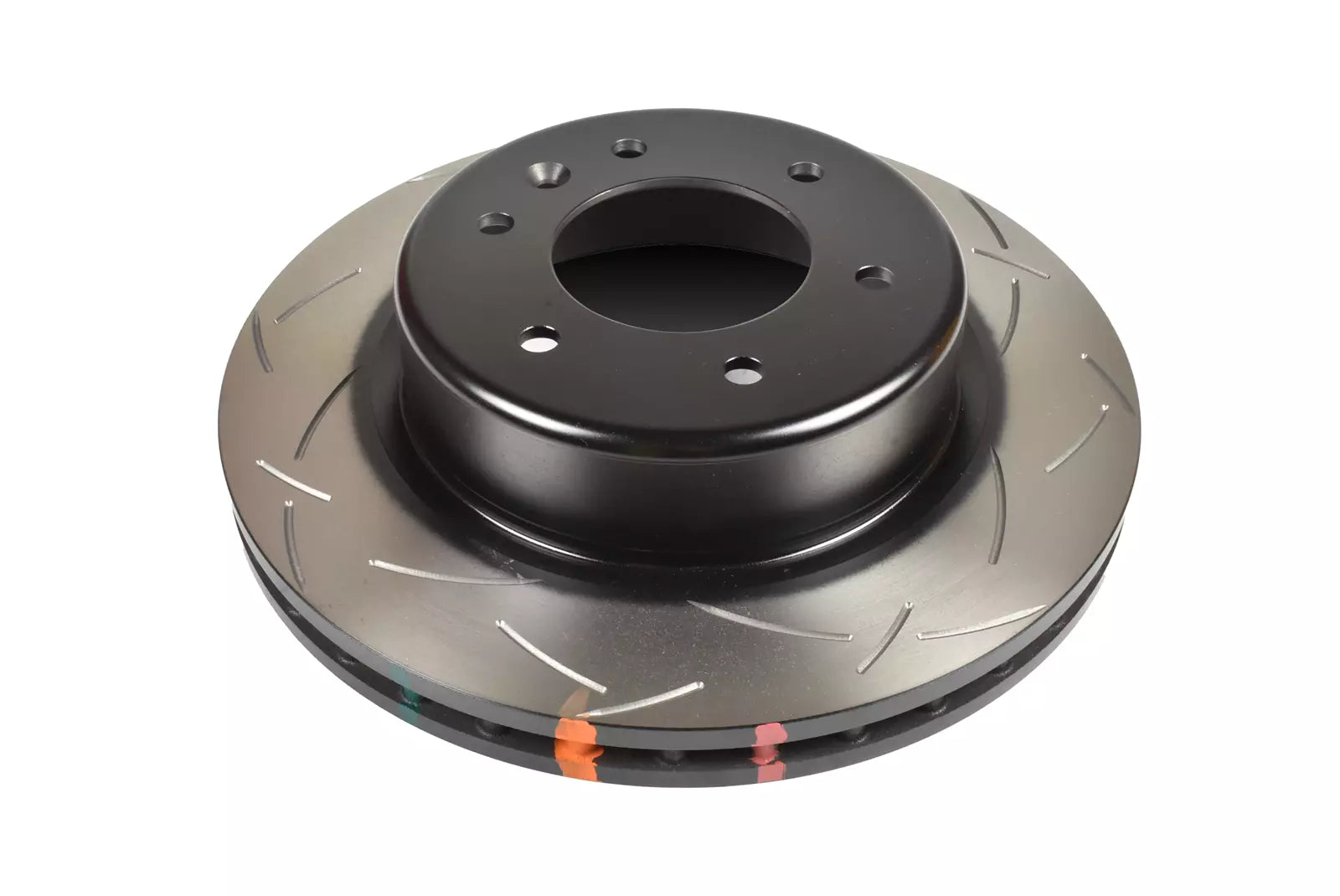

"T3 Slot 48 precision CNC machined slots"	Tri-Symmetrical curve slots dampens the vibration harmonics or noise	A quieter, responsive and smoother brake pedal feel
	Increased number of out-gassing exit points for brake pad friction gasses to escape through	Increases the consistency and effectiveness of every brake stop
	Universal slot design	Eliminates the need for left and right discs

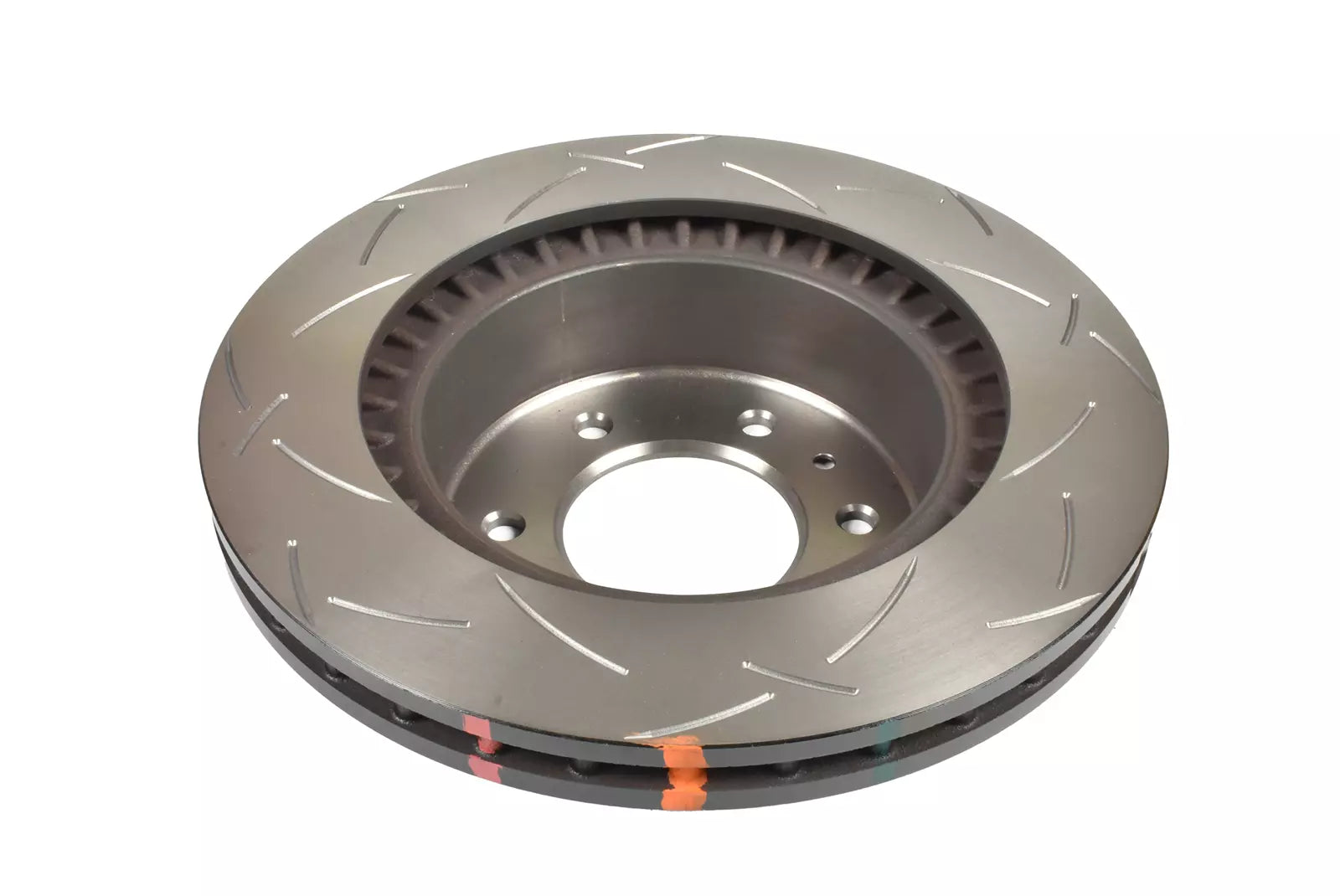

Kangaroo Paw – 144 diamond and tear drop pillar ventilation system	Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness
	Increased surface area resulting in greater heat dissipation	Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Thermal Stability Profiling	Special formulation designed to respond to DBA’s TSP process	Minimises warping and cracking and prolongs the service life of the rotor
Thermographic Temperature Monitoring	Heat paint markings change colour at specific temperature thresholds	Offers the driver a clear indication of peak braking temperatures
	When temperature thresholds are exceeded paint markings will permanently change colours	Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
Paint protection on non-friction areas	Reduces corrosion	Stops any unsightly rust formation
	Enhances appearance	Adds value to the product

Diameter [mm]	345
Disc Vent	Kangaroo Paw
Number of Holes	6+1
Inner Diameter [mm]	93.1
Minimum Thickness [mm]	28
Thickness [mm]	30
Height [mm]	83
Pitch Circle [mm]	139.7
Instruction	Instruction

Compatibility
FORD	Ranger	2.0 TD 130BHP 4WD (2019-2023)	2019-2023	Rear	Brake Pads: DB2074	Disc Diameter (mm):302	68e64f6c28a9923b02b9c7c3
FORD	Ranger	2.0 TD 170BHP 4WD (2019-2023)	2019-2023	Rear	Brake Pads: DB2074	Disc Diameter (mm):302	68e64f6c28a9923b02b9c7cb
FORD	Ranger	2.0 Twin TD 213BHP 4WD (2019-2023)	2019-2023	Rear	Brake Pads: DB2074	Disc Diameter (mm):302	68e64f6c28a9923b02b9c7d3
FORD	Ranger	2.2 TD 2WD (2011-2019)	2011-2019	Rear	Brake Pads: DB2074	Disc Diameter [mm]: 301.5	68e64f6c28a9923b02b9c7da
FORD	Ranger	2.2 TD 4WD (2011-2019)	2011-2019	Rear	Brake Pads: DB2074	Disc Diameter [mm]: 301.5	68e64f6c28a9923b02b9c7e0
FORD	Ranger	3.2 TD 4WD (2011-2019)	2011-2019	Rear	Brake Pads: DB2074	Disc Diameter [mm]: 301.5	68e64f6c28a9923b02b9c7e3
MAZDA	BT-50	3.2 TD (2011-2020)	2011-2020	Rear		Disc Diameter [mm]: 301,5	68e64f6c28a9923b02b9c7e9
