EP6062

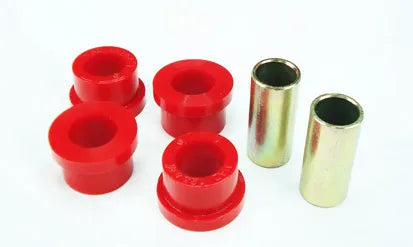

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	MAZ123
Outer Diameter [mm]	33
Inner Diameter [mm]	22.2
C/Tube Size	22.2x18.2x50 mm
Material	PU (Polyurethane)
Length [mm]	24.5
Flange Thickness [mm]	7

Compatibility
Mazda	1200, 1300 & R100	1200, 1300 & R100	1200, 1300 & R100 | 1968-1977	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (2 PKT)
Mazda	Capella & Rx2	Capella & Rx2	Capella & Rx2 | 1970-1974	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (2 PKT)
Mazda	Capella & Rx2	Capella & Rx2	Capella & Rx2 | 1974-1975	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (2 PKT)
Mazda	Capella & Rx2	Capella & Rx2	Capella & Rx2 | 1975-1978	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (2 PKT)
