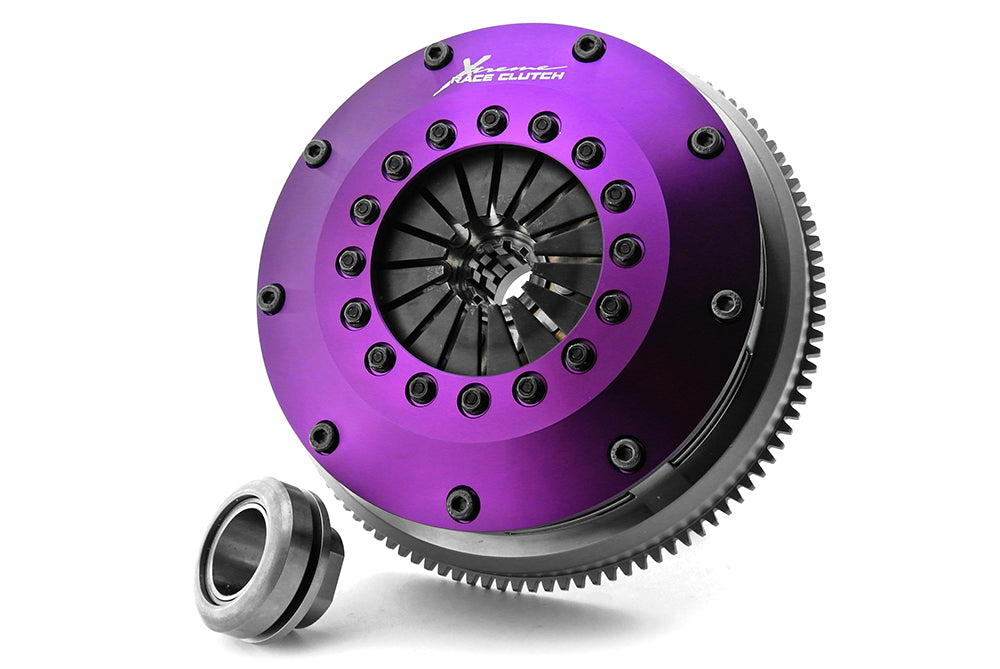

Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
| Clutch Disc Diameter (mm) | 200 |
| Clutch Disc Spline Count | 10 |
| Clutch Disc Spline Diameter (mm) | 35 |
| Flywheel Step (mm) | +2.2 |
| Torque (Nm) | 1200 |
| Stage | 5 |
| Usage | Motorsport |
| Design | 200mm Twin Plate Solid Ceramic – engineered for high-power track vehicles. Provides exceptional torque and heat resistance with direct, competition-style engagement. |
| Tech Bulletins | TSB-269 TSB-PEDAL |
| Kit Includes | Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Spigot Bearing, Bolts, Alignment Tool |
| Flywheel | Single Mass Flywheel |
| Compatibility | ||||||||
|---|---|---|---|---|---|---|---|---|
| BMW | 3-Series | E46 | M3 | 2000.07-2006.05 | S54 B32 (326S4) 3246 Petrol 252 kW 343 BHP (2000.07 - 2006.05) | Suits both Manual & AMT gearbox. | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E46 | M3 CSL | 2003.05-2003.12 | S54 B32 (326S4) 3246 Petrol 265 kW 360 BHP (2003.05 - 2003.12) | Suits both Manual & AMT gearbox. | 1200 | Motorsport | Single Mass Flywheel |
