Xtreme Motorsport 200mm twin plate

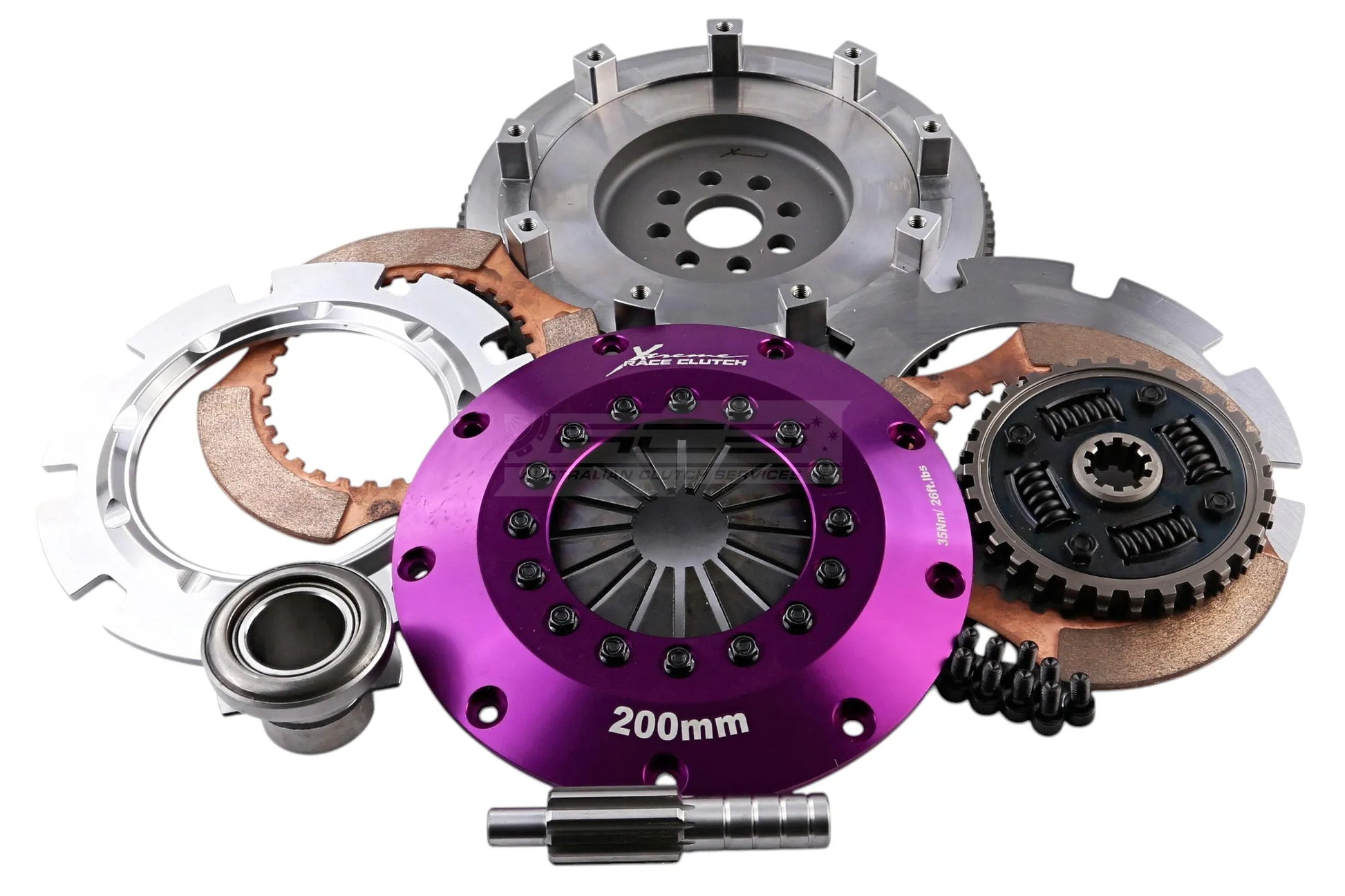

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
| Clutch Disc Diameter (mm) | 200 |
| Clutch Disc Spline Count | 10 |
| Clutch Disc Spline Diameter (mm) | 29 |
| Flywheel Step (mm) | +2.2 |
| Torque (Nm) | 1200 |
| Stage | 5 |
| Usage | Motorsport |
| Design | 200mm Twin Plate Sprung Ceramic – engineered for high-performance track use. Combines excellent torque and heat resistance with smoother engagement and improved drivability. |
| Tech Bulletins | TSB-269 TSB-200-2-X-1 |
| Kit Includes | Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Bolts, Alignment Tool |
| Flywheel | Single Mass Flywheel |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| BMW | 3-Series | E30 | 323i | 1982.09-1985.12 | M20 B23 (236EB) 2316 Petrol 102 kW 139 BHP (1982.09 - 1985.12) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E30 | 323i | 1983.09-1986.09 | M20 B23 (236EC), M20 B23 (236EW) 2316 Petrol 110 kW 150 BHP (1983.09 - 1986.09) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E30 | 320is | 1988.05-1990.12 | S14 B20 (204EA) 1990 Petrol 141 kW 192 BHP (1988.05 - 1990.12) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E30 | M3 | 1986.07-1991.06 | S14 B23 (234EA), S14 B23 (234S1), S14 B23 (234S2) 2302 Petrol 143 kW 195 BHP (1986.07 - 1991.06) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E30 | M3 | 1987.02-1989.05 | S14 B23 (234EA), S14 B23 (234S2) 2302 Petrol 147 kW 200 BHP (1987.02 - 1989.05) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E30 | M3 | 1986.01-1990.10 | S14 B23 (234EA), S14 B23 (234S2) 2302 Petrol 158 kW 215 BHP (1986.01 - 1990.10) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E30 | M3 EVO I 2.3 | 1988.10-1990.10 | S14 B23 (234EA) 2302 Petrol 162 kW 220 BHP (1988.10 - 1990.10) | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E30 | M3 EVO II 2.5 | 1990.01-1992.01 | S14 B25 (254S1) 2467 Petrol 175 kW 238 BHP (1990.01 - 1992.01) | 1200 | Motorsport | Single Mass Flywheel |
