KBM24596-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 722Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	240
Clutch Disc Spline Count	10
Clutch Disc Spline Diameter (mm)	35
Flywheel Step (mm)	-3,8
Torque (Nm)	700
Clamp Force
Clamp Force Increase	30%
Stage	Stage 2
Usage	Track Use
Design	Single Plate Sprung Ceramic Disc – designed for high-performance or track-oriented vehicles. Provides increased heat resistance and torque capacity while maintaining some drivability thanks to the sprung hub design.
Tech Bulletins	TSB-174  TSB-269  TSB-SMF02  TSB-TB02

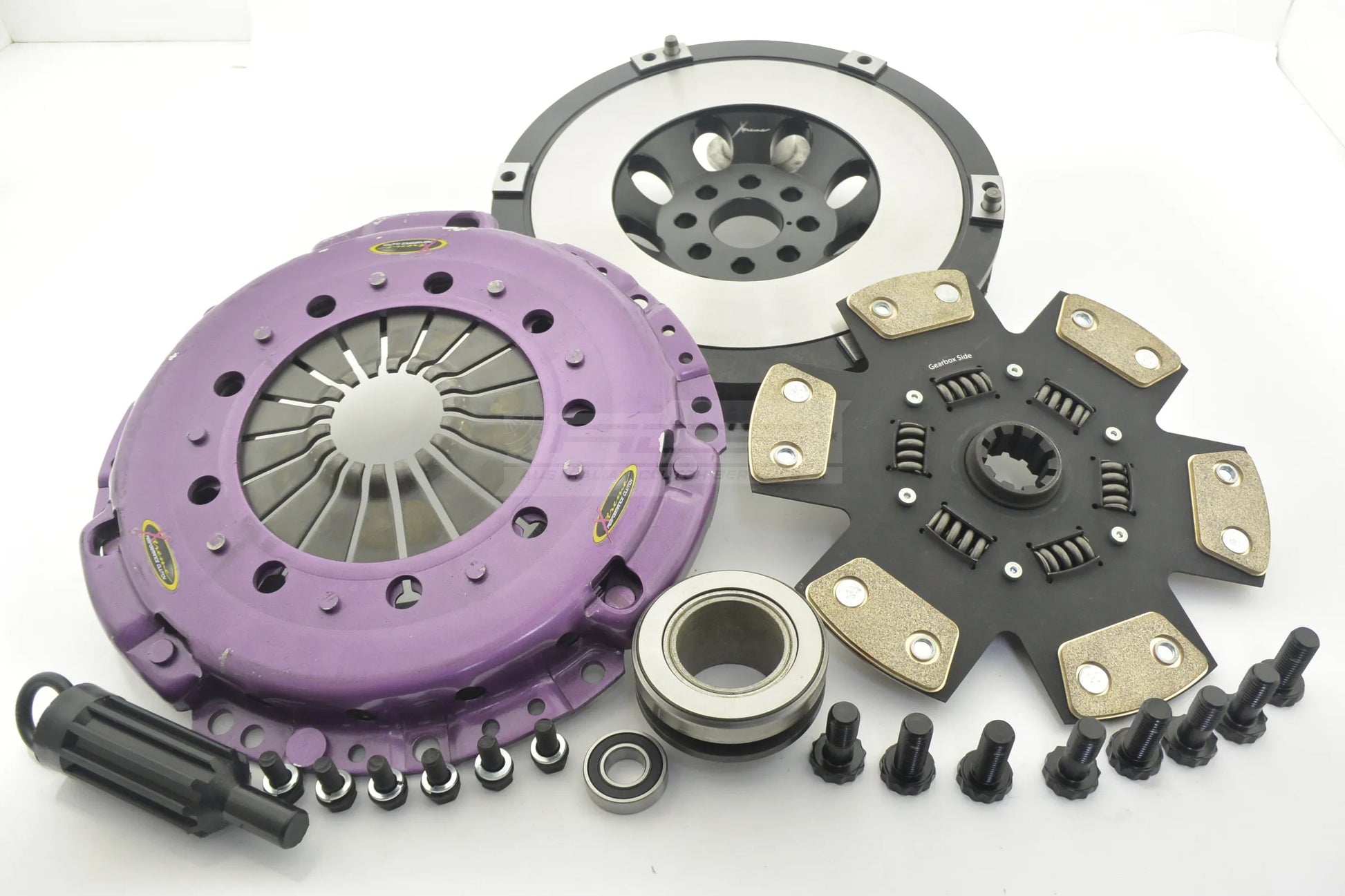

Kit Includes	Pressure Plate, Clutch Disc, Release Bearing, Spigot Bearing, Alignment Tool, Bolts, Flywheel
Flywheel	Conversion to Single Mass Flywheel

Compatibility
BMW	3-Series	E46 | M3	2000.07-2006.05	S54 B32 (326S4) 3246 Petrol 252 kW 343 BHP (2000.07 - 2006.05)	Suits both Manual & AMT gearbox.	700	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	E46 | M3 CSL	2003.05-2003.12	S54 B32 (326S4) 3246 Petrol 265 kW 360 BHP (2003.05 - 2003.12)	Suits both Manual & AMT gearbox.	700	Track Use	Conversion to Single Mass Flywheel
