KCA434

Whiteline Anti Dive Kits are primarily designed to improve traction, cornering grip and minimise toe change under power. Increasing static caster to both front wheels. The special low compliance bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the firmer bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance.

Important Note	Performance Alignment - adds +0.5deg caster + anti-dive
Install Guide	Installation Instructions

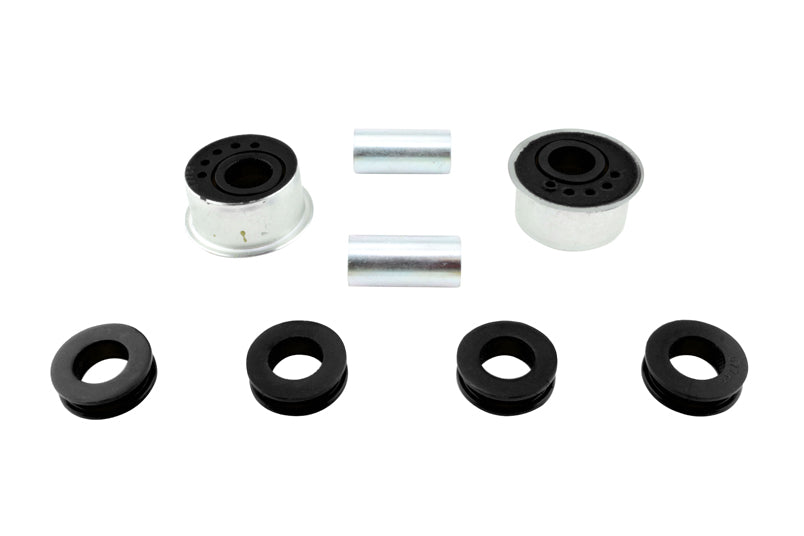

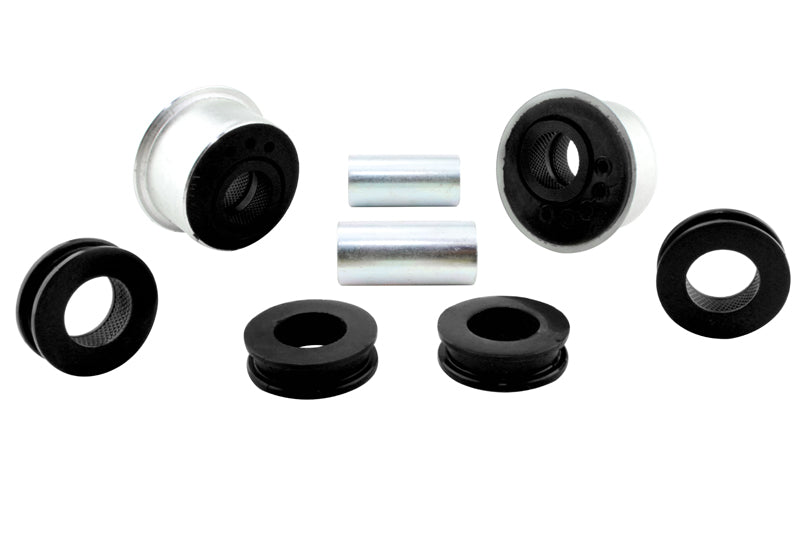

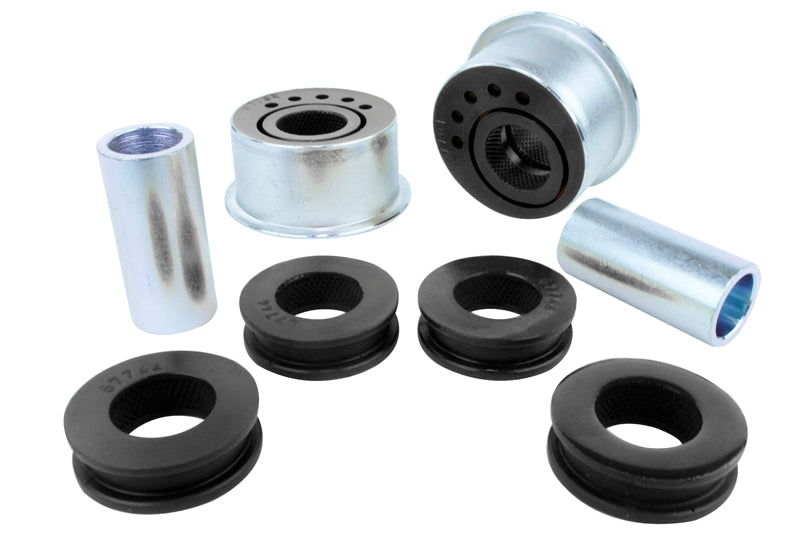

Kit Contents	2 Shell Bushings, 4 Bushings, 2 Tubes
Position	Front Axle

Compatibility

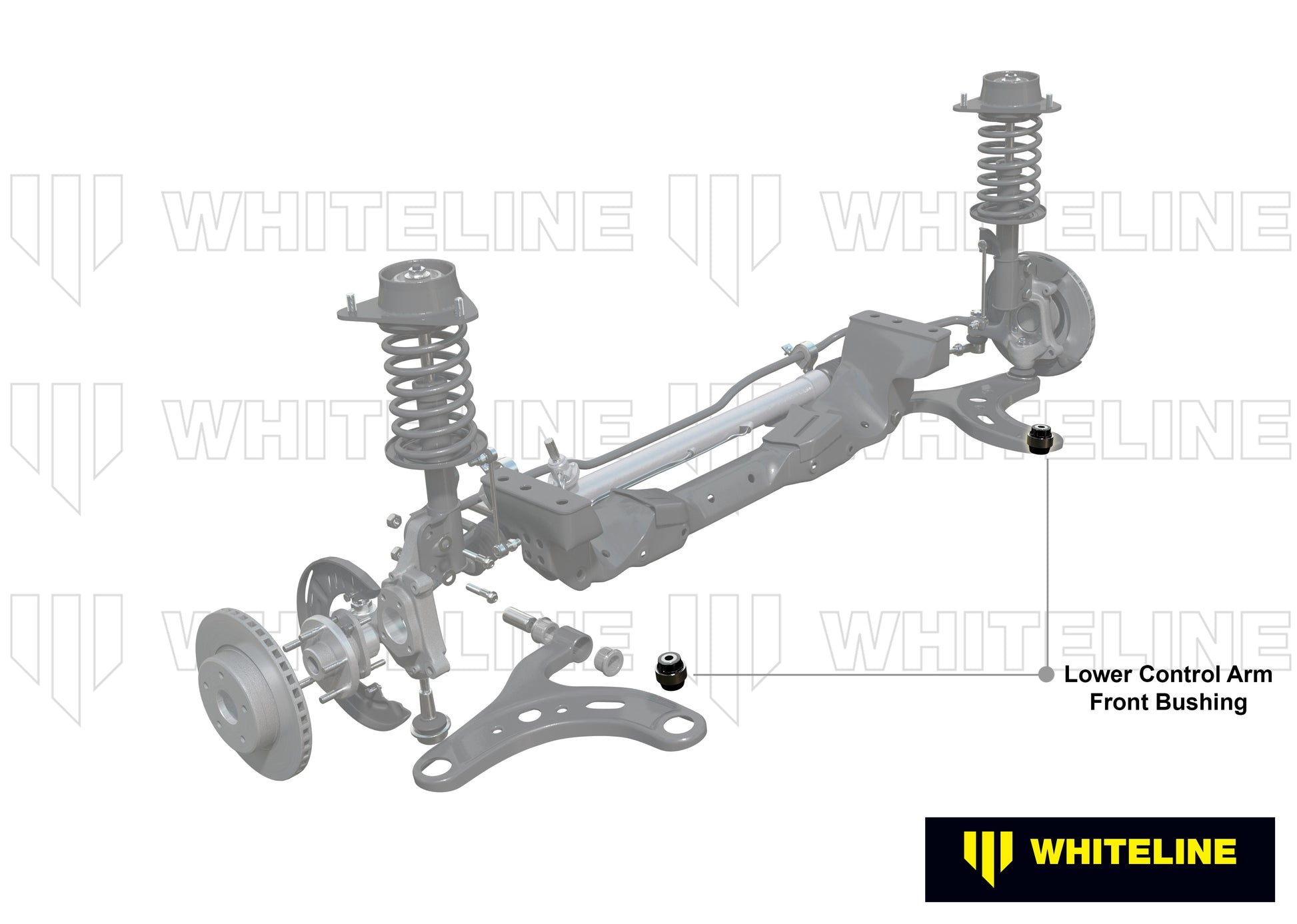

SUBARU	BRZ	2012-2021 | ZC6	Front Axle	BUSHINGS AND OTHER	Control Arm Lower - Inner Front Bushing Kit-Double Offset, Front Axle
SUBARU	BRZ	2021-ON | ZD8	Front Axle	BUSHINGS AND OTHER	Control Arm Lower - Inner Front Bushing Kit-Double Offset, Front Axle
TOYOTA	86	2012-2021 | ZN6	Front Axle	BUSHINGS AND OTHER	Control Arm Lower - Inner Front Bushing Kit-Double Offset, Front Axle
TOYOTA	GR 86	2022-ON | ZN8	Front Axle	BUSHINGS AND OTHER	Control Arm Lower - Inner Front Bushing Kit-Double Offset, Front Axle
