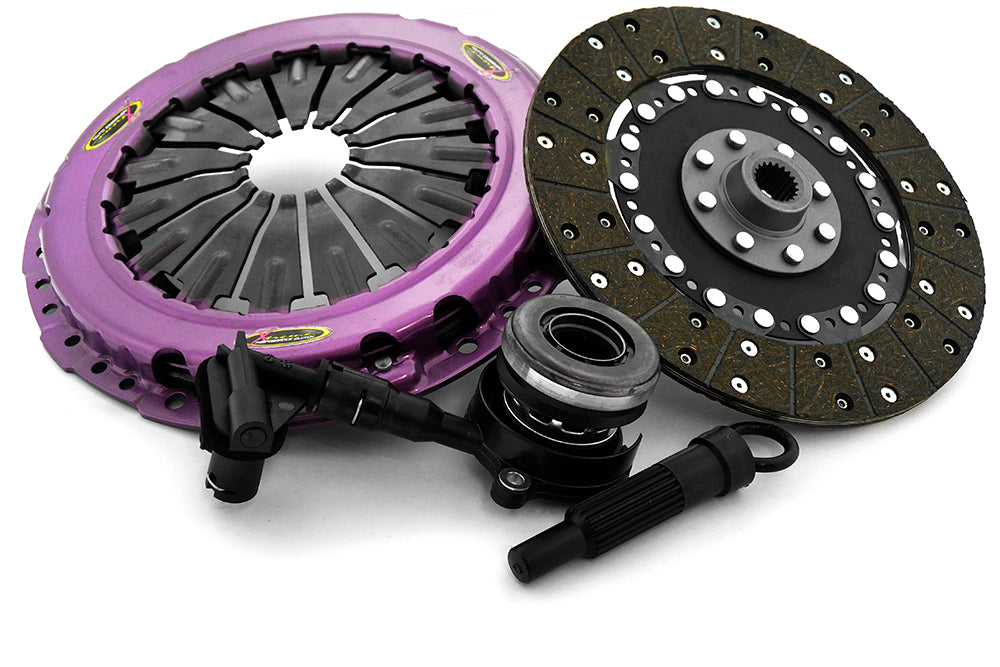

KFD22423-1G

The Stage 1 clutch kit uses an upgraded pressure plate with increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle.

They use an organic friction disc to retain drive-ability similar to standard.

Clutch Disc Diameter (mm)	230
Clutch Disc Spline Count	20
Clutch Disc Spline Diameter (mm)	22.6
Torque (Nm)	450
Flywheel Step
Design	Single Plate
Stage	Stage 1
Tech Bulletins
Clamp Load
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Ford	Fiesta	1.6 ST	2012-2017	JTJA, JTJB 1596 Petrol 134 kW 182 BHP (2013.03 -)
