ACS
KFD23648-2G
KFD23648-2G
Regular price
€2.514,95 EUR
Regular price
Sale price
€2.514,95 EUR
Quantity
Couldn't load pickup availability

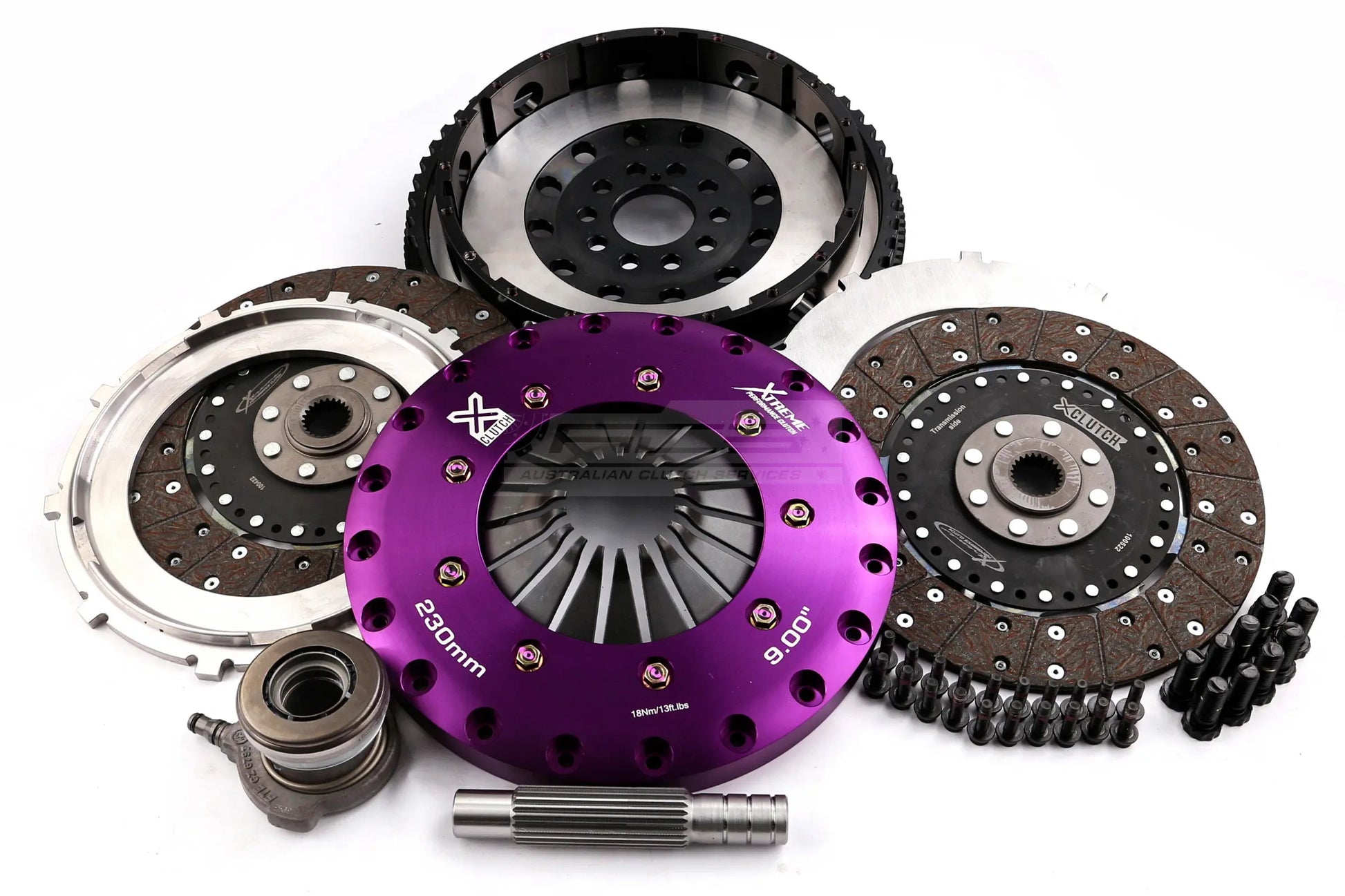

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application. The Xtreme 230mm Twin Plate Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles. Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Clutch Disc Diameter (mm) | 230 |
| Clutch Disc Spline Count | 23 |
| Clutch Disc Spline Diameter (mm) | 26 |
| Torque (Nm) | 1200 |
| Flywheel Step | +3.8mm |
| Design | Twin Plate |
| Stage | Multiplate - street use only |
| Tech Bulletins | TSB-166TSB-167 |
| Clamp Load | 1300kg |
| Recommended for | High horsepower street driven vehicles |
| Ring Gear Tooth count | |
| Additional infotmation |
| Compatibility | ||||
|---|---|---|---|---|
| Ford | Mondeo | 2.5 | 2007.03-2012.12 | HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2012.12) |
| Ford | Mondeo | 2.5 | 2007.03-2015.01 | HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2015.01) |
| Ford | Focus | 2.5 RS | 2009-2012 | JZDA 2521 Petrol 224 kW 305 BHP (2009 - 2012) |
| Ford | S-MAX | 2.5 ST | 2006.05-2014.12 | HUWA 2521 Petrol 162 kW 220 BHP (2006.05 - 2014.12) |
| Ford | Focus | 2.5 ST | 2005.10-2012.09 | HYDA 2522 Petrol 166 kW 225 BHP (2005.10 - 2012.09) |
| Volvo | S40 | T5 | 2004.01-2007.12 | B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.01 - 2007.12) |
| Volvo | V50 (545) | T5 | 2004.04-2007.12 | B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12) |
| Volvo | C30 (533) | T5 | 2006.10-2012.12 | B 5254 T3 2521 Petrol 162 kW 220 BHP (2006.10 - 2012.12) |
| Volvo | C30 (533) | T5 | 2007.03-2012.12 | B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2012.12) |
| Volvo | C30 (533) | T5 | 2007.10-2013.12 | B 5254 T7 2521 Petrol 184 kW 250 BHP (2007.10 - 2013.12) |
| Volvo | S40 | T5 AWD | 2004.04-2007.12 | B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12) |
| Volvo | V50 (545) | T5 AWD | 2004.04-2007.12 | B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12) |
| Volvo | V50 (545) | T5 AWD | 2007.03-2010.12 | B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2010.12) |
| Ford | Mondeo | XR5 Turbo | 2007.03-2015.01 | HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2015.01) |
