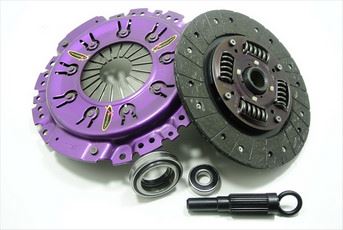

KGM23003-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

• Torque capacity 310Nm

• Clamp load 650kg 30% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	225
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25.4
Torque (Nm)	310
Flywheel Step	-20.0mm/.787""
Design	Single Plate
Stage	Stage 1
Tech Bulletins
Clamp Load	650Kg (30% inc.)
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Holden	H Series	2.0 Turbo	1985.04-1987.12	4ZC1-T 1994 Petrol 110 kW 150 BHP (1985.04 - 1987.12)
Isuzu	Campo	2.5 D (KB27)	1983.01-1990.12	4JA1 2499 Diesel 55 kW 75 BHP (1983.01 - 1990.12)
Holden	H Series	2.5 D (TFR54)	1988.02-1992.12	4JA1 2499 Diesel 57 kW 78 BHP (1988.02 - 1992.12)
Isuzu	Campo	2.5 D 4WD (KBD47)	1983.01-1990.12	4JA1 2499 Diesel 55 kW 75 BHP (1983.01 - 1990.12)
Holden	H Series	2.5 D 4x4 (TFS54)	1988.02-1992.12	4JA1 2499 Diesel 57 kW 78 BHP (1988.02 - 1992.12)
