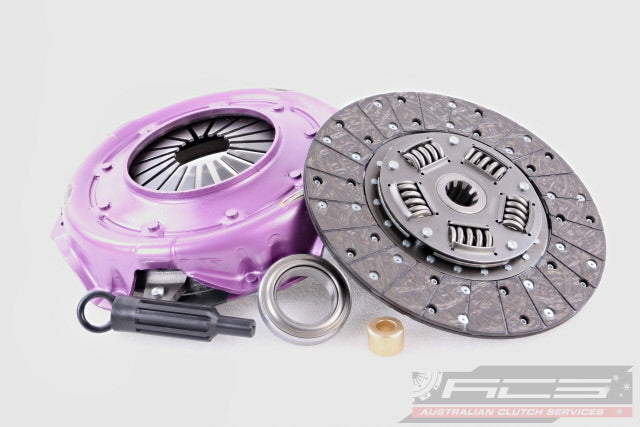

KGM26004-1AX

The stage 1 clutch kit uses an upgraded pressure plate with extra increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 40-120% depending on the demands of the individual vehicle.

They use an organic friction disc to retain drive-ability similar to standard.

Clutch Disc Diameter (mm)	255
Clutch Disc Spline Count	10
Clutch Disc Spline Diameter (mm)	28.6
Torque (Nm)	460
Flywheel Step
Design	Single Plate
Stage
Tech Bulletins
Clamp Load
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Holden	H Series	4.2	1977.10-1978.05	GMH 253 (Red) 4142 Petrol 120 kW 163 BHP (1977.10 - 1978.05)
Holden	H Series	4.2 V8	1980.04-1985.12	GMH 253 (Blue) 4142 Petrol 100 kW 136 BHP (1980.04 - 1985.12)
Holden	H Series	4.2 V8	1980.04-1985.12	GMH 253 (Blue) 4142 Petrol 115 kW 156 BHP (1980.04 - 1985.12)
Holden	H Series	5.0	1977.10-1980.04	50H 5044 Petrol 179 kW 243 BHP (1977.10 - 1980.04)
Holden	H Series	HZ | 4.1	1977.10-1980.04	41X 4142 Petrol 120 kW 163 BHP (1977.10 - 1980.04)
Holden	H Series	HZ | 4.2	1977.10-1980.04	GMH 253 (Red) 4142 Petrol 120 kW 163 BHP (1977.10 - 1980.04)
Holden	H Series	HZ | 5.0	1977.10-1980.03	50HC 5044 Petrol 161 kW 219 BHP (1977.10 - 1980.03)
Holden	H Series	VB | 5.0 V8	1978.10-1980.12	50H 5044 Petrol 125 kW 170 BHP (1978.10 - 1980.12)
Holden	H Series	VB | 5.0 V8	1978.10-1980.03	50HL 5044 Petrol 114 kW 155 BHP (1978.10 - 1980.03)
Holden	H Series	VC | 5.0	1980.04-1981.09	GMH 308 (Blue) 5044 Petrol 115 kW 156 BHP (1980.04 - 1981.09)
Holden	H Series	VC | 5.0 V8	1980.04-1981.09	50HL 5044 Petrol 114 kW 155 BHP (1980.04 - 1981.09)
Holden	H Series	VC | 5.0 V8	1980.04-1981.09	GMH 308 (Blue) 5044 Petrol 126 kW 171 BHP (1980.04 - 1981.09)
Holden	H Series	VH | 5.0 V8	1981.09-1984.03	50H 5044 Petrol 126 kW 171 BHP (1981.09 - 1984.03)
Holden	H Series	VH | 5.0 V8	1981.09-1984.03	GMH 308 (Blue) 5044 Petrol 117 kW 159 BHP (1981.09 - 1984.03)
Holden	Commodore	VK | 4.9 V8	1984.03-1985.05	VU 4987 Petrol 122 kW 166 BHP (1984.03 - 1985.05)
Holden	H Series	VK | 5.0 V8	1985.01-1985.12	4987 Petrol 122 kW 166 BHP (1985.01 - 1985.12)
Holden	H Series	VK | 5.0 V8	1985.06-1986.03	4987 Petrol 122 kW 166 BHP (1985.06 - 1986.03)
Holden	H Series	VK | 5.0 V8	1985.01-1985.12	50H 5044 Petrol 117 kW 159 BHP (1985.01 - 1985.12)
Holden	H Series	VK | 5.0 V8	1984.03-1985.05	50H 5044 Petrol 126 kW 171 BHP (1984.03 - 1985.05)
Holden	H Series	VK | 5.0 V8	1984.03-1986.03	GMH 308 (Black) 5044 Petrol 117 kW 159 BHP (1984.03 - 1986.03)
Holden	H Series	VL | 4.9 V8	1986.06-1988.01	GMH 308 4987 Petrol 122 kW 166 BHP (1986.06 - 1988.01)
Holden	H Series	VL | 5.0 V8	1986.03-1988.08	GMH 304 (Black) 4987 Petrol 122 kW 166 BHP (1986.03 - 1988.08)
Holden	H Series	VL | 5.0 V8	1984.03-1985.05	GMH 308 4987 Petrol 117 kW 159 BHP (1984.03 - 1985.05)
