ACS

KGM27631-2A

KGM27631-2A

Regular price €3.108,82 EUR
Regular price Sale price €3.108,82 EUR
Sale Sold out
Quantity

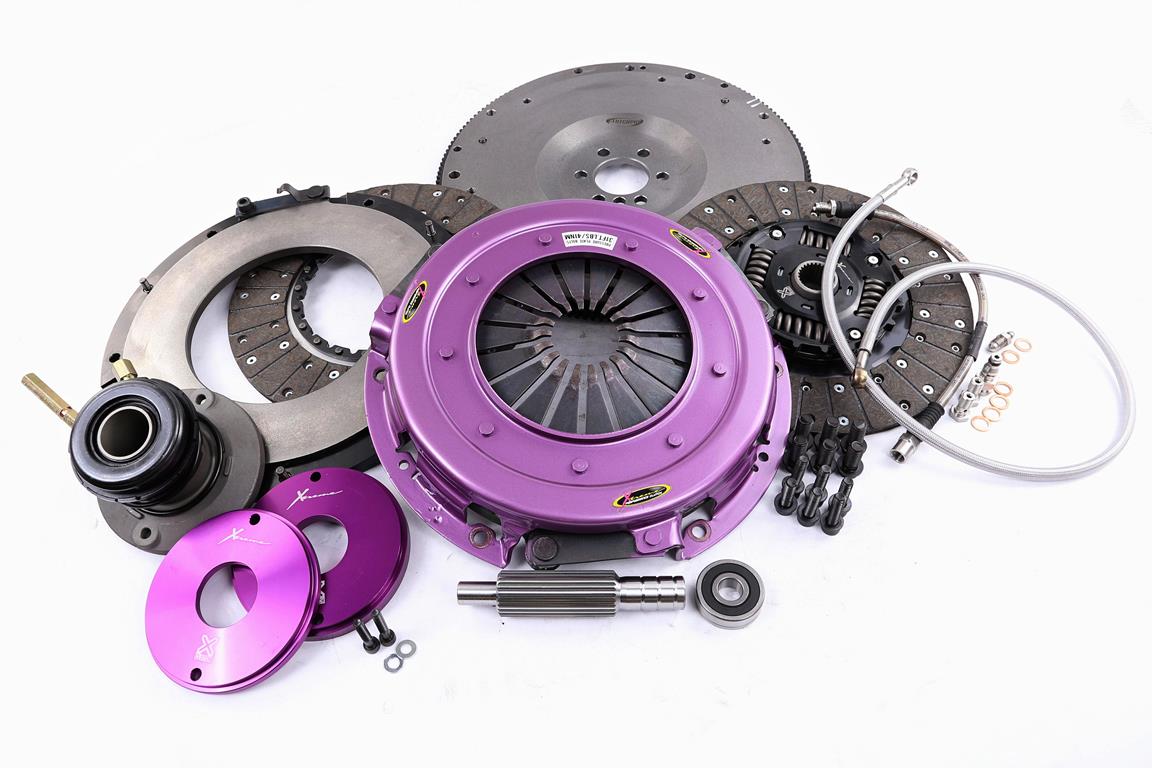

Xtreme Clutch 270mm twin plate kit
The Xtreme Clutch 270mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application.

The Xtreme 270mm Twin Plate Sprung Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles that require reduced shock loading on the transmission in comparison to conventional rigid style discs. The 270mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 270mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 270mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles.

Product Features:

  • Torque capacity 1000Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Clutch Disc Diameter (mm) 270
Clutch Disc Spline Count 26
Clutch Disc Spline Diameter (mm) 29
Torque (Nm) 1000
Flywheel Step
Design Twin Plate
Stage Multiplate - street use only
Tech Bulletins
Clamp Load
Recommended for High horsepower street driven vehicles
Ring Gear Tooth count
Additional infotmation
Compatibility
Vauxhall VXR8 Maloo 6.2 2008.04-2011.08 LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2011.08)
Holden H Series VE | 6.0 Flex 2010.09-2013.04 L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2010.09 - 2013.04)
Holden H Series VE | 6.0i V8 2006.07-2013.05 L76, L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2006.07 - 2013.05)
Holden H Series VE | 6.0i V8 2006.07-2013.05 L77(364CUV8), L98(364CUV8) 5967 Petrol 270 kW 367 BHP (2006.07 - 2013.05)
Holden H Series VE | 6.0i V8 2006.08-2013.05 L77(364CUV8), L98(364CUV8) 5967 Petrol 270 kW 367 BHP (2006.08 - 2013.05)
HSV Senator VE | 6.0i V8 2006.08-2013.04 LS2(364CUV8) 5965 Petrol 297 kW 404 BHP (2006.08 - 2013.04)
HSV GTS VE | 6.0i V8 2006.08-2008.03 LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2006.08 - 2008.03)
HSV Senator VE | 6.0i V8 2006.08-2008.03 LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2006.08 - 2008.03)
HSV Clubsport VE | 6.0i V8 2006.08-2008.06 LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2006.08 - 2008.06)
HSV Maloo VE | 6.0i V8 2007.10-2008.03 LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2007.10 - 2008.03)
HSV GTS VE | 6.2i V8 2008.04-2010.10 LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2010.10)
HSV Clubsport VE | 6.2i V8 2008.04-2013.05 LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV Maloo VE | 6.2i V8 2008.04-2013.05 LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV Senator VE | 6.2i V8 2008.04-2013.05 LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV GTS VE | 6.2i V8 2010.10-2013.05 LS3(376CUV8) 6162 Petrol 325 kW 442 BHP (2010.10 - 2013.05)
HSV W427 VE | 7.0i V8 2008.07-2013.05 LS7 7009 Petrol 375 kW 510 BHP (2008.07 - 2013.05)
