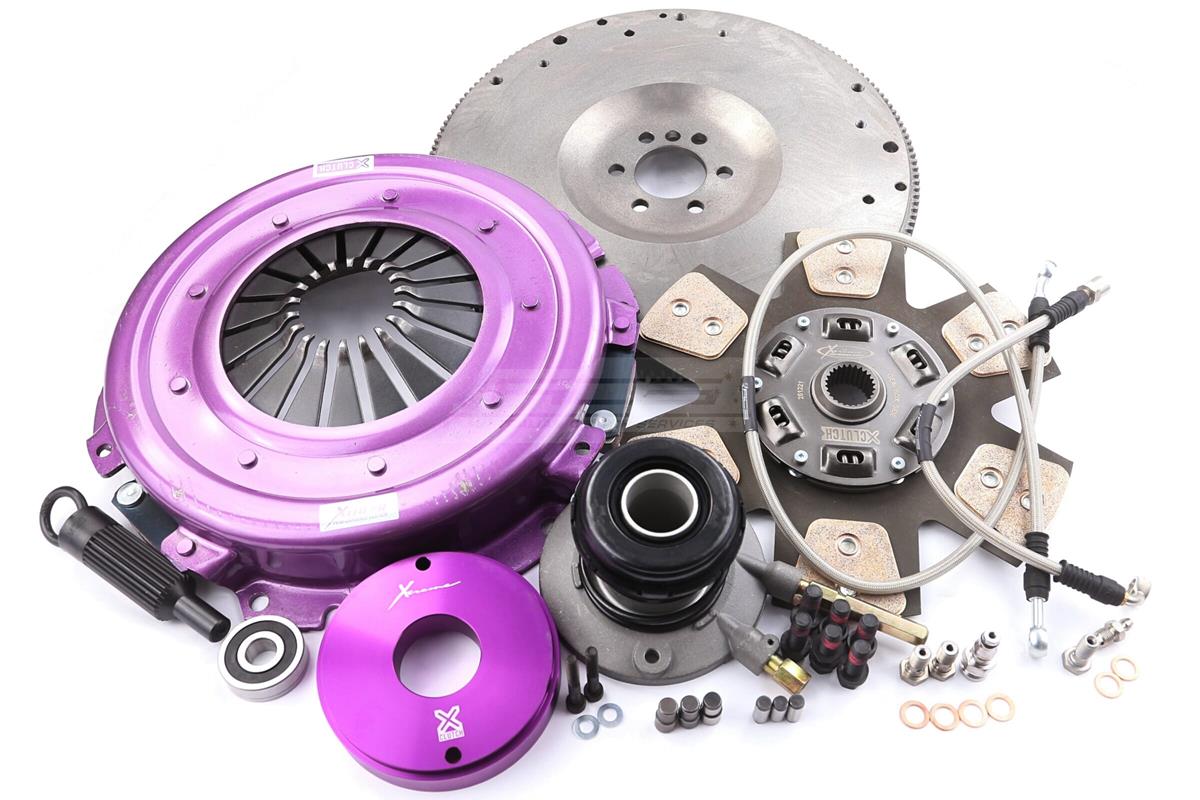

KGM28692-1R

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 1370Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	280
Clutch Disc Spline Count	26
Clutch Disc Spline Diameter (mm)	29
Torque (Nm)	1370
Flywheel Step	0
Design	Single Plate
Stage	Stage 2R
Tech Bulletins
Clamp Load
Recommended for	Race Vehicles - Stage 2R
Ring Gear Tooth count
Additional infotmation

Compatibility
Vauxhall	VXR8 Maloo	6.2	2008.04-2011.08	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2011.08)
Holden	H Series	VE | 6.0 Flex	2010.09-2013.04	L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2010.09 - 2013.04)
Holden	H Series	VE | 6.0i V8	2006.07-2013.05	L76, L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2006.07 - 2013.05)
Holden	H Series	VE | 6.0i V8	2006.07-2013.05	L77(364CUV8), L98(364CUV8) 5967 Petrol 270 kW 367 BHP (2006.07 - 2013.05)
Holden	H Series	VE | 6.0i V8	2006.08-2013.05	L77(364CUV8), L98(364CUV8) 5967 Petrol 270 kW 367 BHP (2006.08 - 2013.05)
HSV	Senator	VE | 6.0i V8	2006.08-2013.04	LS2(364CUV8) 5965 Petrol 297 kW 404 BHP (2006.08 - 2013.04)
HSV	GTS	VE | 6.0i V8	2006.08-2008.03	LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2006.08 - 2008.03)
HSV	Senator	VE | 6.0i V8	2006.08-2008.03	LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2006.08 - 2008.03)
HSV	Clubsport	VE | 6.0i V8	2006.08-2008.06	LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2006.08 - 2008.06)
HSV	Maloo	VE | 6.0i V8	2007.10-2008.03	LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2007.10 - 2008.03)
HSV	GTS	VE | 6.2i V8	2008.04-2010.10	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2010.10)
HSV	Clubsport	VE | 6.2i V8	2008.04-2013.05	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV	Maloo	VE | 6.2i V8	2008.04-2013.05	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV	Senator	VE | 6.2i V8	2008.04-2013.05	LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV	W427	VE | 7.0i V8	2008.07-2013.05	LS7 7009 Petrol 375 kW 510 BHP (2008.07 - 2013.05)
