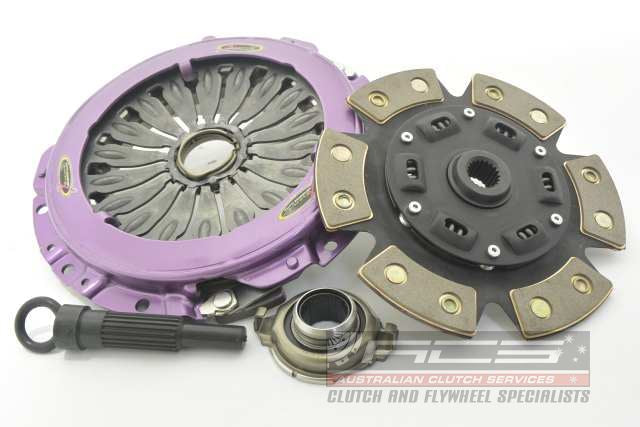

KHD22001-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 510Nm
• Clamp load 650kg 45% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	215
Clutch Disc Spline Count	20
Clutch Disc Spline Diameter (mm)	22.3
Torque (Nm)	510
Flywheel Step	0
Design	Single Plate
Stage	Stage 2
Tech Bulletins	TSB-HD01
Clamp Load	650Kg (45% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Hyundai	Matrix	1.5 CRDi	2001.10-2010.08	D3EA 1493 Diesel 60 kW 82 BHP (2001.10 - 2010.08)
Hyundai	Getz	1.5 CRDi	2003.03-2005.09	D3EA 1493 Diesel 60 kW 82 BHP (2003.03 - 2005.09)
Hyundai	Matrix	1.8	2001.06-2010.08	G4GB 1795 Petrol 90 kW 122 BHP (2001.06 - 2010.08)
Hyundai	Coupe	1.8 SX	1996.07-2002.04	G4GM 1795 Petrol 94 kW 128 BHP (1996.07 - 2002.04)
Hyundai	Coupe	2.0	2002.03-2009.08	G4GC-G 1975 Petrol 102 kW 139 BHP (2002.03 - 2009.08)
Hyundai	Coupe	2.0 16V	1996.08-2002.04	G4GF, G4DF 1975 Petrol 102 kW 139 BHP (1996.08 - 2002.04)
Hyundai	Accent	Gen. II | 1.5 CRDi	2002.04-2005.11	D3DA 1493 Diesel 60 kW 82 BHP (2002.04 - 2005.11)
Hyundai	Lantra	Gen. II | 1.8 16V	1995.11-2000.09	G4GM 1795 Petrol 94 kW 128 BHP (1995.11 - 2000.09)
Hyundai	Lantra	Gen. II | 2.0 16V	1996.08-2000.09	G4GF 1975 Petrol 102 kW 139 BHP (1996.08 - 2000.09)
Hyundai	Elantra	Gen. III | 1.8	2000.06-2006.07	G4BB, G4GB 1795 Petrol 97 kW 132 BHP (2000.06 - 2006.07)
Hyundai	Elantra	Gen. III | 2.0	2000.06-2006.07	G4GC 1975 Petrol 104 kW 141 BHP (2000.06 - 2006.07)
Hyundai	Elantra	Gen. III | 2.0	2003.10-2006.07	G4GC 1975 Petrol 105 kW 143 BHP (2003.10 - 2006.07)
