KHD22002-1C

Recommended for: Motorsport Applications

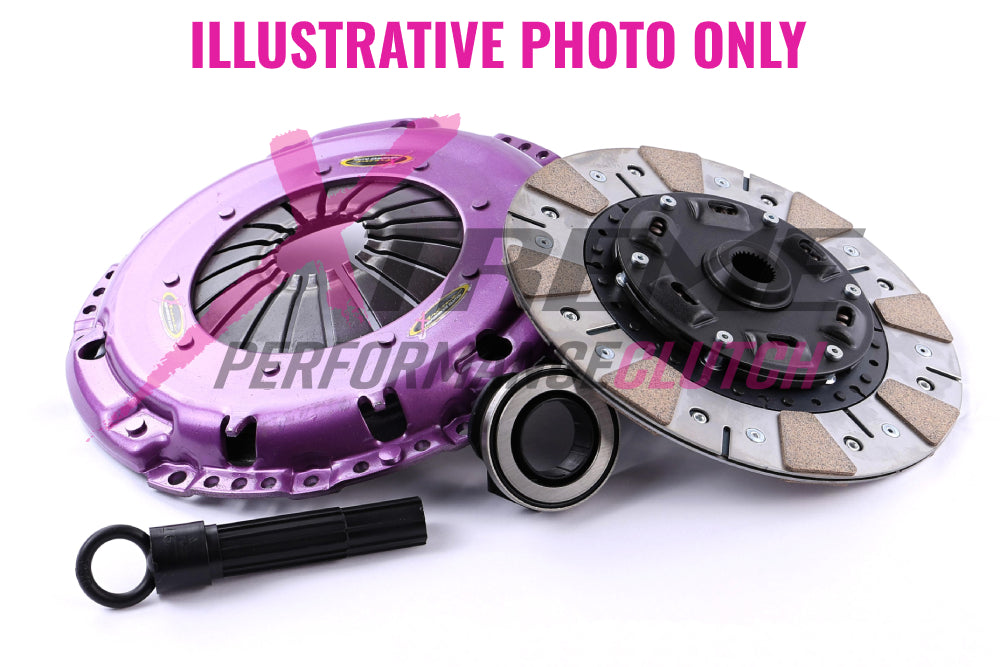

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 370Nm
• Clamp load 600Kg 30% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	215
Clutch Disc Spline Count	20
Clutch Disc Spline Diameter (mm)	22.4
Torque (Nm)	370
Flywheel Step	0
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	600Kg (30% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Hyundai	S Coupe	1.5 i Turbo	1991.04-1996.05	G4EK-TC 1495 Petrol 85 kW 116 BHP (1991.04 - 1996.05)
Proton	Satria	1.8 GTi	2000.08-2006.05	4 G 93 (DOHC) 1834 Petrol 103 kW 140 BHP (2000.08 - 2006.05)
Proton	Persona 300	318 16V GTI	1996.03-2000.07	4 G 93 (DOHC) 1834 Petrol 99 kW 135 BHP (1996.03 - 2000.07)
Hyundai	Lantra	Gen. I | 1.8 i.e. 16V	1990.10-1995.11	G4CN 1836 Petrol 93 kW 127 BHP (1990.10 - 1995.11)
Hyundai	Sonata	Gen. II | 1.8	1989.06-1991.03	G4CM 1796 Petrol 73 kW 99 BHP (1989.06 - 1991.03)
