ACS

KHN18522-1E

KHN18522-1E

€1.543,64 EUR
€1.543,64 EUR
Sale Sold out

-1E

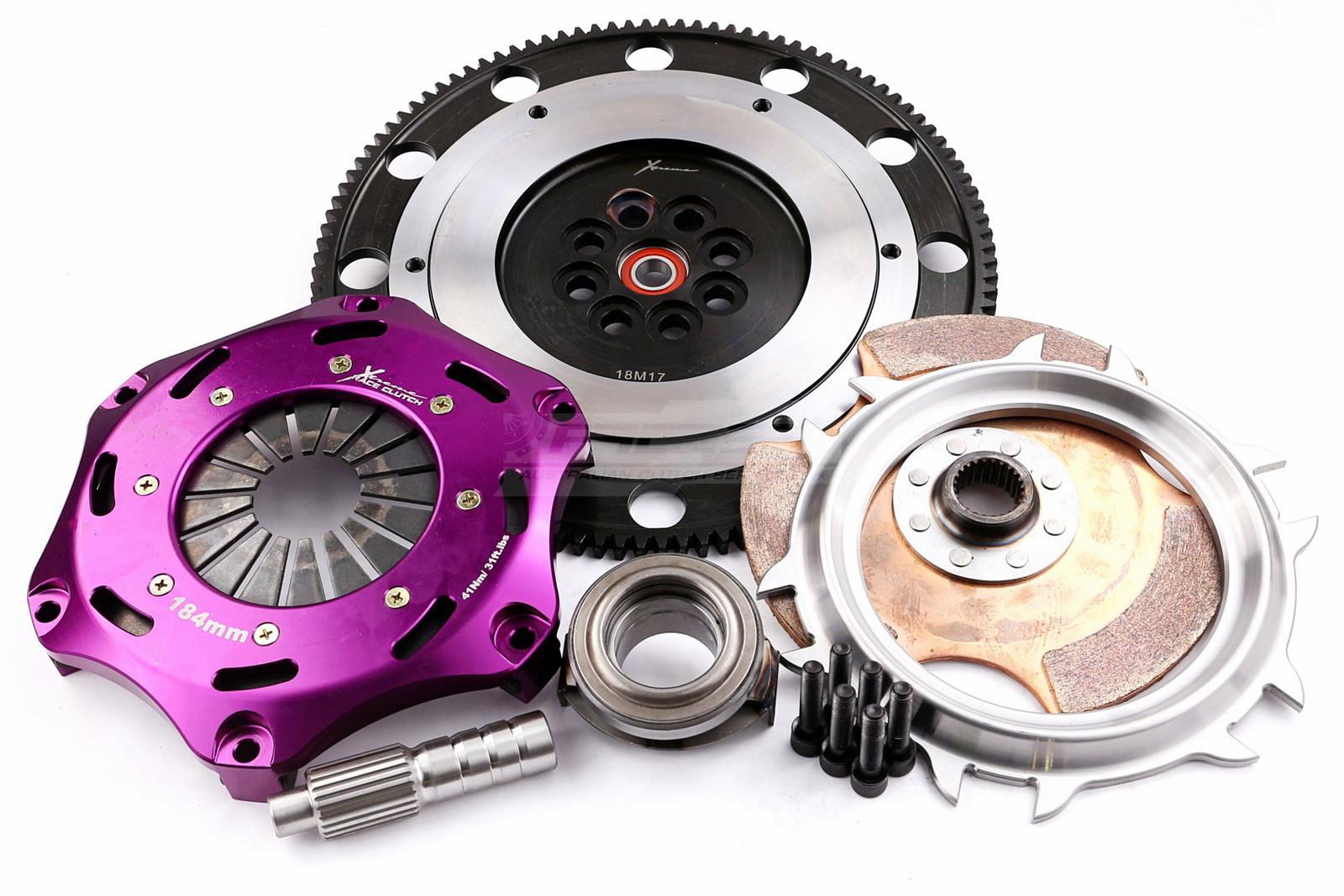

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.
  Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 535Nm (395ft.lbs) 610Nm (450ft.lbs)
Bearing Contact Diameter 44-52mm 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm 5mm
Assembly Mass (without flywheel) 3.10kg 3.10kg
Disc Set Static Mass 0.6kg
Friction Thickness New 6.35mm (0.250") 6.35mm (0.250")
Friction Thickness Worn 5.58mm (0.220") 5.58mm (0.220")

Product Features:

  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design
Clutch Disc Diameter (mm) 184
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 26
Torque (Nm) 610
Flywheel Step +2.5mm
Design Single Plate
Stage Track Use Only
Tech Bulletins TSB-185-2-X
Clamp Load 900Kg
Recommended for Motorsport
Ring Gear Tooth count
Additional infotmation
Compatibility
Honda Civic Gen. VI | 1.8 16V (MB6) 1997.01-2001.02 B18C4 1797 Petrol 124 kW 169 BHP (1997.01 - 2001.02) 610 Motorsport Single Mass Flywheel
Honda Civic Gen. VI | 1.8 16V (MC2) 1998.04-2001.02 B18C4 1797 Petrol 124 kW 169 BHP (1998.04 - 2001.02) 610 Motorsport Single Mass Flywheel
Honda Civic Gen. VI | 1.6 VTEC Type R (EK9) 1997.08-2000.09 B16B 1595 Petrol 136 kW 185 BHP (1997.08 - 2000.09) 610 Motorsport Single Mass Flywheel
Honda Civic Gen. VI | 1.6 VTi (EK4) 1995.11-2001.02 B16A2 1595 Petrol 118 kW 160 BHP (1995.11 - 2001.02) 610 Motorsport Single Mass Flywheel
Honda Civic Gen. VI | 1.6 i Vtec (EM1) 1999.04-2000.12 B16A2 1595 Petrol 118 kW 160 BHP (1999.04 - 2000.12) 610 Motorsport Single Mass Flywheel
Honda CR-V Gen. I | 2.0 (RD1) 1999.04-2002.02 B20Z1 1973 Petrol 98 kW 133 BHP (1999.04 - 2002.02) 610 Motorsport Single Mass Flywheel
Honda CR-V Gen. I | 2.0 16V 4WD (RD1. RD3) 1995.10-2001.12 B20B 1973 Petrol 94 kW 128 BHP (1995.10 - 2001.12) 610 Motorsport Single Mass Flywheel
Honda CR-V Gen. I | 2.0 16V 4WD (RD1. RD3) 1999.01-2002.02 B20Z1 1973 Petrol 108 kW 147 BHP (1999.01 - 2002.02) 610 Motorsport Single Mass Flywheel
Honda Domani 1.8 (MA5) 1992.10-1997.12 B18B6 1834 Petrol 103 kW 140 BHP (1992.10 - 1997.12) 610 Motorsport Single Mass Flywheel
Honda Integra 1.8 (DC2) 1993.07-2001.11 B18B1 1834 Petrol 101 kW 137 BHP (1993.07 - 2001.11) 610 Motorsport Single Mass Flywheel
Honda Integra 1.8 (DC2) 1993.07-2001.11 B18B2 1834 Petrol 107 kW 146 BHP (1993.07 - 2001.11) 610 Motorsport Single Mass Flywheel
Honda Integra 1.8 SiR (DC2) 1993.09-2001.08 B18C 1797 Petrol 132 kW 180 BHP (1993.09 - 2001.08) 610 Motorsport Single Mass Flywheel
Honda Integra 1.8 Type-R (DC2) 1997.11-2001.10 B18C6 1797 Petrol 140 kW 190 BHP (1997.11 - 2001.10) 610 Motorsport Single Mass Flywheel
Honda Integra 1.8 Type-R (DC2) 1993.09-2001.08 B18C1 1797 Petrol 147 kW 200 BHP (1993.09 - 2001.08) 610 Motorsport Single Mass Flywheel
Honda Integra 1.8 VTiR (DC2) 1993.07-1999.11 B18C2 1797 Petrol 125 kW 170 BHP (1993.07 - 1999.11) 610 Motorsport Single Mass Flywheel
Honda Integra 1.8 VTiR (DC2) 1993.07-1999.11 B18C1 1797 Petrol 127 kW 173 BHP (1993.07 - 1999.11) 610 Motorsport Single Mass Flywheel
Honda Integra 1.8 ESI (DB7) 1993.09-2001.08 B18B2 1834 Petrol 107 kW 145 BHP (1993.09 - 2001.08) 610 Motorsport Single Mass Flywheel
Honda Integra 1.8 (DB7) 1993.09-2001.08 B18C3 1797 Petrol 147 kW 200 BHP (1993.09 - 2001.08) 610 Motorsport Single Mass Flywheel
Honda Integra 1.8 VTEC (DB8) 1993.09-2001.08 B18C 1797 Petrol 132 kW 180 BHP (1993.09 - 2001.08) 610 Motorsport Single Mass Flywheel
Honda Orthia / Partner 1.8 (EL1, EY4) 1995.10-2001.09 B18B6 1834 Petrol 103 kW 140 BHP (1995.10 - 2001.09) 610 Motorsport Single Mass Flywheel
Honda Orthia / Partner 2.0 (EL2) 1995.10-2001.09 B20B 1973 Petrol 110 kW 150 BHP (1995.10 - 2001.09) 610 Motorsport Single Mass Flywheel
Honda Orthia / Partner 2.0 4WD (EL3) 1995.10-2001.09 B20B 1973 Petrol 110 kW 150 BHP (1995.10 - 2001.09) 610 Motorsport Single Mass Flywheel
