1 1

ACS

KHN18629-2E

KHN18629-2E

€3.628,04 EUR
€3.628,04 EUR
Sale Sold out

-2E

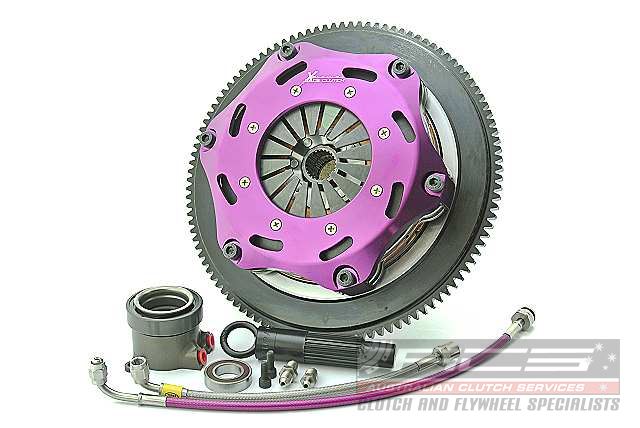

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.
  Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1060Nm 1210Nm
Bearing Contact Diameter 44-52mm 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm 5mm
Assembly Mass (without flywheel) 4.45kg 4.45kg
Disc Set Static Mass 1.1kg
Friction Thickness New 6.35mm (0.250") 6.35mm (0.250")
Friction Thickness Worn 5.97mm (0.235") 5.97mm (0.235")

Product Features:

  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design
Clutch Disc Diameter (mm) 184
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 26.2
Torque (Nm) 1220
Flywheel Step
Design Twin Plate
Stage Multiplate - track use only
Tech Bulletins
Clamp Load 900Kg
Recommended for Motorsport
Ring Gear Tooth count
Additional infotmation
Compatibility
Honda S2000 2.0 VTEC (AP1) 1999.06- F20C 1997 Petrol 177 kW 240 BHP (1999.06 - ) 1220 Motorsport Single Mass Flywheel
Honda S2000 2.0 VTEC 1999.03-2003.10 F20C1 1997 Petrol 170 kW 231 BHP (1999.03 - 2003.10) 1220 Motorsport Single Mass Flywheel
Honda S2000 2.0 VTEC (AP1) 2003.10- F20C3 1997 Petrol 184 kW 250 BHP (2003.10 - ) 1220 Motorsport Single Mass Flywheel
Honda S2000 2.2 VTEC (AP2) 2003.10- F22C1 2156 Petrol 176 kW 239 BHP (2003.10 - ) 1220 Motorsport Single Mass Flywheel
