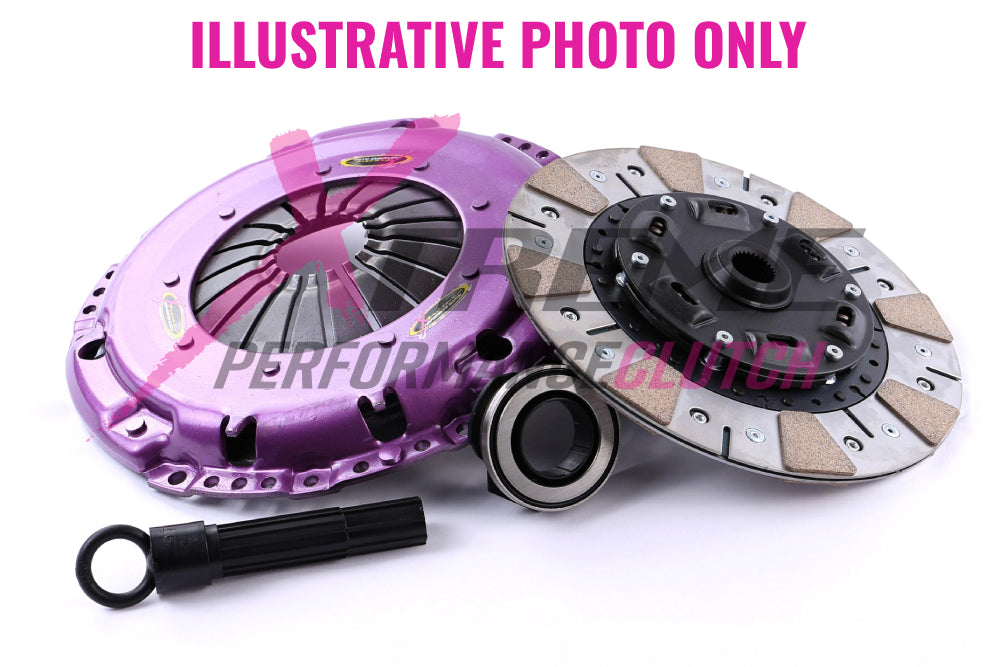

Xtreme Performance - Cushioned Ceramic kit /-1C
Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:
  • Torque capacity 490Nm
  • Clamp load 650Kg 50% Increased over standard
  • Cushioned Ceramic Friction Disc
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Clutch Disc Diameter (mm) 220
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 26
Torque (Nm) 490
Flywheel Step -.4mm/.015""
Design Single Plate
Stage Stage 2
Tech Bulletins
Clamp Load 650Kg (50% inc.)
Recommended for Track - Stage 2
Ring Gear Tooth count
Additional infotmation
Compatibility
Honda Prelude BA | 2.0 i EX 16V (BA4) 1987.10-1991.12 B20A6 1958 Petrol 106 kW 144 BHP (1987.10 - 1991.12) 26mm Spline Diameter 490 Track Use Not included
Honda Prelude BA | 2.0 (BA4) 1987.08-1992.01 B20A4 1958 Petrol 84 kW 114 BHP (1987.08 - 1992.01) 26mm Spline Diameter 490 Track Use Not included
