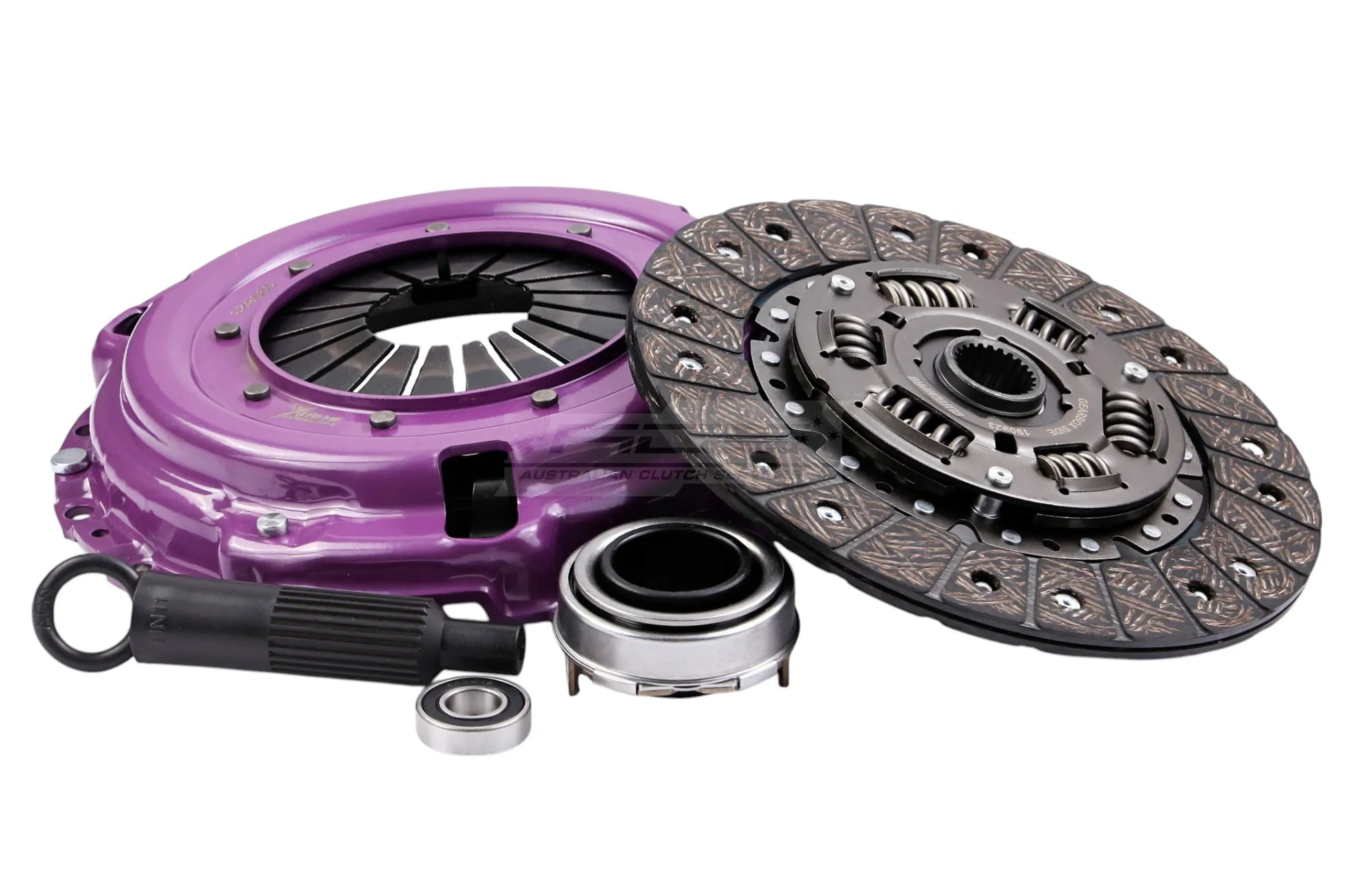

KHN22016-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

• Torque capacity 290Nm

• Clamp load Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	220
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	26
Torque (Nm)	290
Flywheel Step	+2.75mm/.108""
Design	Single Plate
Stage	Stage 1
Tech Bulletins
Clamp Load
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Honda	Integra	1.6 (DA6, DA8)	1989.09-1993.08	B16A 1595 Petrol 125 kW 170 BHP (1989.09 - 1993.08)	Suits vehicles manufactured from 11/1992.	290	Street Upgrade	Not included
Honda	Integra	1.8 (DA9)	1989.06-1993.07	B18A1, B18B1 1834 Petrol 96 kW 131 BHP (1989.06 - 1993.07)	Suits vehicles manufactured from 02/1992.	290	Street Upgrade	Not included
Honda	Integra	1.6 (DA6)	1989.09-1993.08	B16A 1595 Petrol 125 kW 170 BHP (1989.09 - 1993.08)	Suits vehicles manufactured from 11/1992.	290	Street Upgrade	Not included
