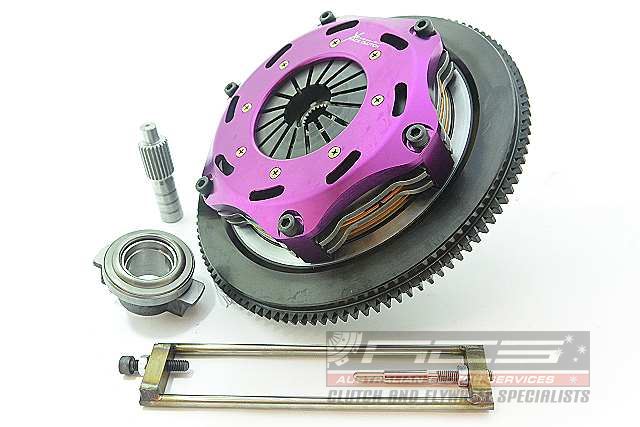

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
| Clutch Disc Diameter (mm) | 184 |
| Clutch Disc Spline Count | 23 |
| Clutch Disc Spline Diameter (mm) | 26 |
| Torque (Nm) | 1220 |
| Flywheel Step | +2.5mm |
| Design | Twin Plate |
| Stage | Multiplate - track use only |
| Tech Bulletins | |
| Clamp Load | 900Kg |
| Recommended for | Motorsport |
| Ring Gear Tooth count | |
| Additional infotmation |
| Compatibility | ||||||||
|---|---|---|---|---|---|---|---|---|
| Mitsubishi | Lancer | EVO VIII - 260 (CT9A) | 2004.03-2005.07 | 4G63 Turbo 1997 Petrol 195 kW 265 BHP (2004.03 - 2005.07) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO VII (CT9A) | 2001.01-2003.01 | 4G63 Turbo 1997 Petrol 200 kW 272 BHP (2001.01 - 2003.01) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO (CT9W) | 2005.09-2007.03 | 4G63 Turbo 1997 Petrol 200 kW 272 BHP (2005.09 - 2007.03) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO IV (CN9A) | 1996.08-1997.12 | 4G63 Turbo 1997 Petrol 206 kW 280 BHP (1996.08 - 1997.12) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO VI (CP9A) | 1999.01-2001.02 | 4G63 Turbo 1997 Petrol 207 kW 281 BHP (1999.01 - 2001.02) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO V (CP9A) | 1998.01-1998.12 | 4G63 Turbo 1997 Petrol 206 kW 280 BHP (1998.01 - 1998.12) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO VII (CT9A) | 2001.01-2003.01 | 4G63 Turbo 1997 Petrol 206 kW 280 BHP (2001.01 - 2003.01) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO IX (CT9A) | 2005.01-2007.09 | 4G63 Turbo 1997 Petrol 206 kW 280 BHP (2005.01 - 2007.09) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO VIII (CT9A) | 2003.04-2005.03 | 4G63 Turbo 1997 Petrol 206 kW 280 BHP (2003.04 - 2005.03) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO IX (CT9A) | 2005.08-2006.09 | 4G63 Turbo 1997 Petrol 213 kW 290 BHP (2005.08 - 2006.09) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO VIII - FQ-300 (CT9A) | 2003.04-2004.04 | 4G63 Turbo 1997 Petrol 225 kW 305 BHP (2003.04 - 2004.04) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO IX - FQ-300 (CT9A) | 2005.06-2006.12 | 4G63 Turbo 1997 Petrol 227 kW 309 BHP (2005.06 - 2006.12) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO VIII - FQ-300 (CT9A) | 2003.04-2004.04 | 4G63 Turbo 1997 Petrol 227 kW 309 BHP (2003.04 - 2004.04) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO VIII - FQ-320 (CT9A) | 2004.04-2006.08 | 4G63 Turbo 1997 Petrol 243 kW 331 BHP (2004.04 - 2006.08) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO VIII - FQ-330 (CT9A) | 2003.10-2006.08 | 4G63 Turbo 1997 Petrol 246 kW 335 BHP (2003.10 - 2006.08) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO VIII - FQ-340 (CT9A) | 2004.04-2005.03 | 4G63 Turbo 1997 Petrol 255 kW 347 BHP (2004.04 - 2005.03) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO IX - FQ-340 (CT9A) | 2005.06-2007.12 | 4G63 Turbo 1997 Petrol 257 kW 350 BHP (2005.06 - 2007.12) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO IX - FQ-360 (CT9A) | 2006.07-2007.12 | 4G63 Turbo 1997 Petrol 273 kW 371 BHP (2006.07 - 2007.12) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO VIII - FQ-400 (CT9A) | 2004.10-2006.08 | 4G63 Turbo 1997 Petrol 302 kW 411 BHP (2004.10 - 2006.08) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
| Mitsubishi | Lancer | EVO V - RS450 Ralliart (CP9A) | 1998.01-1998.06 | 4G63 Turbo 1997 Petrol 336 kW 456 BHP (1998.01 - 1998.06) | Pull to Push Type Conversion | 1220 | Motorsport | Single Mass Flywheel |
