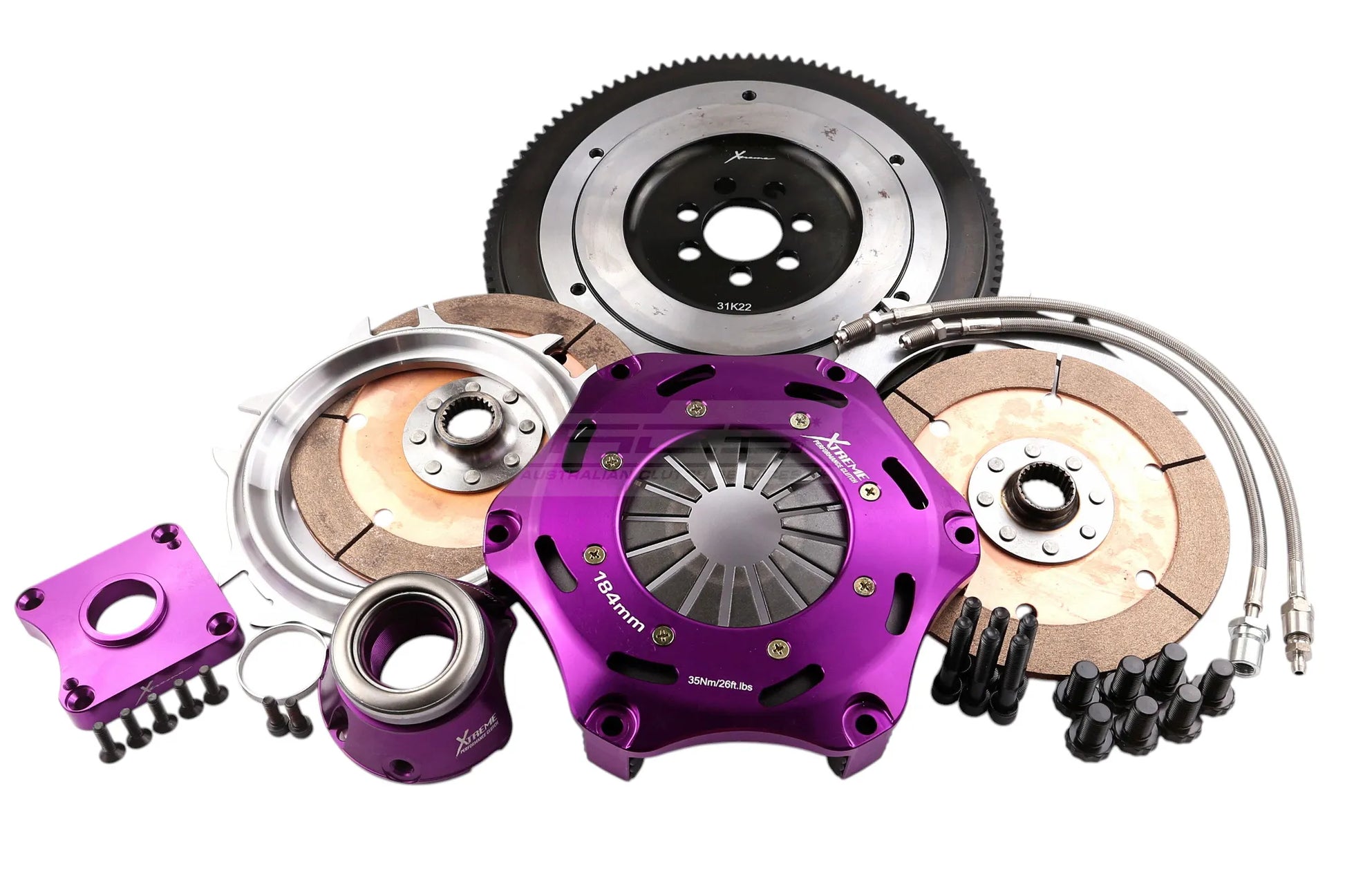

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.
  Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1060Nm 1210Nm
Bearing Contact Diameter 44-52mm 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm 5mm
Assembly Mass (without flywheel) 4.45kg 4.45kg
Disc Set Static Mass 1.1kg
Friction Thickness New 6.35mm (0.250") 6.35mm (0.250")
Friction Thickness Worn 5.97mm (0.235") 5.97mm (0.235")

Product Features:

  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design
Clutch Disc Diameter (mm) 184
Clutch Disc Spline Count 23
Clutch Disc Spline Diameter (mm) 26
Torque (Nm) 1220
Flywheel Step +2.5mm
Design Twin Plate
Stage Multiplate - track use only
Tech Bulletins
Clamp Load
Recommended for Motorsport
Ring Gear Tooth count
Additional infotmation
Compatibility
Mitsubishi Lancer 2.0 i Ralliart 4WD (CY4A) 2008.10- 4B11-T/C 1998 Petrol 177 kW 241 BHP (2008.10 - ) Pull To Push Type Hydraulic Conversion 1220 Motorsport Single Mass Flywheel
Mitsubishi Lancer 2.0 Ralliart 4WD (CX4A) 2008.10- 4B11-T/C 1998 Petrol 177 kW 241 BHP (2008.10 - ) Pull To Push Type Hydraulic Conversion 1220 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO X (CZ4A) 2007.10-2008.10 4B11-T/C 1998 Petrol 206 kW 280 BHP (2007.10 - 2008.10) Pull To Push Type Hydraulic Conversion 1220 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO X (CZ4A) 2008.06-2015.12 4B11-T/C 1998 Petrol 217 kW 295 BHP (2008.06 - 2015.12) Pull To Push Type Hydraulic Conversion 1220 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO X (CZ4A) 2008.06-2015.03 4B11-T/C 1998 Petrol 221 kW 301 BHP (2008.06 - 2015.03) Pull To Push Type Hydraulic Conversion 1220 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO X (CZ4A) 2014.09-2015.12 4B11-T/C 1998 Petrol 226 kW 307 BHP (2014.09 - 2015.12) Pull To Push Type Hydraulic Conversion 1220 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO X (CZ4A) 2015.04-2016.05 4B11-T/C 1998 Petrol 230 kW 313 BHP (2015.04 - 2016.05) Pull To Push Type Hydraulic Conversion 1220 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO X - FQ400 (CZ4A) 2009.05-2010.12 4B11-T/C 1998 Petrol 301 kW 409 BHP (2009.05 - 2010.12) Pull To Push Type Hydraulic Conversion 1220 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO X - FQ440 (CZ4A) 2014.05-2014.06 4B11-T/C 1998 Petrol 328 kW 446 BHP (2014.05 - 2014.06) Pull To Push Type Hydraulic Conversion 1220 Motorsport Single Mass Flywheel
